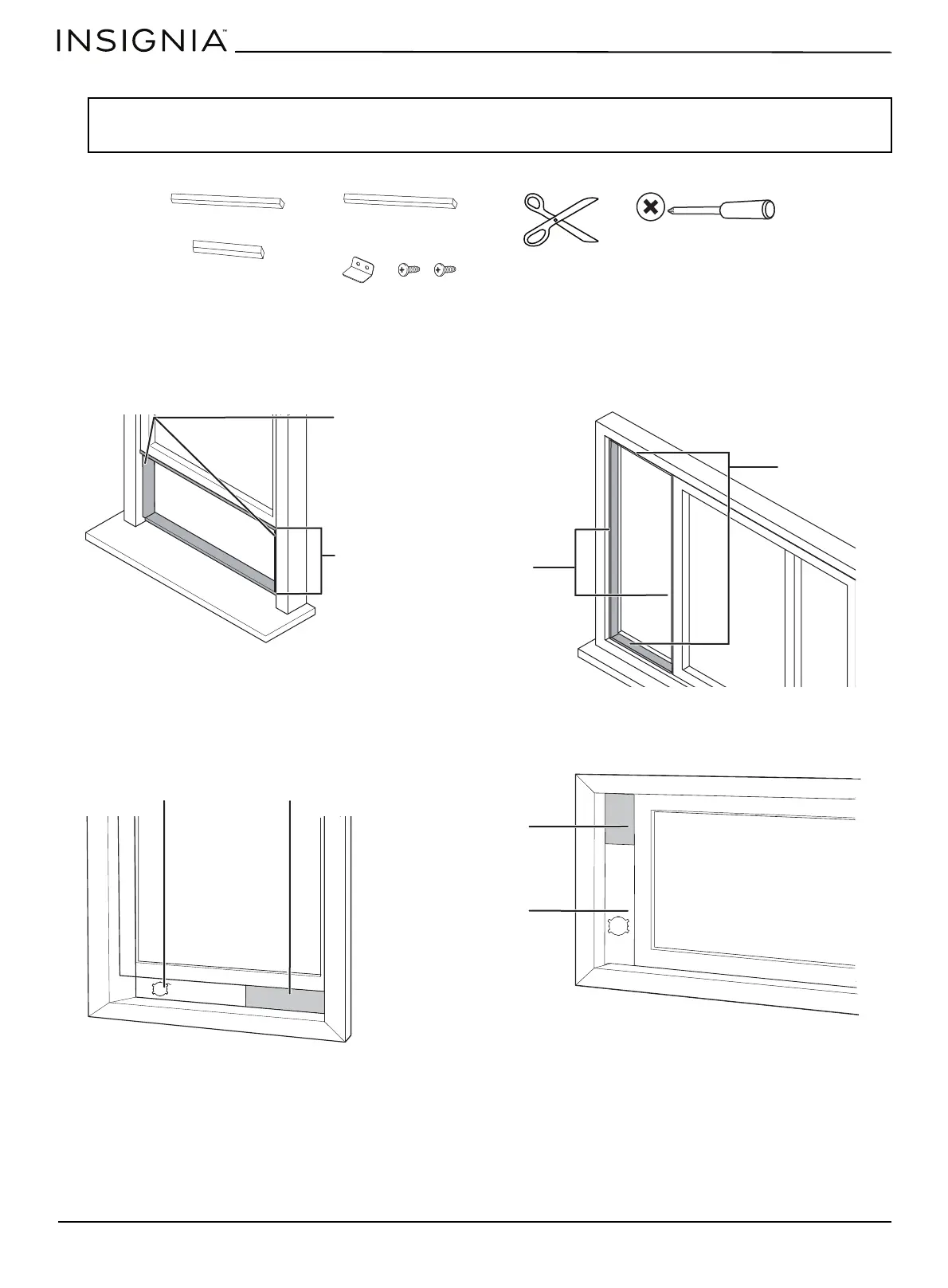

STEP 3: Preparing the window frame and sash
You need
1 Cut the adhesive foam seals A and B to fit the window frame and sash.
2 Remove the seal backings, then press the adhesive sides onto the frame and sash.
3 Insert the assembled window slide into the window.
Note:
• If you are installing your air conditioner in a window that opens vertically (a hung window), install the slides horizontally.
• If you are installing your air conditioner in a window that opens horizontally (a sliding window), install the slides vertically.
Non-adhesive foam seal C
(2)
Security bracket and
screws (optional) (1)
Adhesive foam seal A (4)
Adhesive foam seal B (2)
Scissors or knife
(not included)
Phillips screwdriver
(not included)
Adhesive foam
seal B
Adhesive foam
seal A
Hung window
Sliding window
Adhesive foam
seal A
Adhesive foam
seal B
Window slide A Window slide B
Window slide B
Window slide A
Hung window
Sliding window
