7
NS-AC10PWH9 / NS-AC12PWH9 / NS-AC10PWH9-C / NS-AC12PWH9-C
www.insigniaproducts.com

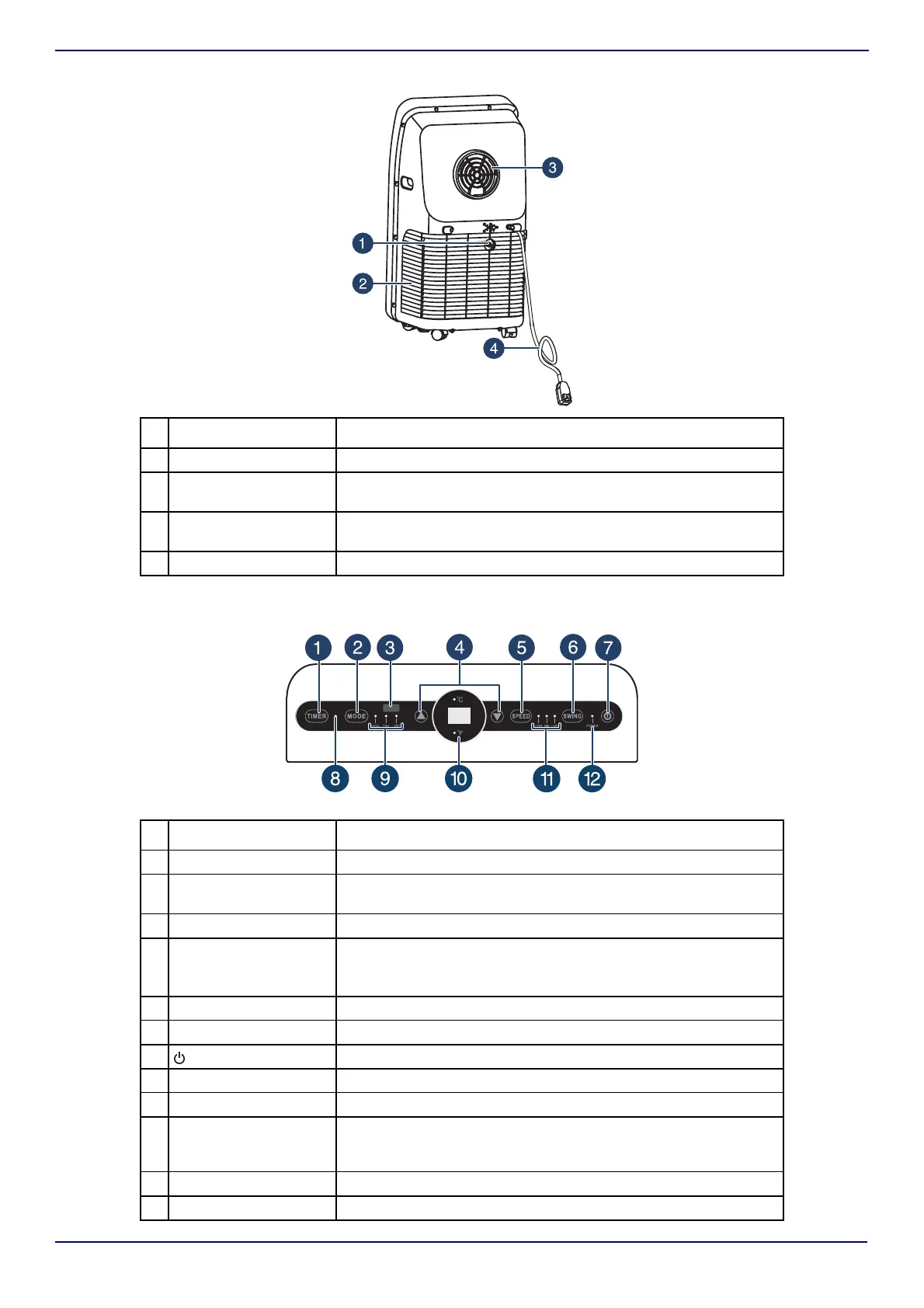

Back
Control panel
#ITEM DESCRIPTION
1 Drain outlet Use to drain the condensation from the air conditioner.
2Filter and filter case
Remove the filter from this case to clean it at least every two weeks.
See “Cleaning the air filter” on page 15.
3Exhaust outlet
Allows warm air to exit the back of the air conditioner into the
exhaust hose. Do not block.
4 Power cord Plug this in to a 120V 60 Hz AC outlet to power your air conditioner.
#ITEM DESCRIPTION
1 TIMER button Press to set the air conditioner to turn on or off automatically.
2MODE button
Press to cycle the air conditioner through the available modes.
Options include COOL, FAN, and DRY.
3 Remote control receiver Receives signals from the remote control. Do not block.
4
(TEMP/TIMER)
buttons
COOLING mode: Press to raise or lower the temperature setting.
Press at the same time to change from Fahrenheit to Celsius.
TIMER mode: Press to increase or decrease the time.
5 SPEED button Press to select high, mid, or low speed.
6 SWING button Press to turn oscillation on or off.
7 Power button Press to turn the air conditioner on or off.
8 Timer indicator Lights when the timer is turned on.
9 Mode indicators Light to show the air conditioner mode.
10
LED display
Temperature/Time
display
Shows the temperature and time left on the timer.
11 Fan speed indicators Light to show the fan’s speed.
12 Power indicator Lights when the air conditioner is turned on.
