10
NS-BC48SS7/NS-BC84SS7/NS-BC120SS7/ NS-BC120BS8
www.insigniaproducts.com

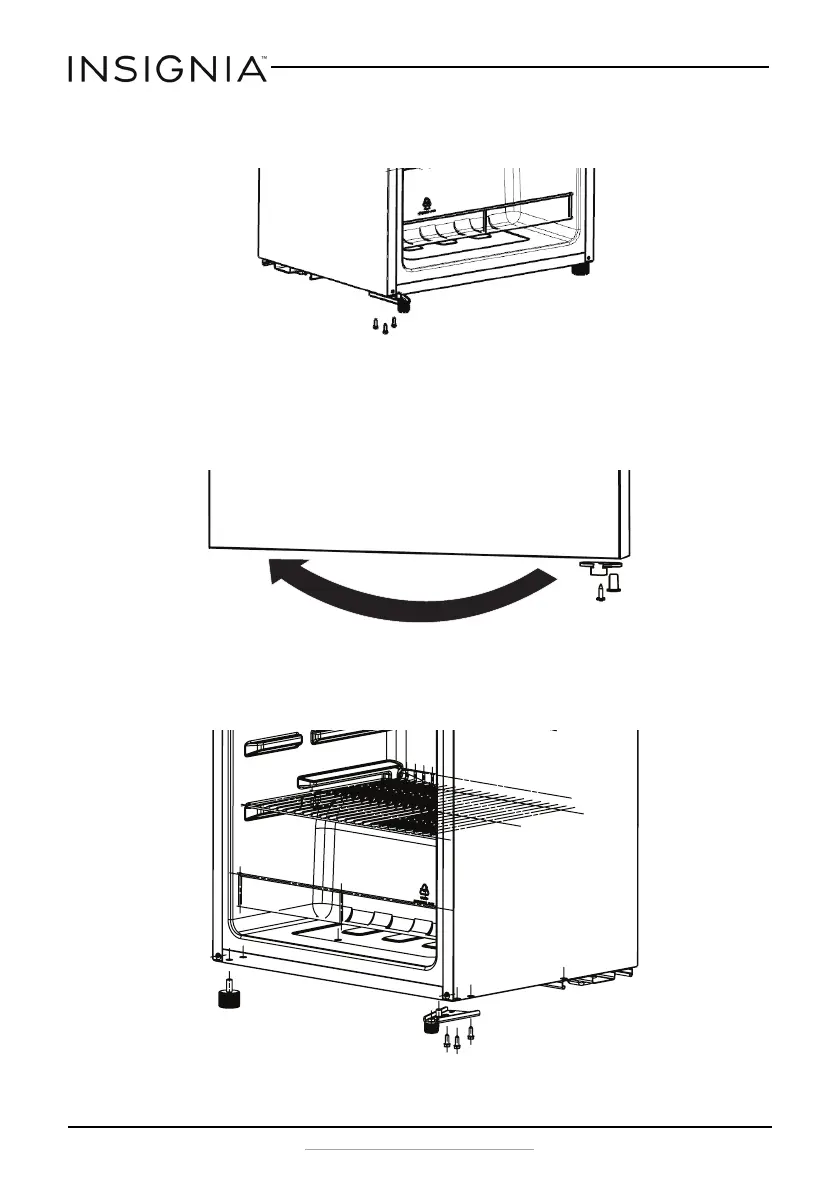

4 Remove the three screws that hold the bottom hinge to the lower part
of the cabinet.
5 Re-install the bottom hinge on the left corner of the cabinet.
6 On bottom edge of the door, transfer door stop bracket and bushing
to holes on opposite side.
7 Place the bottom left corner of the door onto the lower hinge, then
install the top hinge onto cabinet. Make sure the door is level and it
seals properly against cabinet, then securely fasten the three screws.
8 Snap the top cap back onto the hinge.
