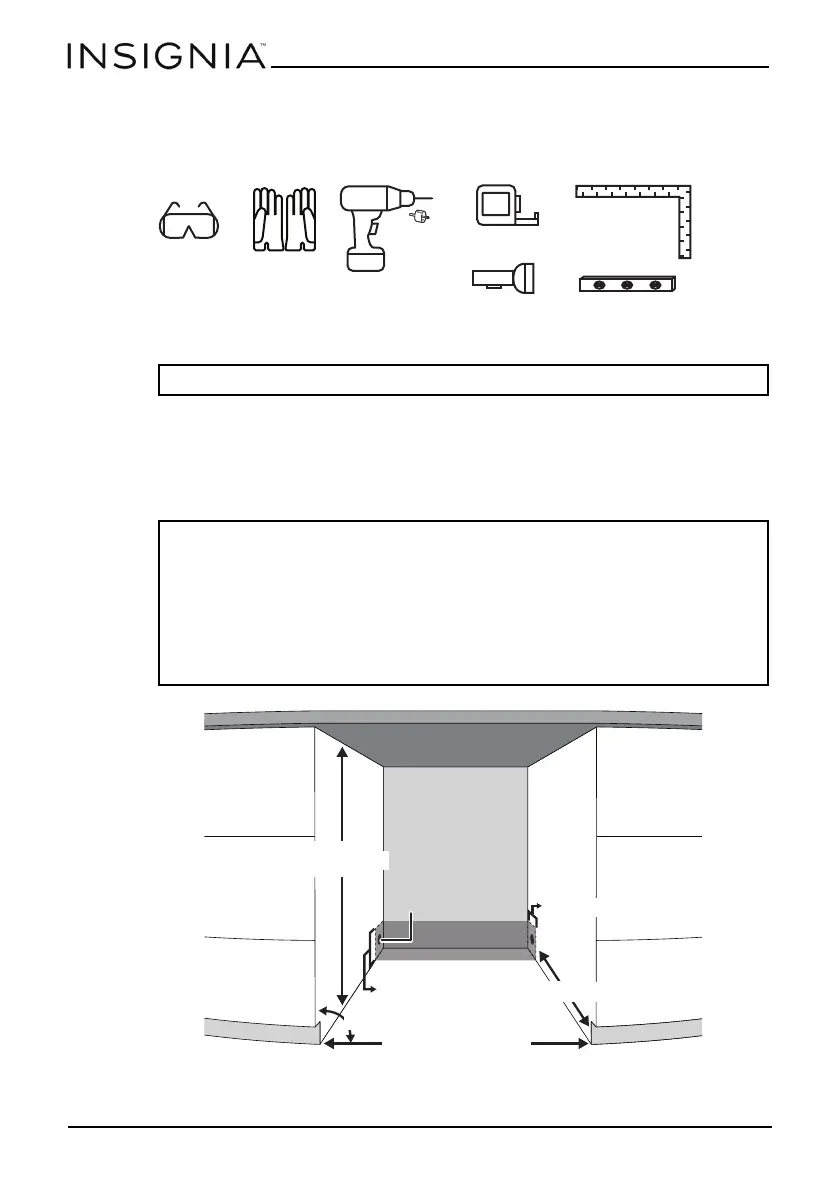

Building in your wine cooler
Required tools
Preparing the enclosure
We do not recommend that you install your cooler into a corner or directly
beside a wall. The door needs to be opened more than 90° to allow full
extension of the shelves. If it is necessary to place the unit next to a wall or in
a corner, leave at least 2.4 - 4 in. (6 -10 cm) between the wall and the
appliance to allow for the door opening.
CAUTION: Wear gloves and safety goggles during installation.
Notes:
• The indicated depth requirement assumes that the electrical outlet is located
in the adjacent cabinet or is flush mounted (not surface mounted) in the rear
wall of the enclosure.
• If the electrical outlet is located inside an adjacent cabinet, cut a 1.5 in.
(3.8 cm) diameter hole to route the power cord. If the cabinet wall is metal,
the hole edge must be covered with a bushing or grommet to protect the
cord.
Safety goggles
Gloves
Electric drill with 1.5
in. (38 mm) hole bit
Flashlight
Carpenter
square
Level
Tape measure
1.5 in. (3.8 cm) diameter
(if electrical outlet is in adjacent
cabinet)
2 in. (5 cm)
25 in. (63.5 cm) min.
35 in. (88.9 cm) min.
6 in. (15.2 cm)
90°
24 in. (61 cm) min.
