Top Control Dishwasher
8 Replace the junction box cover on the right front of the dishwasher. Be sure that the wires are not pinched under the
cover.

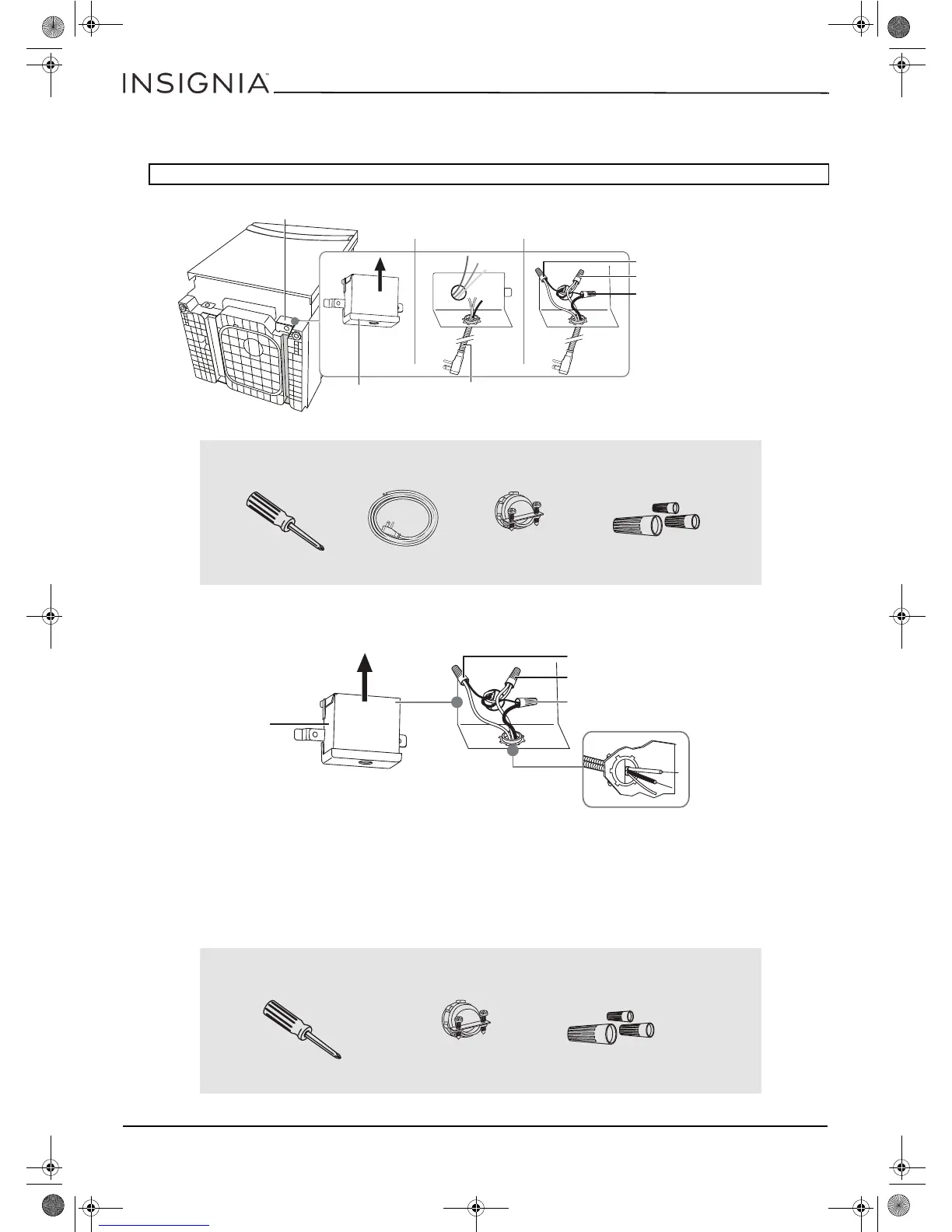

Direct wiring
1 Remove the junction box cover from the power supply junction box on the wall.
2 Locate the three dishwasher wires, (white, black, and green) with stripped ends, then insert the dishwasher wires
through the small hole in the junction box.
3 Secure the house wiring to the bottom of the junction box with a strain relief fitting.
4 Use wire nuts to connect incoming ground to green, white to white, and black to black.
5 Replace the junction box cover. Make sure that no wires are pinched under the cover.
Note:
If you have trouble replacing the junction box cover, loosen the screws on the strain relief.
You’ll need:
You’ll need:
Junction box
Junction
box
Power cord
Black to black
White to white
Ground to green
Phillips screwdriver
Three wire nuts
(UL listed)
Strain relief (for
electrical connections)
Power cord
Junction box
White to white
Black to black
Ground to green
Insert wires through strain relief fitting and tighten
Phillips screwdriver
Three wire nuts
(UL listed)
Strain relief (for
electrical connections)
