Insignia NS-DWH1SS9 Installation Guide

www.insigniaproducts.com
8
Top Control Dishwasher
Power Cord Method
• Install a 3-prong grounding type receptacle. The wall outlet can be installed in a cabinet or on a wall adjacent to the
undercounter space in which the dishwasher is to be installed.
• Use power cord kit (part number 5304504505) under Smart Choice brand marked with Dishwasher Install Kit With
Power Cord, available for purchase from an authorized store. The power cord and connections must comply with local
codes and ordinances.
• The recommended power cord length is 54 in. (1.4 m) min. and 64 in. (1.6 m) max.

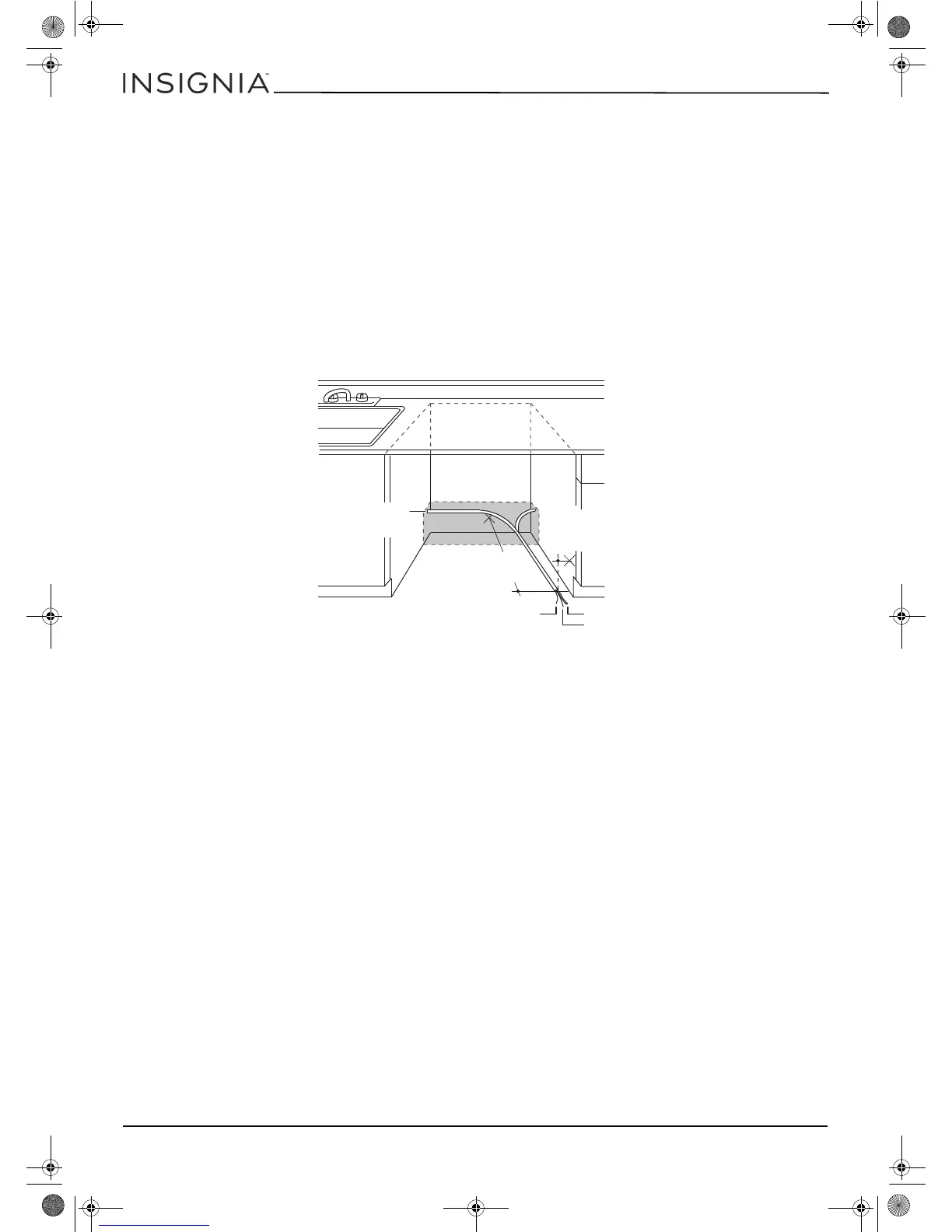

Cabinet preparation and wire routing
• The wiring may enter the opening from either side, the rear, or the floor within the shaded area.
• The electrical connection is on the front right of the dishwasher.
• Drill a 1.5 in. (3.81 cm) maximum diameter hole to run the electrical cable through the wall of the cabinet.
• The hole must be free of sharp edges. If the cabinet wall is metal, the hole edge must be covered with a bushing or
rubber grommet.
• Cable direct connections may pass through the same hole as the drain hose and hot water line, but power cords with
plugs must pass through a separate hole.
24 in. (60.96 cm)
from wall
1.5 in. (3.81 cm)
diameter hole (max.)
Ground
Black
White
2.5–3.5 in. (6.5–9.0 cm)
from cabinet
NS-DWH2_BS8_SS8_NS-DWR2_BS8_WH8_SS8_17-0939_Install MAN_V5_ENG.fm Page 8 Wednesday, January 24, 2018 2:49 PM
