www.insigniaproducts.com
5
NS-PMMD22
Installation instructions

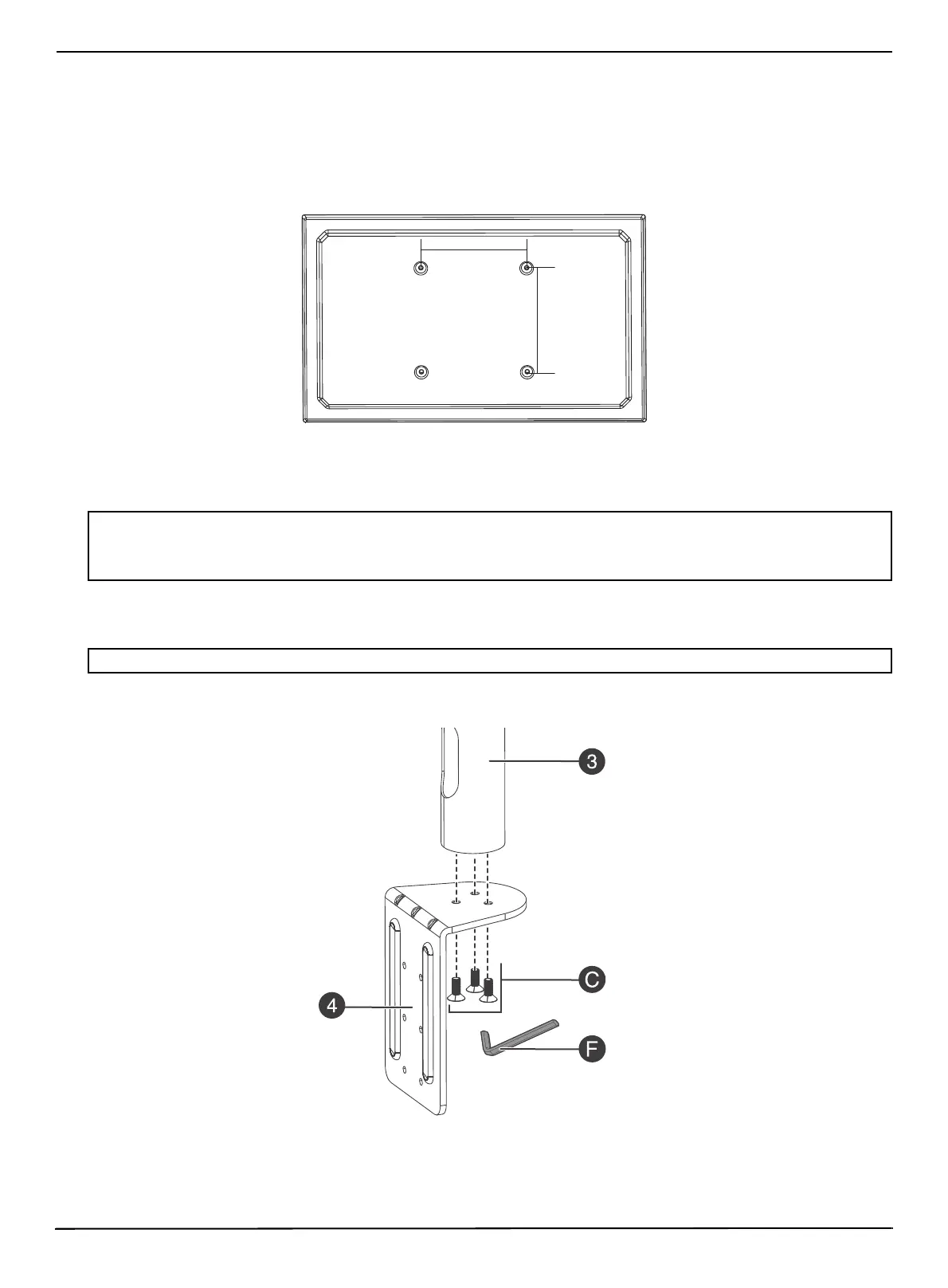

STEP 1: Preparing your monitors
1 Make sure that your monitors have screw holes on the backs for VESA mounting. You can use monitors with VESA
mounting patterns of 75 × 75 mm (3 × 3") or 100 × 100 mm (3.9 × 3.9").
2 Remove the bases or stands from your monitors.
STEP 2: Attaching your monitor mount to a desktop edge
Select the position on the desk where you want your monitor mount installed. Make sure that there is enough room for
your monitors. The desk should be between .8 in. (2 cm) and 3.9 in. (10 cm) thick and strong enough to bear the weight of
your monitors.
1 Align the support tube (3) bottom with the three holes in the support base (4), then secure the tube using three
M6 × 20 mm screws (C). Tighten the screws using the 4 x 4 Allen wrench (F).
Notes:
• Make sure that the tabletop or desktop is square or rectangular. Your mount may not fit securely to an oval or irregularly shaped
surface.
• Make sure that the tabletop or desktop thickness is between .8 and 3.9 inches (2 and 10 cm).
Note: You need a Phillips screwdriver for this step.
75 × 75 mm (3 × 3") or
100 × 100 mm (3.9 × 3.9")
75 × 75 mm (3 × 3") or
100 × 100 mm (3.9 × 3.9")
