10-Cycle Electric and Gas Dryers
INSTALLATION INSTRUCTIONS
For best results, the static pressure in any exhaust system should be between 0.3
to 0.8 inches of water column, and it cannot be less than 0 under any
circumstances with an installed duct with a four inch diameter.
Electric requirements
Electrical connections
An individual branch (or separate) circuit serving only your dryer is recommended.
DO NOT USE AN EXTENSION CORD.

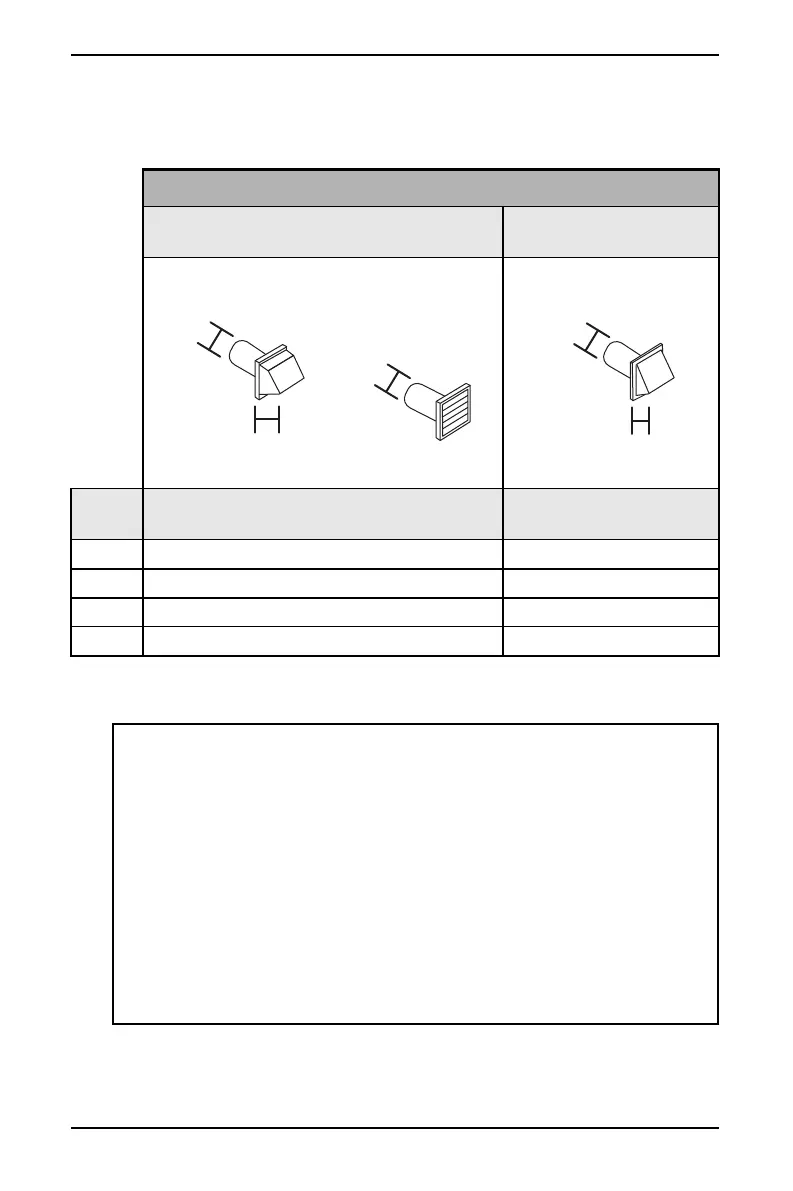

WEATHER HOOD TYPES
Recommended Use only for short-run
installation
# of 90°
elbows
Rigid Metallic Rigid Metallic
0 90 ft. (27.4 m) 60 ft. (18.3 m)
1 60 ft. (18.3 m) 45 ft. (13.7 m)
2 45 ft. (13.7 m) 35 ft. (10.7 m)
3 35 ft. (10.7 m) 25 ft. (7.6 m)
WARNING:
The wiring diagram is located on the back panel of your dryer.
• Incorrectly connecting your dryer’s grounding conductor can result in electric
shock. Check with a qualified electrician or serviceman if you are in doubt as to
whether your dryer is correctly grounded.
• Do not modify the plug provided with your dryer. If the plug does not fit the
outlet, have the correct type outlet installed by a qualified electrician.
• To prevent unnecessary risk of fire, electrical shock, or personal injury, all
wiring and grounding must be done in accordance with local codes, or in the
absence of local codes, with the National Electrical Code, ANSI/NFPA No. 70 -
Latest Revision (for the U.S.) or the Canadian Electrical Code CSA C22.1-Latest
Revisions and local codes and ordinances (for Canada).
• You are responsible for providing adequate electrical services for your dryer.
• All gas installations must be done in accordance with the latest revision of
National Fuel Code ANSI Z223.1/NFPA 54 (for US) or CSA B149.1 (for Canada)
and local codes and ordinances.
4
i
n
.
(
1
0
.
2
c
m
)
4 in.
(10.2 cm)
4
i
n
.
(
1
0
.
2
c
m
)
4
i
n
.
(
1
0
.
2
c
m
)
2.5 inch. (6.4
cm)
