10-Cycle Electric and Gas Dryers
INSTALLATION INSTRUCTIONS
Electric models
Installing your dryer
Tools you will need
Materials you will need
• 3/8” gas dryer gas line (Gas model only)
• 3- or 4-prong (dependent on owner’s house) electric power cord (electric
model only)
• Phillips screwdriver
•Exhaust dryer vent kit
WARNING:
• For products sold in the U.S., your dryer has an optional cord with an
equipment-grounding conductor and a grounding plug, which is sold
separately.
• For products sold in Canada, your dryer is equipped with a cord having an
equipment-grounding conductor and a grounding plug.
• The plug must be plugged into an appropriate outlet that is properly installed
and grounded in accordance with all local codes and ordinances.
• If a power cord is not used and the electric dryer is to be permanently wired,
this appliance must be connected to a grounded metal, permanent wiring
system, or an equipment-grounding conductor must be run with the circuit
conductors and connected to the equipment-grounding terminal or lead on
the appliance.
WARNING:
• Improper connection of the equipment-grounding conductor can result in a
risk of electric shock. Check with a qualified electrician or service
representative or personnel, if you are in doubt as to whether the appliance is
properly grounded.
• Certain internal parts are intentionally not grounded and may present a risk
of electric shock only during servicing. Service Personnel - Do not contact the
following parts while the appliance is energized: Control Board and
Temperature-Regulating Thermistor (Located on the Blower Housing ).
Important: We recommend that you use a qualified installer to install your
dryer.

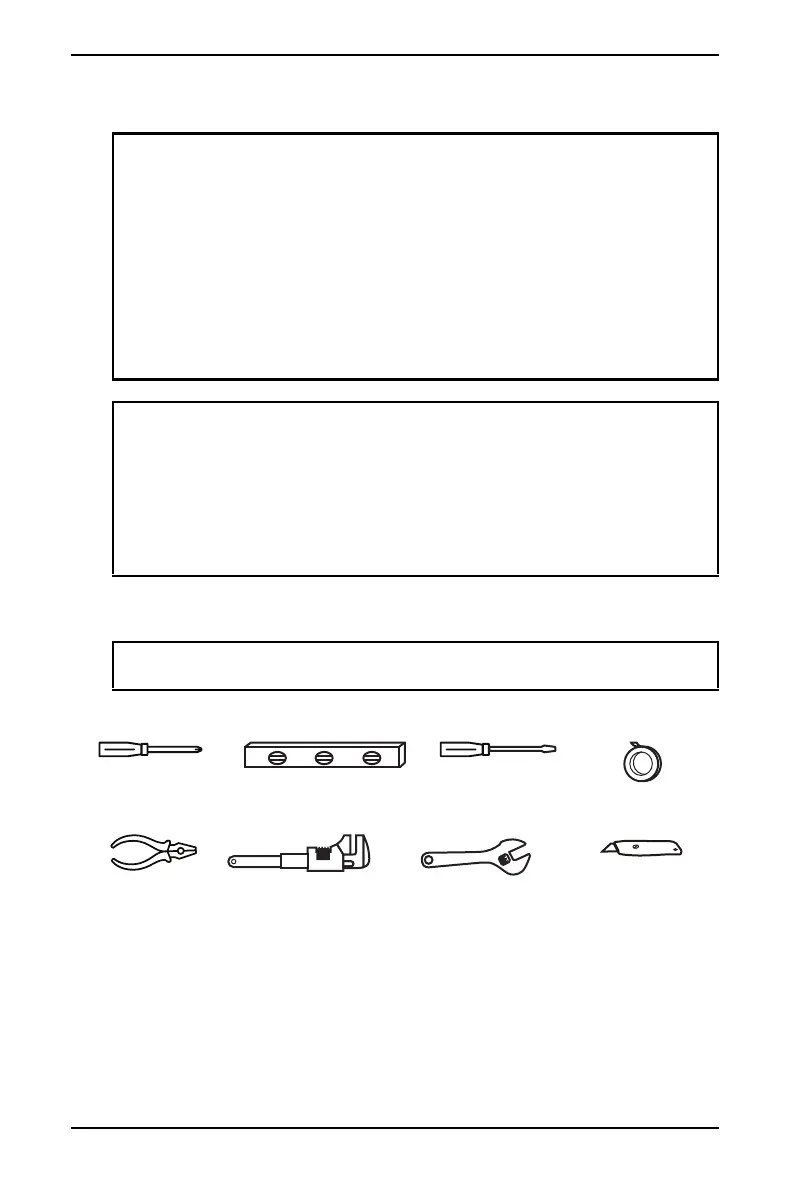

Pliers
Phillips screwdriver
Level
Duct tape
Adjustable wrench that opens
to 1" (2.5 Cm)
Cutting knife
Flat-head screwdriver
Pipe wrench
To Next Page
