C6.1 Sequential start

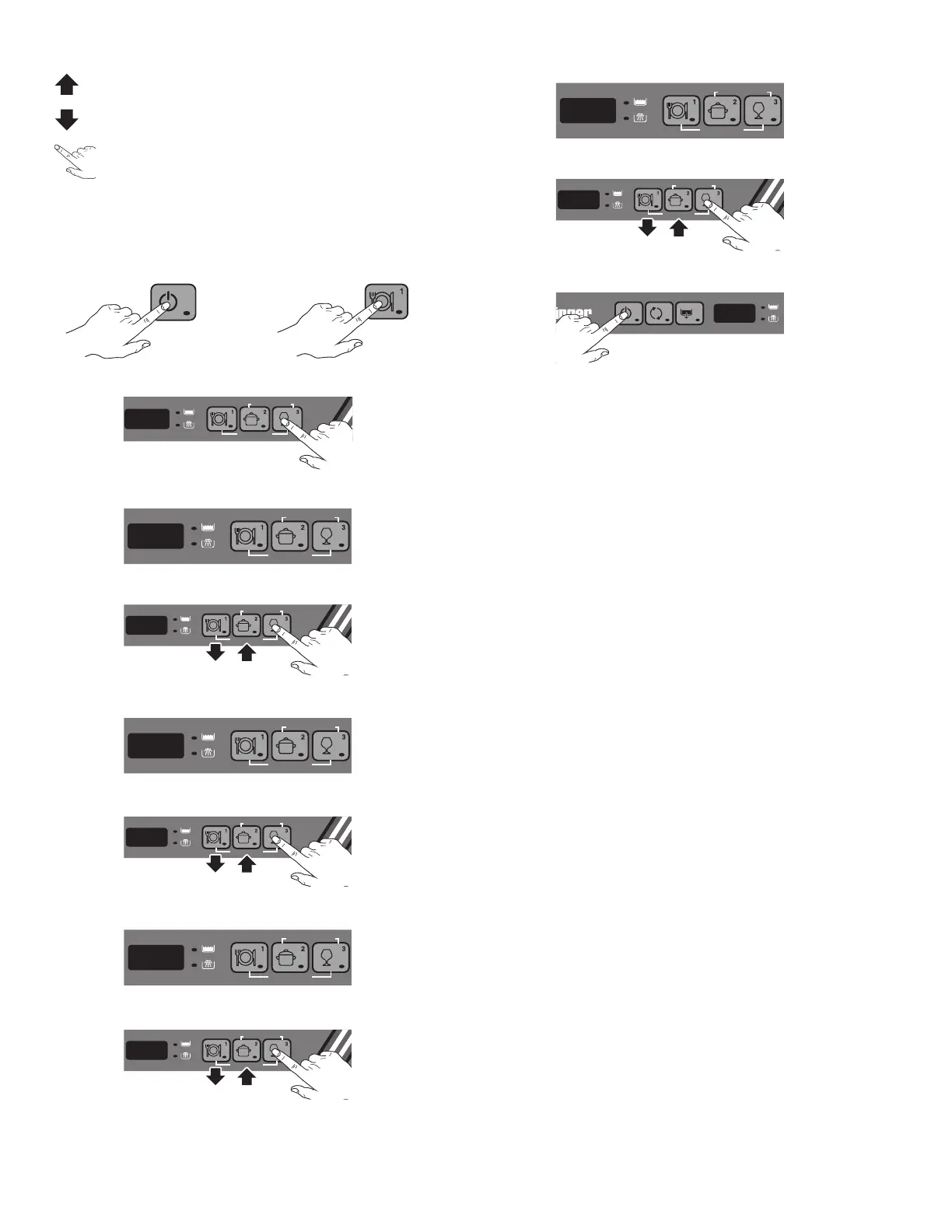

Press the indicated buttons simultaneously for 5
seconds:
Display of programming mode:
Initial amount of detergent:
Setting the activation time:
Initial amount of rinse-aid:
Setting the activation time:
Amount of detergent during the cycle:
Setting the activation time:
Amount of rinse-aid during the cycle:
Setting the activation time:
Exit from programming mode:
Notes for external dispensers:
-if
 the detergent dispenser only oper-
ates during wash pump operation; terminals 7 and 9
of the main terminal box are powered at the same
time.
-if
 the detergent dispenser only oper-
ates during filling electrovalve operation for restor-
ing the booster level; terminals 7 and 9 of the main
terminal box are powered at the same time.
-if
 the rinse-aid dispenser only operates
du
ring filling electrovalve operation for restoring th
e
bo
oster level; terminals 8 and 9 of the main termin
al
bo
x are powered at the same time.
-if
 the rinse-aid dispenser only operates
du
ring wash pump operation; terminals 8 and 9
of
the ma
in terminal box are powered at the same time.
For connections, see the wiring diagram.
Example:
Supposing that an external detergent dispenser has
been connected with a tank concentration measuring
sensor, a standard setting could be as follows:
 the dispenser is not activated during filling of
the tank
 the dispenser is activated during wash
pump operation and, thanks to the concentration mea-
sured by the conduction sensor, the correct amount of
detergent is dispensed.
Suggestion: to check the effectiveness of the rinse-aid,
look at freshly washed glasses against the light. Drops of
water remaining on the glass indicate an insufficient
amount, while streaks on glass indicate an excess
amount.
LEGEND
Increase
Decrease
Confirm or select next parameter
