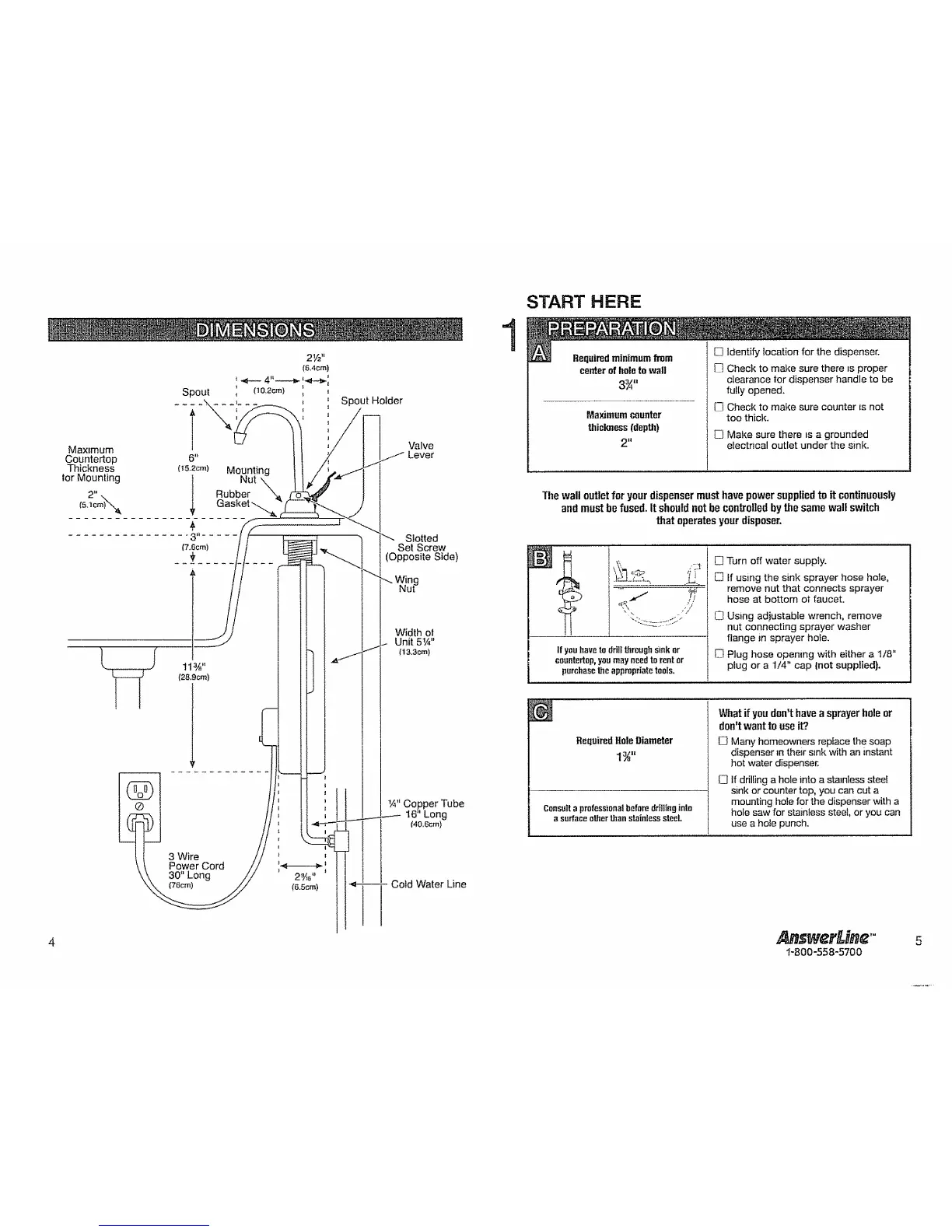

Spout Holder
Valve
Lever
Slotted
Set Screw
(Opposite Side)
Wing
Nut
Width ot
Unit 5W'
It3,3cm)
W' Copper Tube
16" Long
_40,6cm)
Cold Water Line
1
START HERE
Required minimum from
center of hole to wall
33/4n
Maximum counter
thickness (depth)
2"
D Identify location for the dispenser.
[] Check to make sure there Is proper
clearance tor dispenser handle to be
fully opened.
El Check to make sure counter is not
too thick.
D Make sure there is a grounded
electrical outlet under the sink.
Thewall outletfor yourdispensermust havepowersuppliedto it continuously
andmustbefused.It shouldnotbecontrolledbythe samewaltswitch
thatoperatesyourdisposer.
It'youhaveto drillthroughsink er
countertop,youmayneedtorenter
purchasethe appropriatetoots.
D Turn off water supply.
D If using the sink sprayer hose hole,
remove nut that connects sprayer
hose at bottom ot faucet
[] Using adjustable wrench, remove
nut connecting sprayer washer
flange m sprayer hole.
[] Plug hose opening with either a t/8"
plug or a t/4" cap Inot supplied).
Required Hole Diameter
1%"
Consuttaprofessionalbetoredrillinginto
asu_aco other_an stainlesssleet,
Whatif youdon'thavea sprayerholeor
don'twantto useit?.
[] Many homeowners replace the soap
dispenser in their sink with an instant
hot water dispenser.
[] If drilling a hole into a stainless steef
sink or counter top, you can cut a
mounting hole for the dispenser with a
hole saw for stainless steel, or you can
use a hole punch.
1-800-558-5700
4 5
