Inspire M5 - Assembly Step 3

1
82
36
102
86
97
90
86
82
36
90
86
102
86
86
86
90
97
86
90
3
6
88
21

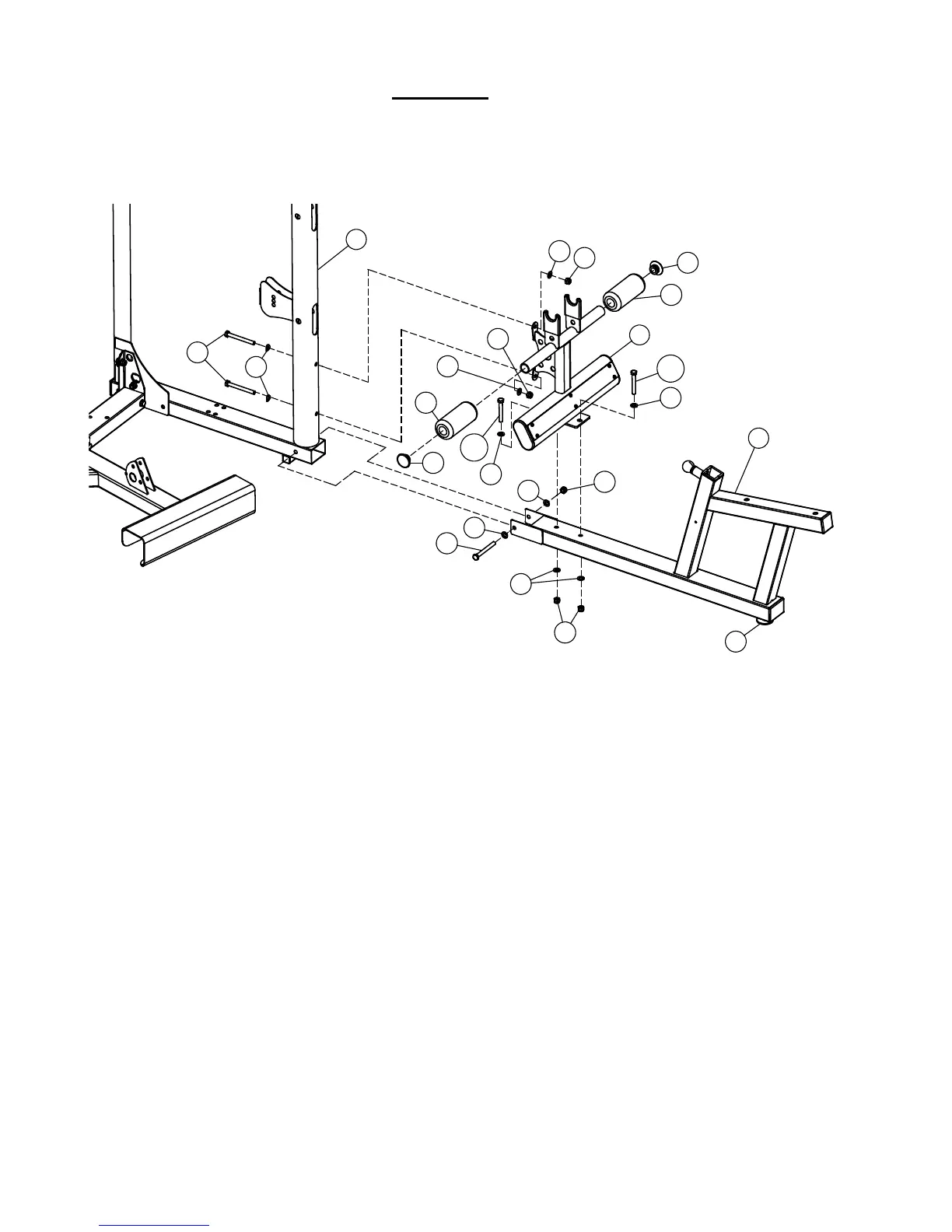

STEP 3
A) Attach the Foot Rest Assembly (6) to the Lat Seat Frame (3) using the two M10*70 bolts
(102).
B) Attach the Lat Seat Frame (3) to the Main Frame (1) using one M10*95 bolt (97).
C) Attach the Foot Rest Assembly to the Main Frame using the two M10*95 bolts (97) with
the Curved Washers (88) placed against the round tube upright on the Main Frame.
D) Adjust the Adjustable Stop (21) until it contacts the floor and tighten the Jam Nut.
E) Slide the two Small Covered Foam Rollers (36) onto the Foot Rest and secure with the two
black plastic End Caps (82).
Tighten all the hardware in Steps A-D at this time.
PAGE 7
