Pulley 24
Pulley 22
Pulley 20
Pulley 23
Pulley 1
Pulley 2
Lat Upper Cable
p/n 870-500-006
Pulley 21

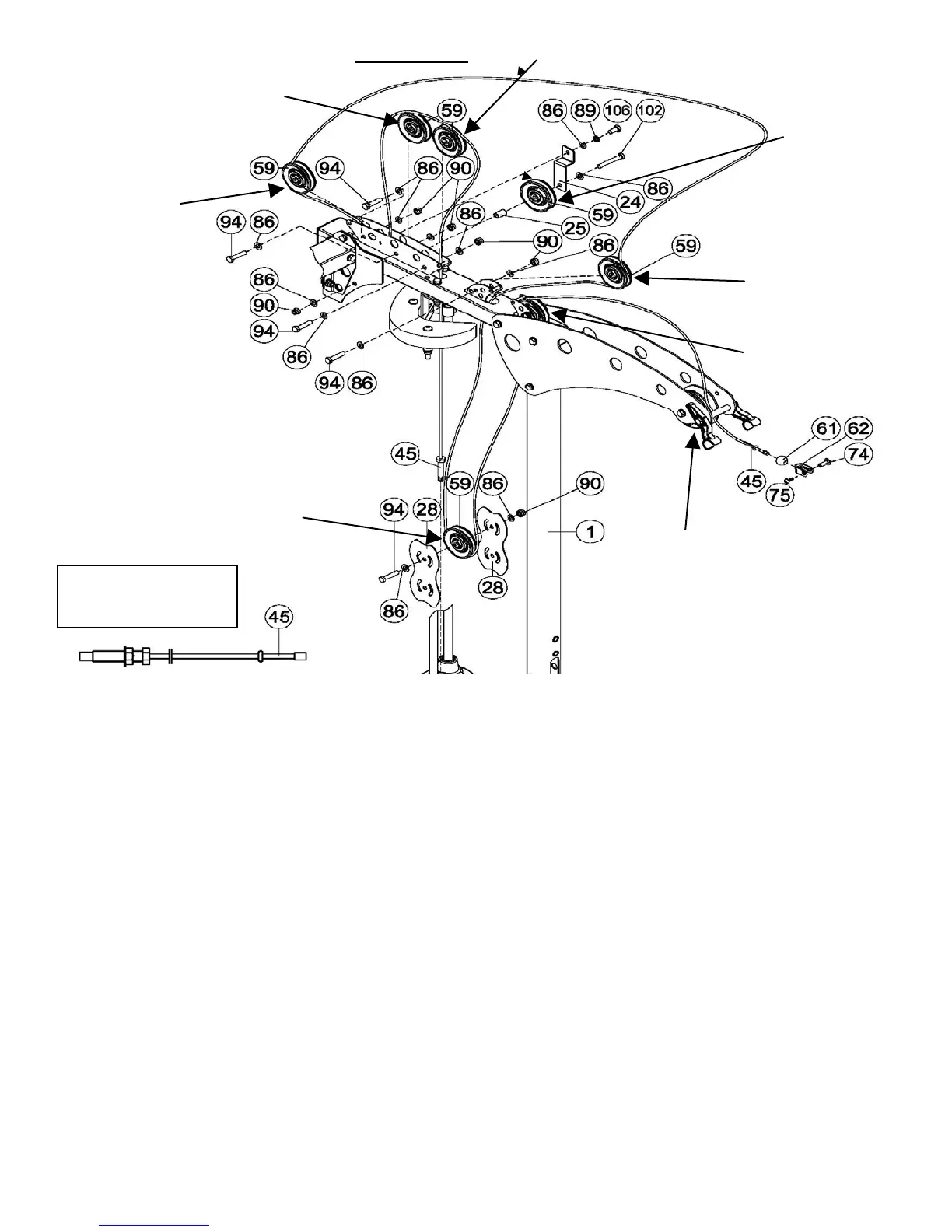

STEP 13
A) Install the Pulley Bracket (24) to the back side of the gym under Pulley 22 with M10*20
bolt (106).
This bolt is installed in the threaded insert located below Pulley 22 on the back
sid
e.
B) Install Pulley 19, 20, 22 and 23 at the top of the Main Frame (1) with the M10*45 bolts
(94). Pulley 21 is installed directly below Pulley 22 but on the back side of the gym. It is
attached to Pulley Bracket (24) and the gym with the M10*70 bolt (102) and the 1” Barrel
Spacer (25) between the pulley and the Main Frame as shown at the top of the picture.
C) To route the Lat Upper Cable (45), first unwind it by stretching it out on the floor. Then
fully screw the threaded end into the Top Plate of the weight stack and tighten the Jam
Nut. Route the cable up and around both Pulley 19 and 20 as shown. Continue by routing
the cable down and around Pulley 21 then up and around Pulley 22. From there run the
cable over the top of the gym, over Pulleys 20 and 19, then down and around Pulley 23
before running it down to the back side of Pulley 24. Pulley 24 is assembled with two
Floating Pulley Plates (28) and the M10*45 bolt. Run the cable around Pulley 24 and from
there run the cable up and over Pulley 1 and 2. Make sure that the cable is routed between
Pulley 2 and the 3” spacer or the cable will be damaged. Finish the cable end the same
way it was finished in Step 12.
Tighten the hardware for Pulleys 19, 20, 21, 22, 23 and 24 at this time. Also ensure that
the hardware for the Pulley Bracket (24) is tight at the top of the gym.
PAGE 17
Pulley 19
To Next Page
