Inspire M5 User Manual

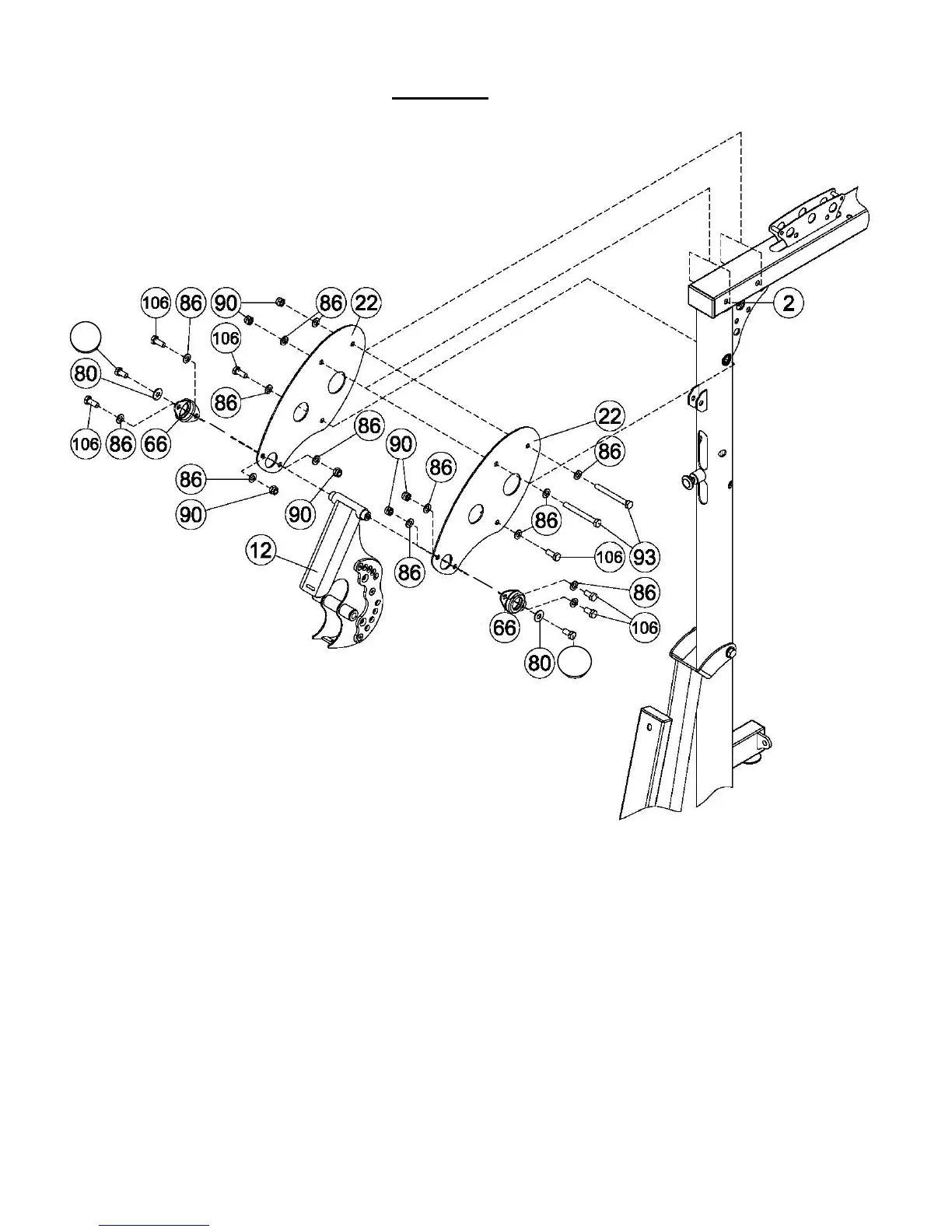

STEP 5
A) Attach the Top Beam Plates (22) to the Main Upright (2) using the two M10*100 bolts
(93) and the smaller M10*20 bolts (106). Only screw in the smaller M10*20 bolts by a
couple of threads to allow the Top Beam Plates to move when inserting the Press Arm
Mount (12).
B) Carefully hang the Press Arm Mount (12) from the Top Beam Plates.
C) Slide the Press Arm Bearing Assemblies (66) onto the shaft of the Press Arm Mount and
attach to the Top Beam Plates using the four M10*20 bolts (106) with the eight smaller
M10 washers (86).
D) Install the two M10*20 button head bolts (95) with the large M10 washers (80) to the
center of the Press Arm Bearing Assemblies.
PAGE 9
95
95

Inspire M5 Specifications

General

Frame	Steel
Weight Capacity	300 lbs
Material	Steel
Color	Black
Included Accessories	Lat bar, ankle strap
Warranty	1 year
Exercise Stations	Press Arm, Leg Extension/Curl, Lat Pulldown
