p/n 870-500-005
STEP 14

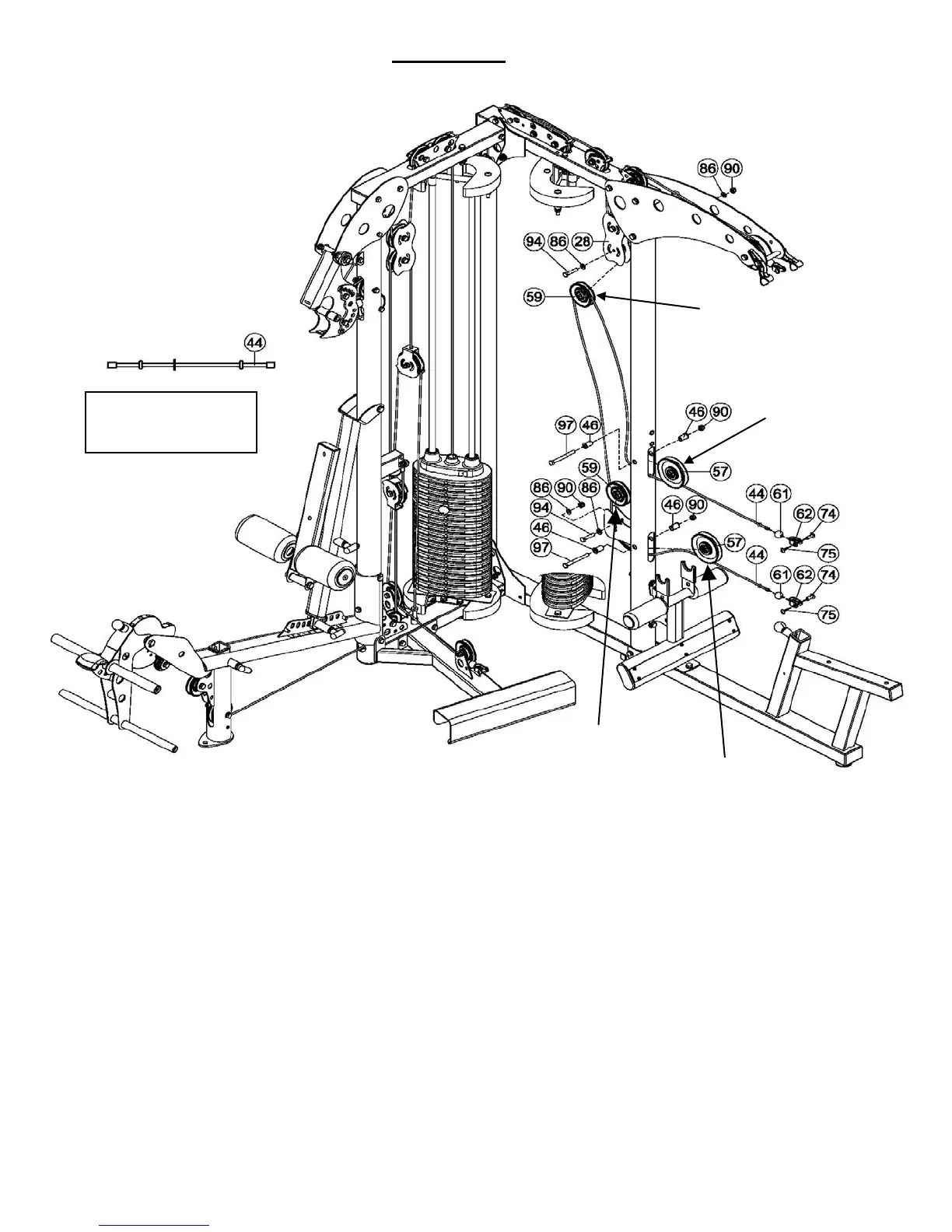

A) Install 4.5” Pulleys 25 and 28 (57) in the 3” round tube of the Main Frame as shown with
the 1” Step Spacers (46) and M10*95 bolts (97). Install Pulley 26 in the Floating Pulley
Plates with M10*45 bolt (94). Install Pulley 27 in the upper hole in the bracket on the
back side of the 3” round tube of the Main Frame with M10*45 bolt (94).
B) To route the Lat Lower Cable (44), first unwind it by stretching it out on the floor.
Assemble the cable end as in Step 12. This will help to keep the cable from following
through the gym as it is routed. Begin routing with the other end of the cable by running
it under Pulley 25, up and around the front of Pulley 26 in the Pulley Brackets, down to
the backside of Pulley 27 then under Pulley 28 and out like shown in the diagram.
C) Finish the last Cable Ends as Step as above.
Make sure that the hardware for Pulleys 25, 26, 27 and 28 are properly tightened.
PAGE 18
