p/n 870-500-001

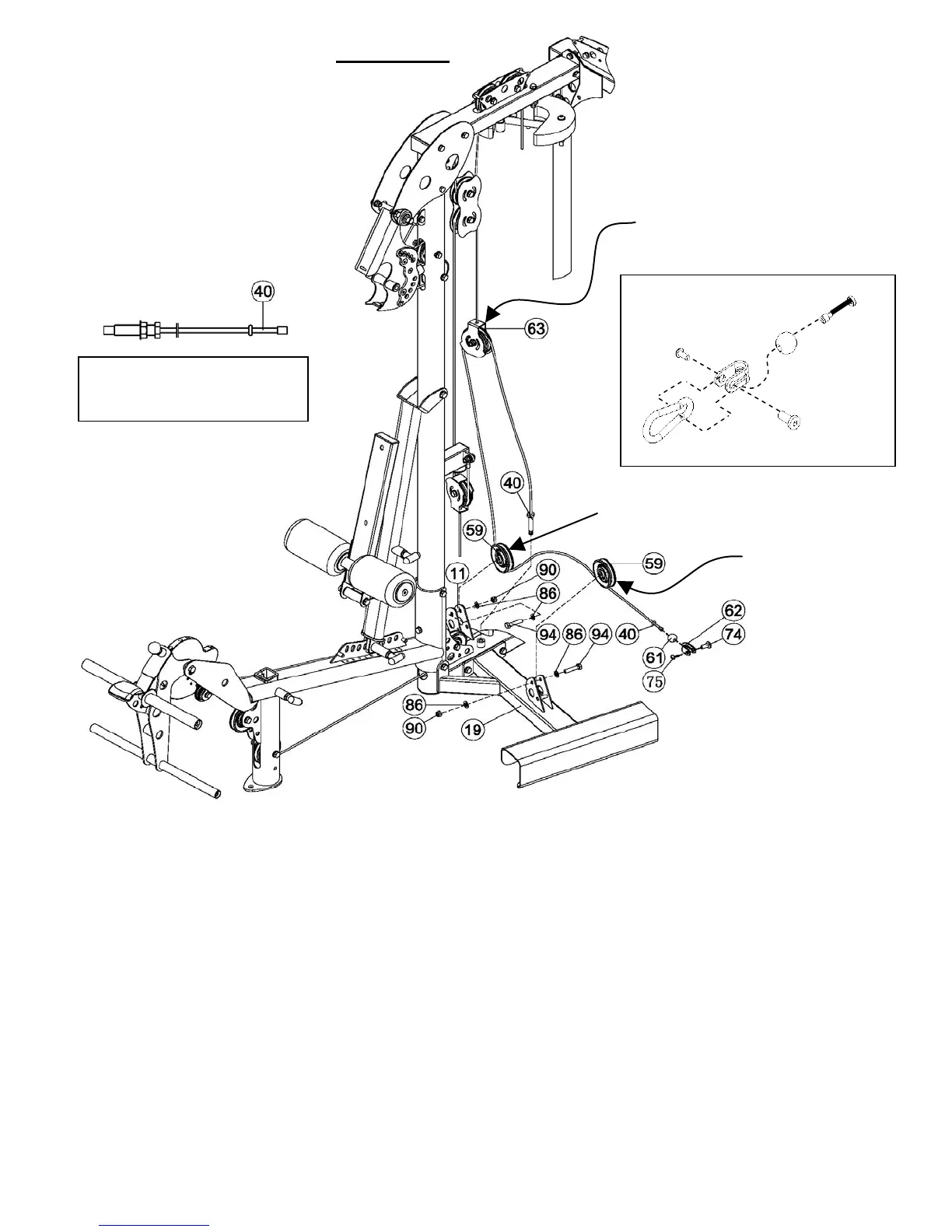

STEP 12
A) Install Pulleys 17 and 18 with M10*45 bolts (94) and tighten the hardware.
B) Begin routing the Lower Cable (40) by screwing the threaded end half way into the frame,
near Pulley 17, as shown and tighten the Jam Nut. Then route it up and around Pulley 16,
down around the bottom of Pulley 17 and then under Pulley 18.
C) Remove the hardware from the “U” Bracket (62). Assemble the cable end by sliding one
black Cable Ball (61) on the end of the cable just up to the little Rubber Donut then slide
the cable end into the side of the “U” Bracket. Bolt the Spring Clip to the “U” Bracket with
the hardware.
Retighten the “U” Bracket hardware now. Slide the Rubber Donut and Cable Ball tightly
against the “U” Bracket.
PAGE 16
