Inspire M5 User Manual

STEP 1
This step requires two people to be completed safely

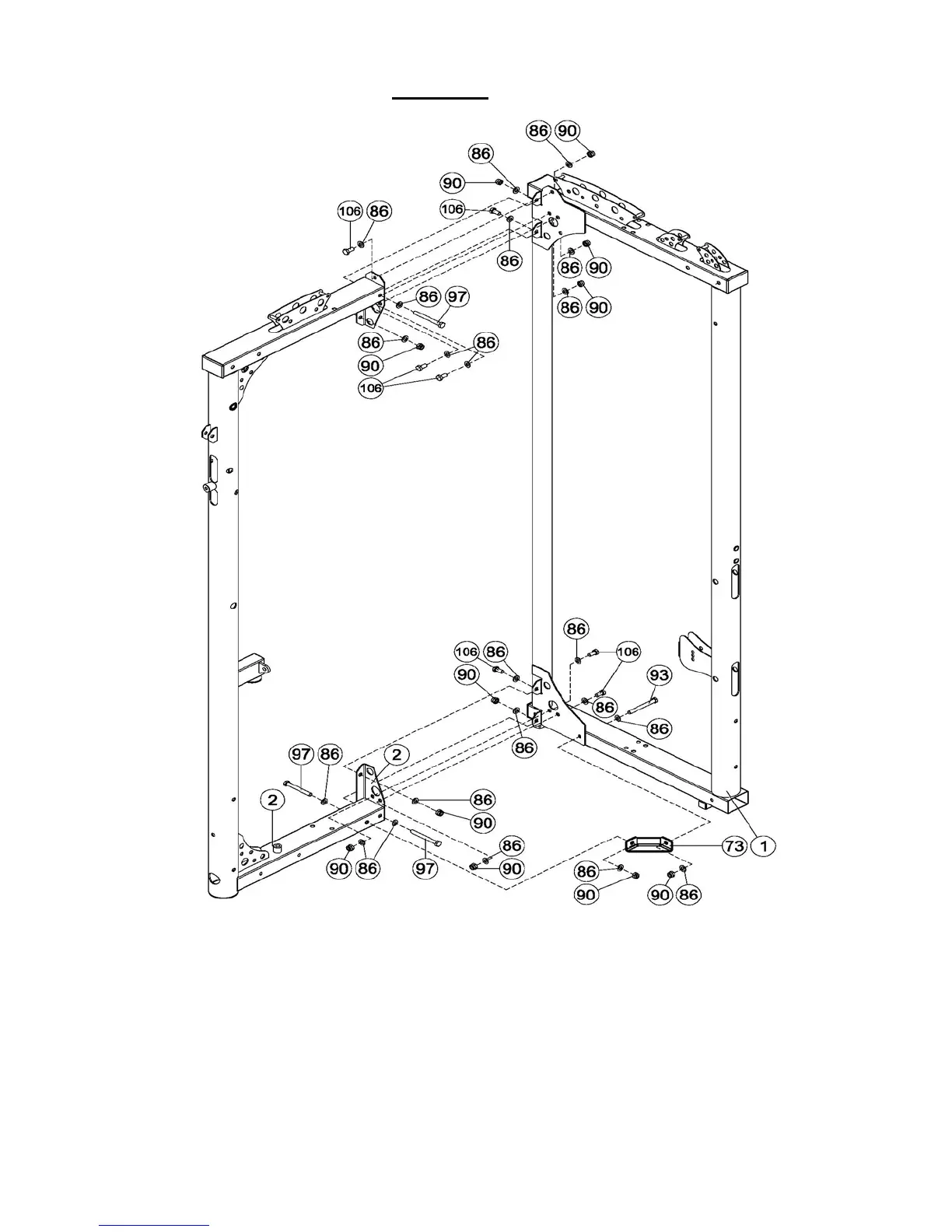

A) Place the Main Frame (1) and the Main Upright (2) as shown and attach them using the
M10*95 bolts (97) and M10*20 bolts (106).
B) Attach the Corner Bracket (73) to the two frames using a M10*95 bolt (97) and M10*100
bolt (93).
Tighten all the hardware at this time.
PAGE 5

Inspire M5 Specifications

General

Frame	Steel
Weight Capacity	300 lbs
Material	Steel
Color	Black
Included Accessories	Lat bar, ankle strap
Warranty	1 year
Exercise Stations	Press Arm, Leg Extension/Curl, Lat Pulldown
