Insta360 ONE RS Quick Start Guide

❸
Install the Mounting Bracket on the ONE RS before capturing.
It will reinforce connections between the assembled camera mods, giving
added protection and ensuring waterproofing. Please read the "Waterproofing:
What to Know" manual for more waterproofing precautions.
EN
5
①
②
③
④

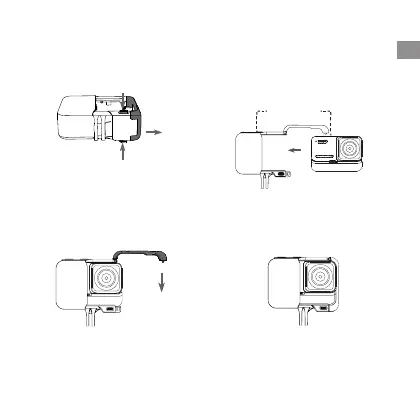

Open the Mounting Bracket
To open the frame, press the
two red unlocking buttons at the
bottom of the Mounting Bracket
at the same time.
Close the Mounting Bracket
Push the open side of the frame
down until its connecting points
click in place.
Insert ONE RS into the
Mounting Bracket
Installed successfully
Buttons should be aligned
correctly

Insta360 ONE RS Specifications

General

Bluetooth	Yes
Product color	Black
ISO sensitivity	100, 125, 160, 200, 250, 320, 400, 500, 640, 800, 1000, 1250, 1600, 2000, 2200, 2250, 2500, 3200
Wi-Fi frequency	5 GHz
Camera interface	USB Type-C
Bluetooth version	5.0
Fixed focal length	6.52 mm
Maximum aperture number	2.2
Operating temperature (T-T)	-20 - 40 °C
Fastest camera shutter speed	1/8000 s
International Protection (IP) code	IPX3
HD type	-
Video resolutions	3840 x 1920 pixels
Maximum frame rate	50 fps
Video formats supported	INSV
Maximum video resolution	6144 x 3072 pixels
Image formats supported	INSP, RAW
Maximum image resolution	6528 x 3264 pixels
Storage media	Memory card
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	1000 GB
Audio formats supported	AAC
Virtual Reality (VR) ready	No
Power source	Battery
Battery capacity	1350 mAh
Battery life (max)	1 h
Mobile operating systems supported	Android, iOS

Weight and Dimensions

Depth	129.3 mm
Width	53.2 mm
Height	49.5 mm
Weight	239 g
