10
1.

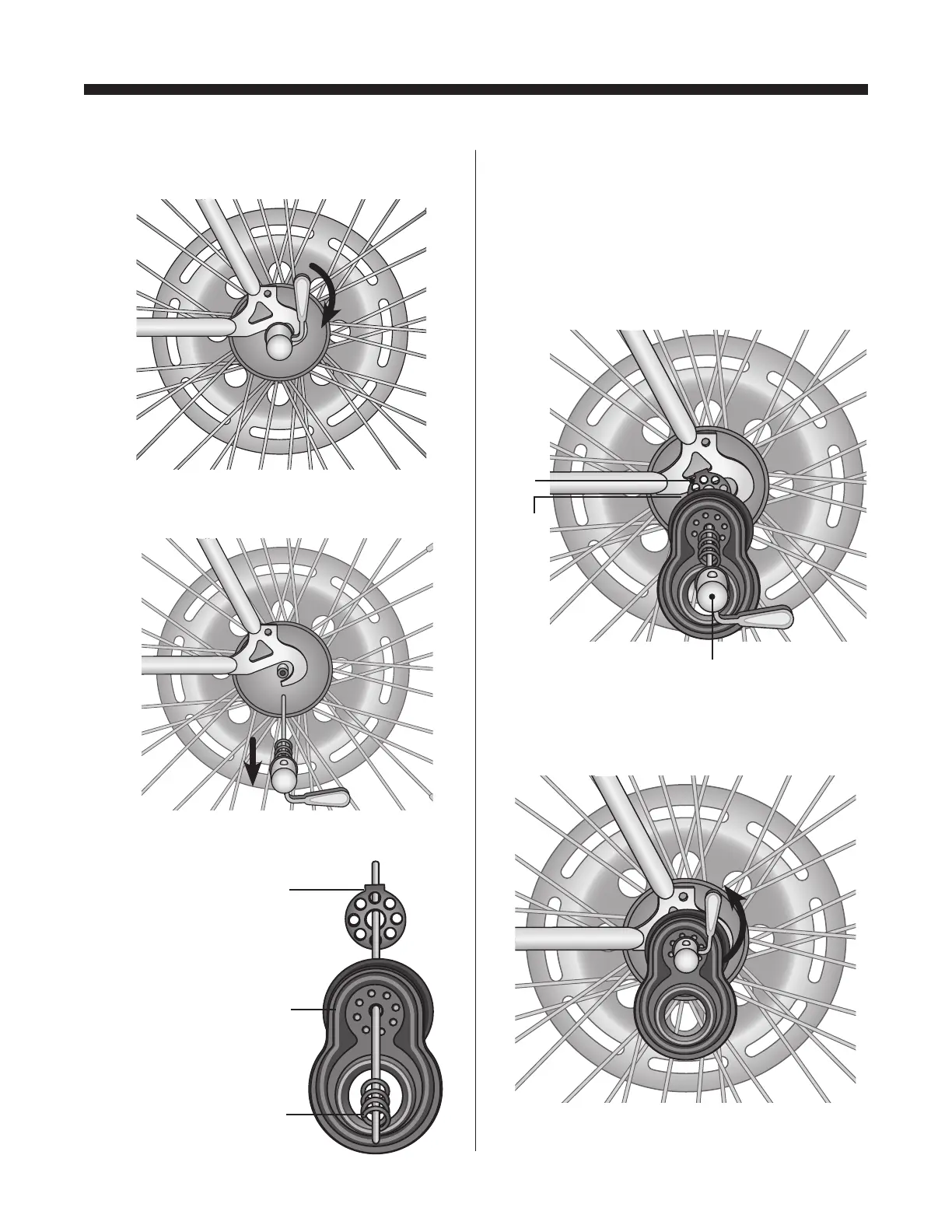

Flip the quick release lever and remove the
nut and spring from the opposite side.
Attaching to a Bicycle with Quick Release Axles
2.
Remove the axle skewer and spring. Leave the
wheel in place.
3.
Slide the axle skewer through the coupler plate
and tab washer.
4.
Insert the axle skewer, tab washer, coupler
plate and spring through the wheel, with the
parts oriented as described in step 3.
Fit the tab on the tab washer into the slot on
the bicycle frame dropout.
Note: If your bike frame doesn’t have a slot in the
drop out, rotate the tab to t in the axle slot.
The wide end of the
spring must face out,
touching the lever.
The bell on the coupler
plate should face out.
The hook on the tab
washer must face
towards the wheel hub.
5.
Place the spring and nut (removed in step 1)
on the axle skewer and tighten.
6.
Rotate the quick release lever up and close
fully and tightly.
7.
Follow steps 5 - 8 on Page 9.
Axle slot
Tab
washer
To Next Page
