Integra DPS-5.4 Service Manual

DPS-5.4

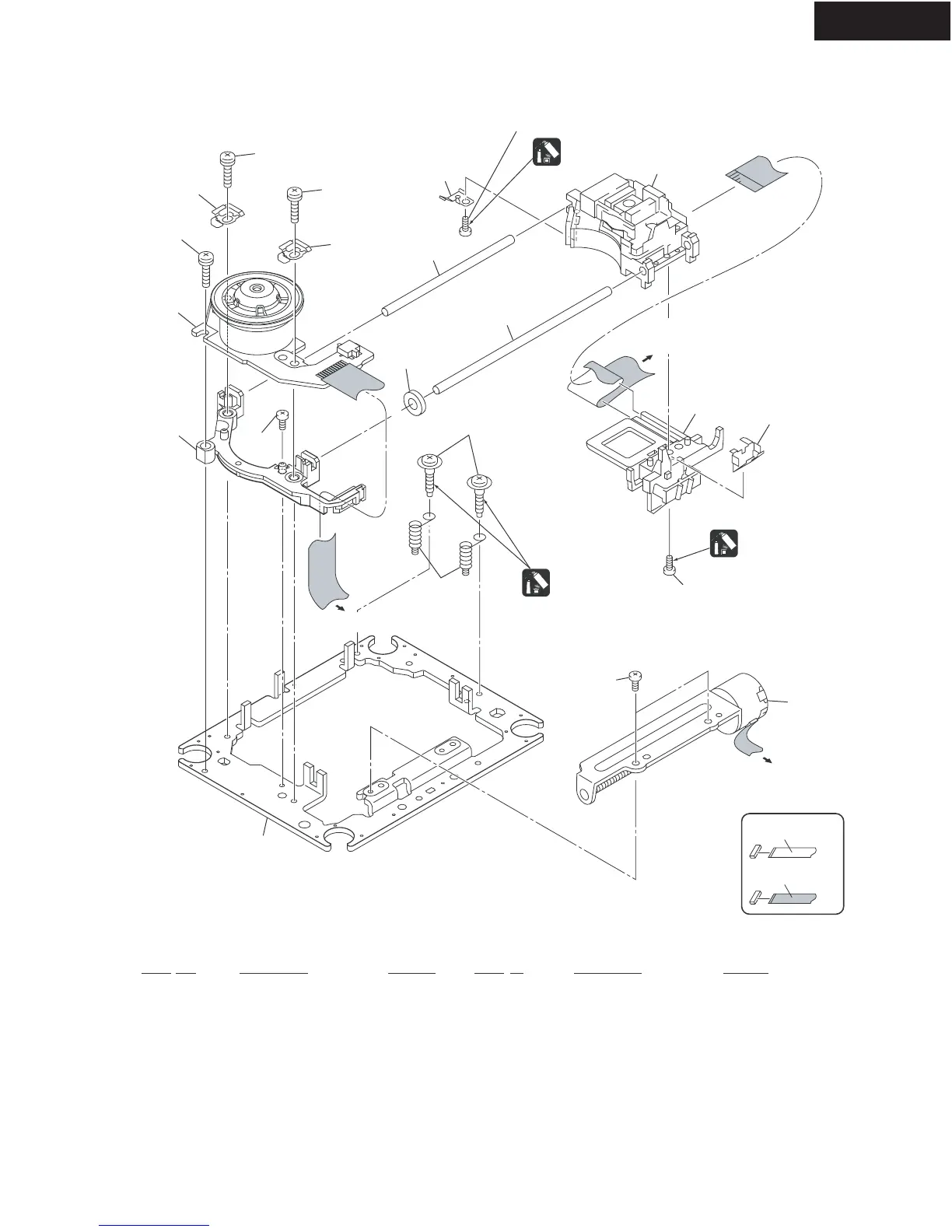

EXPLODED VIEW / PARTS LIST
TRAVERSE MECHANISM
To
DVDM CN104
(Stepping Motor)
To DVDM CN102
(Spindle Motor)
To
DVDM CN101
(Pickup Assy)
CONTACT SIDE
NON-CONTACT
SIDE
3
7
8
1
17
16
12
17
10
13
17
10
6
11
14
16
2
9
15 (Torque : 0.15 +/- 0.01 N m)
15 (Torque : 0.15 +/- 0.01 N m)
4 (Adjustment screw)
5
(Adjustment
spring)
Screw Tight
GYL1001
Silicone Adhesive
GEM1037
Silicone Adhesive
GEM1037
TRAVERSE MECHA. ASSY parts List
Mark No. Description Part No.
1 Spindle Motor VXM1099
2 Stepping Motor VXM1101
3 Pickup Assy-S OXX8005
4 Skew Screw VBA1080
5 Skew Spring VBH1335
6 Guide Bar VLL1514
7 Sub Guide Bar VLL1515
8 Leaf Spring VNC1023
10
NSP
9 Joint Spring VNC1019
Support Spring VNC1020
11 Mecha.Chassis VNE2248
12 Damper Sheet VEB1335
13 Spacer VNL1913
14 Joint 03 VNL1949
15 Tapping Screw OBA8016
16 Screw BBZ20P050FZK
17 Screw PMA26P100FMC
Mark No. Description Part No.
NSP : Not service parts
