Integra DPS-5.4 Service Manual

DPS-5.4

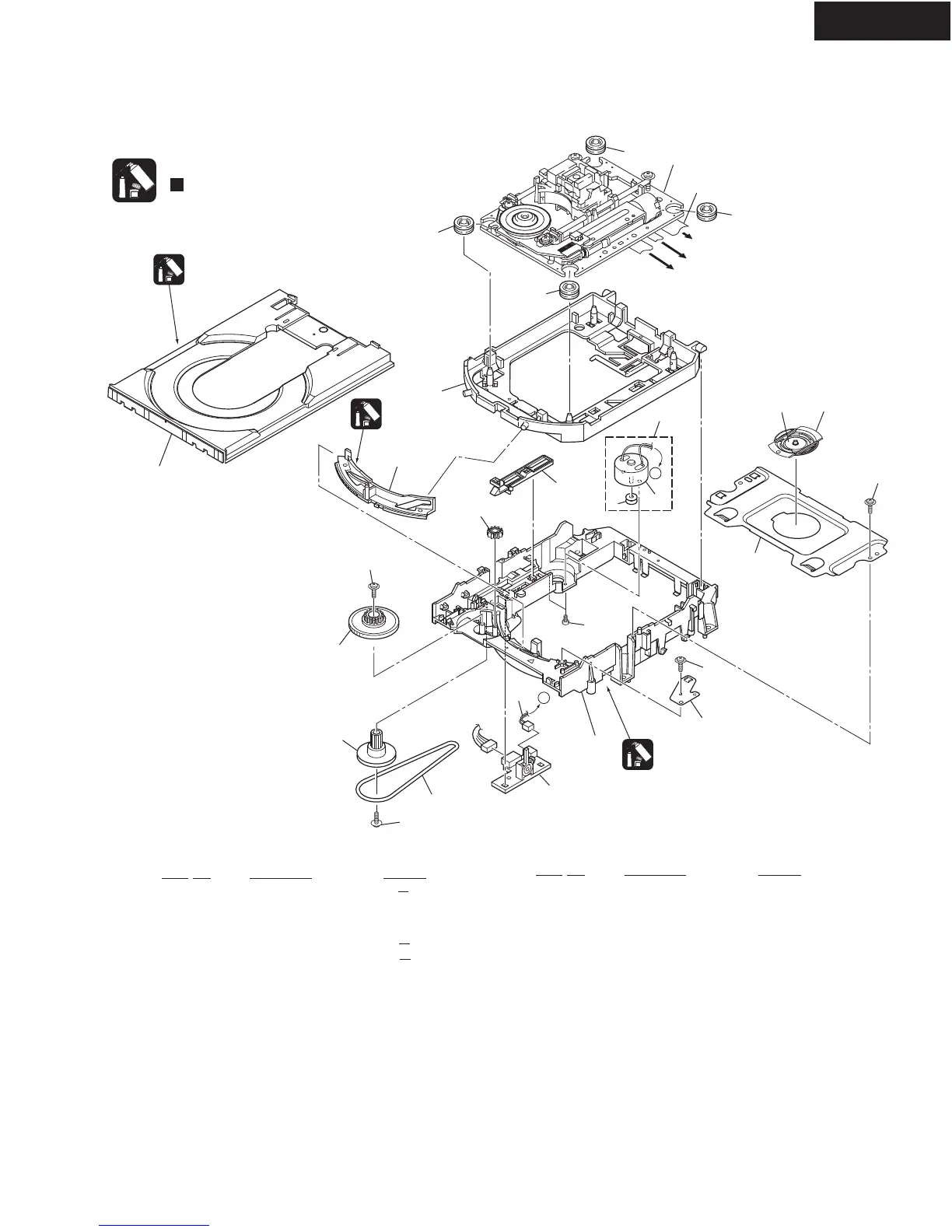

EXPLODED VIEW / PARTS LIST
A
A
To DVDM CN101 (Pickup Assy-S)
To DVDM CN104 (Stepping Motor)
To DVDM CN102 (Spindle Motor)
2
3
5
4
12
23
13
17
21
16
22
15
14
22
22
22
20
18
19
9
1
7
10
11
6
8
8
8
8
Refer to
"2.5 TRAVERSE MECHA. ASSY-S".
Lubricating Oil
GYA1001
Daifree
GEM1036
Refer to
" Application of Lubricant".
Note :
Lubricating Oil
GYA1001
LOADING MECHA. ASSY parts List
Mark No. Description Part No.
NSP 1 LOAB Assy
2 Traverse Mecha. Assy-S VXX2871
3 Loading Motor Assy VXX2872
4 Motor Pulley
5 Motor
6 Flexible Cable (24P) VDA1945
7 Connector Assy 2P VKP2253
8 Floating Rubber VEB1351
9 Belt VEB1330
10 Stabilizer VNE2253
11 Loading Base VNL1917
12 Float Base DVD VNL1918
13 Drive Cam VNL1919
14 Gear Pulley VNL1921
15 Loading Gear VNL1922
16 Drive Gear VNL1923
17 SW Lever VNL1925
18 Clamper Plate VNE2251
19 Bridge VNE2252
20 Clamper VNL1924
21 Screw JGZ17P028FMC
22 Screw 801530
23 Tray VNL1920
Mark
No. Description Part No.
NSP: Not service parts
LOADING MECHANISM
