Integra DRX-2.4 - Page 35

5.1ch
7.1ch
3.1.2ch
5.1.2ch
3.1ch
35
Speaker Connections

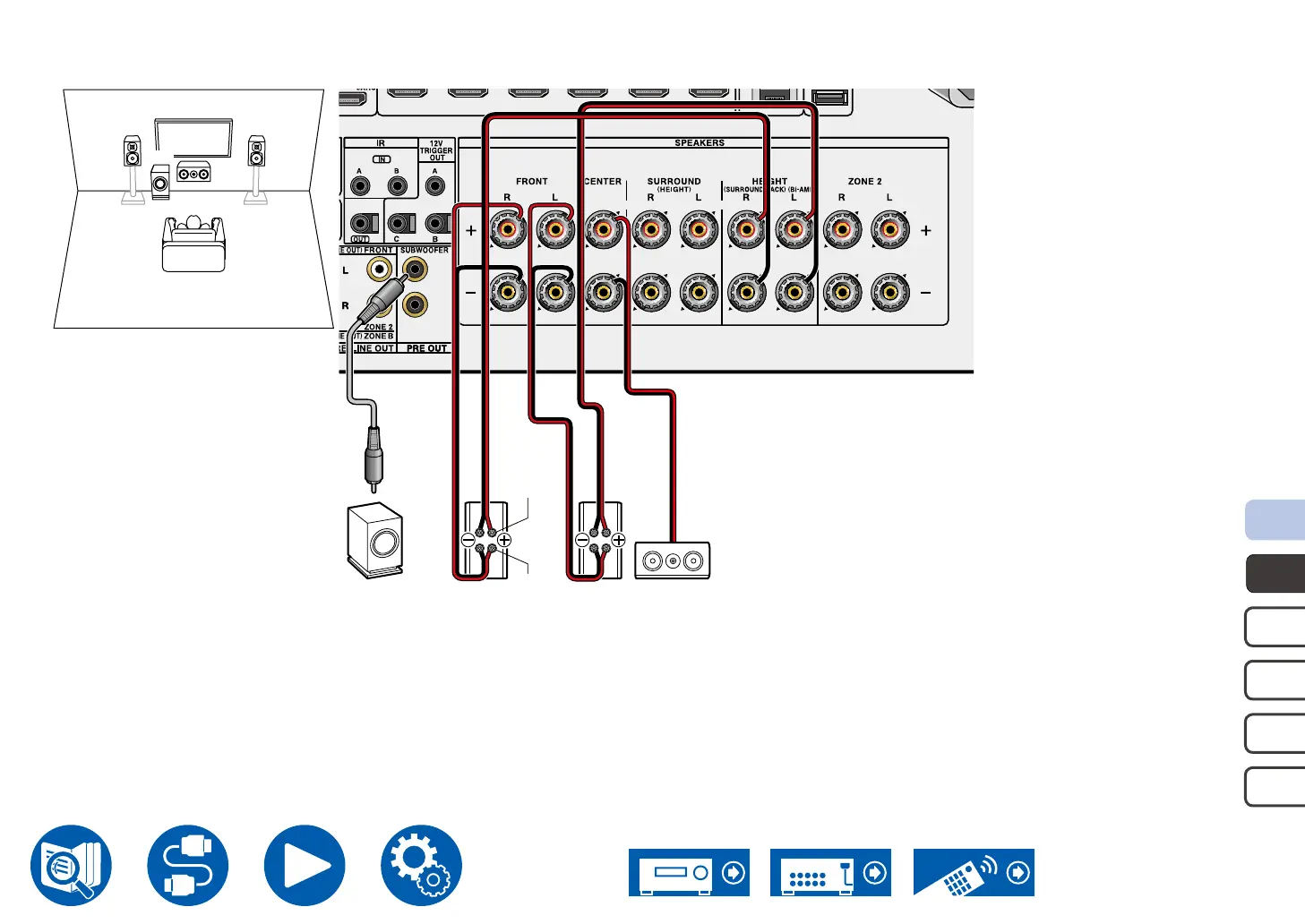

 3.1 Channel System (Bi-Amping the Speakers)
FL FR
C
SW
SW C
FR FL
For high-
frequency
For low-
frequency
Be sure to remove the jumper bar connecting between the woofer jacks and tweeter jacks of the Bi-Amping supported speakers. Refer to the instruction manual of
your speakers as well.
