3.1.2ch
5.1.2ch
3.1ch
5.1ch
7.1ch
40
Speaker Connections

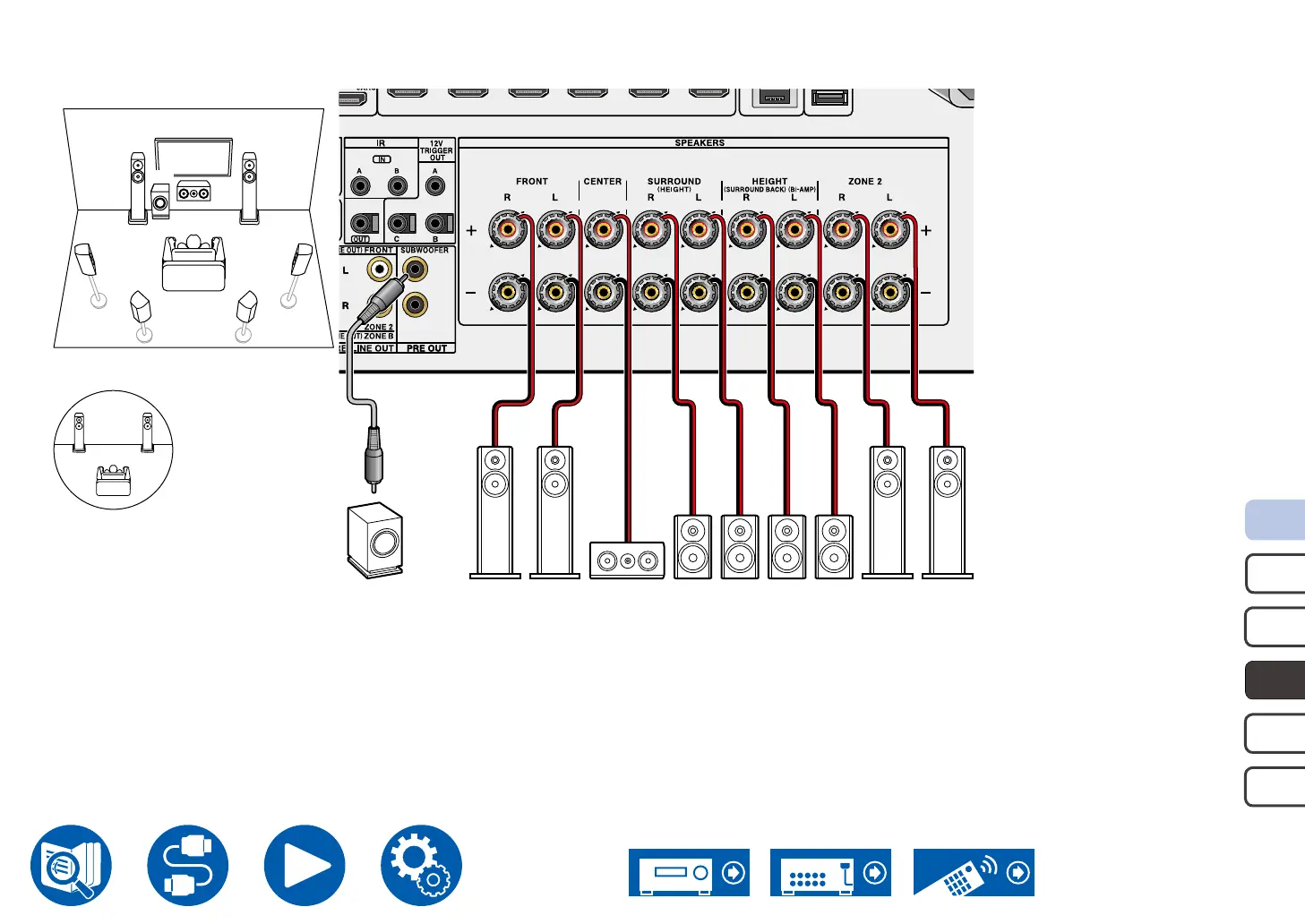

7.1 Channel System + ZONE SPEAKER
FL FR
SL SR
SBL SBR
C
SW
SW FR FL C FR(Z2) FL(Z2)SBR SBLSR SL
ZONE 2
FL(Z2)FR(Z2)
MAIN ROOM
While ZONE 2 playback is being performed, surround back speakers installed in the main room cannot play audio.
