Speaker Connections

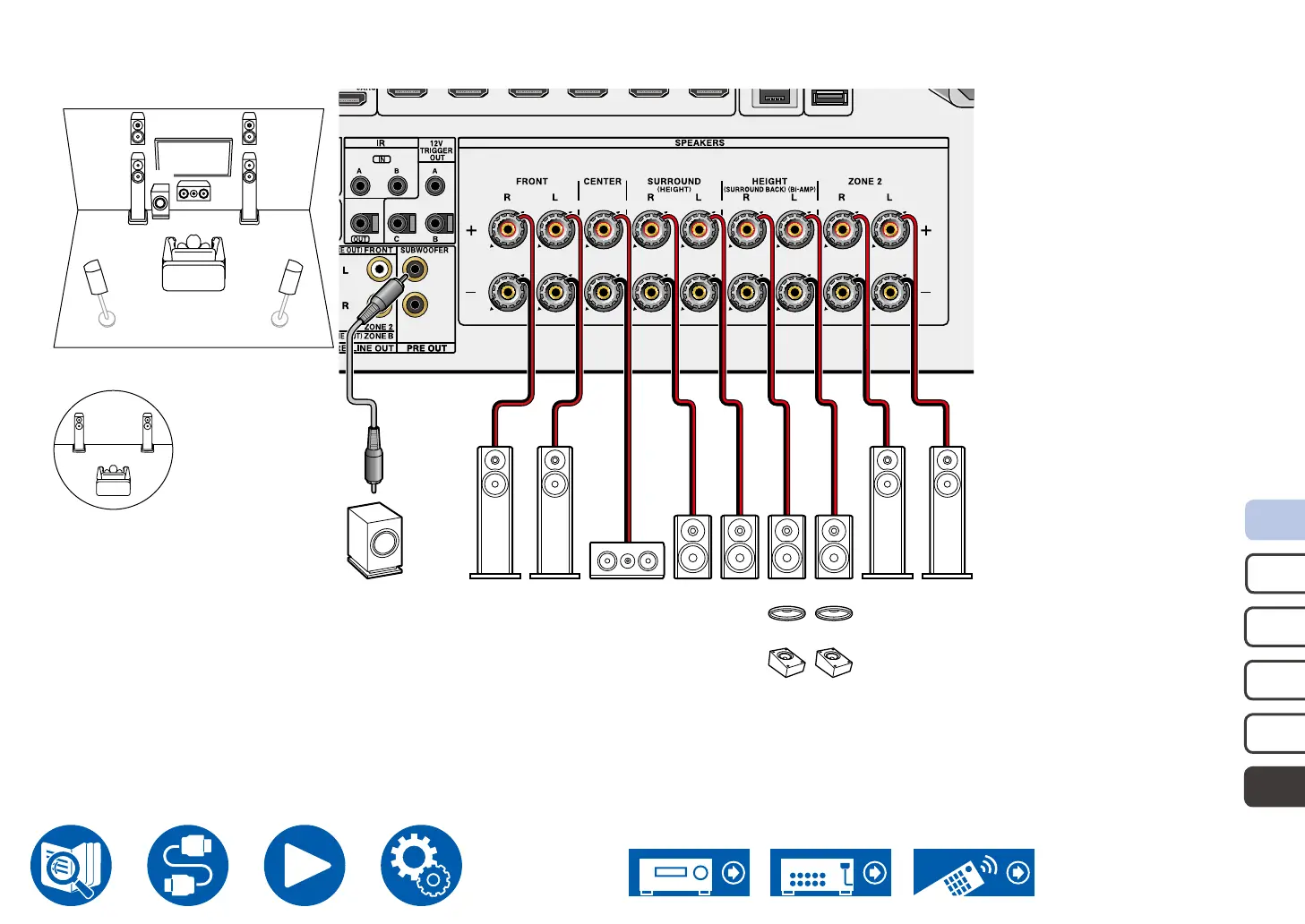

 5.1.2 Channel System + ZONE SPEAKER
FL FR
SL SR
C
SW
HL HR
SW FR FL C FR(Z2) FL(Z2)
HR
OR
OR
HL
OR
OR
SR SL
ZONE 2
FL(Z2)FR(Z2)
MAIN ROOM
While ZONE 2 playback is being performed, height speakers installed in the main room cannot play audio.
