REF.NO. PART NO. DESCRIPTION
30 880016 P3035B,Plastic rivet
49 27150474 Shield plate, wire
52 27160489 Heat sink
53 801433 3SMS8W.SW+14B(BC), Special screw
54 27141681 Retainer PWB
55 27141798 Retainer R
56 27141799 Retainer L
57 27130869 Bracket, heat sink
58 27130745 Bracket
59 838130088 3TTB+8B,Self-tapping screw
60 27190470 KGLS-18S,Holder
61 838430107 3TTB+10S(BC),Self-tapping screw
66 223025 AC262,Isolated sheet
F9501 252160 or 2.5A-UL/T-237 or
F9502 252254 2.5A-T/UL-ST2,Fuse
F9503 252158 or 1.6A-UL/T-237 or
F9504 252252 1.6A-T/UL-ST2,Fuse
P7701 2047051012 NCFC7-051012,Flexible cable
Q6050~ 2203083 or 2SC5359-O or
Q6056 2203082 2SC5359-R,Transistor
Q6060~ 2203073 or 2SA1987-O or
Q6066 2203072 2SA1987-R,Transistor
U6 1A906532-1G NAAF-7232-1G,Power amp. F/C drive circuit PC board ass'y
U12 1A906538-1G NAETC-7238-1G,Fan drive circuit PC board ass'y
U13 1A906539-1G NAETC-7239-1G,Thermal detector circuit PC board ass'y
U17 1A906543-1G NAETC-7243-1G,PC board for holder
U18 1A906544-1G NAETC-7244-1G,Ground PC board ass'y
U21 1A906550-1C NAAF-7250-1C,Power amplifier PC board ass'y
U22 1A906551-1C NAAF-7251-1C,Power amplifier driver 2 PC board ass'y
U23 1A906552-1C NAPS-7252-1C,Power supply circuit PC board ass'y
U29 1A906558-1C NAETC-7258-1C,Thermal detector circuit PC board ass'y
!
!
!
!
*
*
*
*
52
49
30
57
U17
U29
59
56
59
Q6063
Q6053
52
U17
58
U13
Q6056
Q6066
U21
66
55
59
Q6050
66
F9503
F9504
F6502
F9501
61
U23
54
U6
U22
P7701
60
57
U12
Q6062
U18
56
59
59
59
55
DTR-8.2

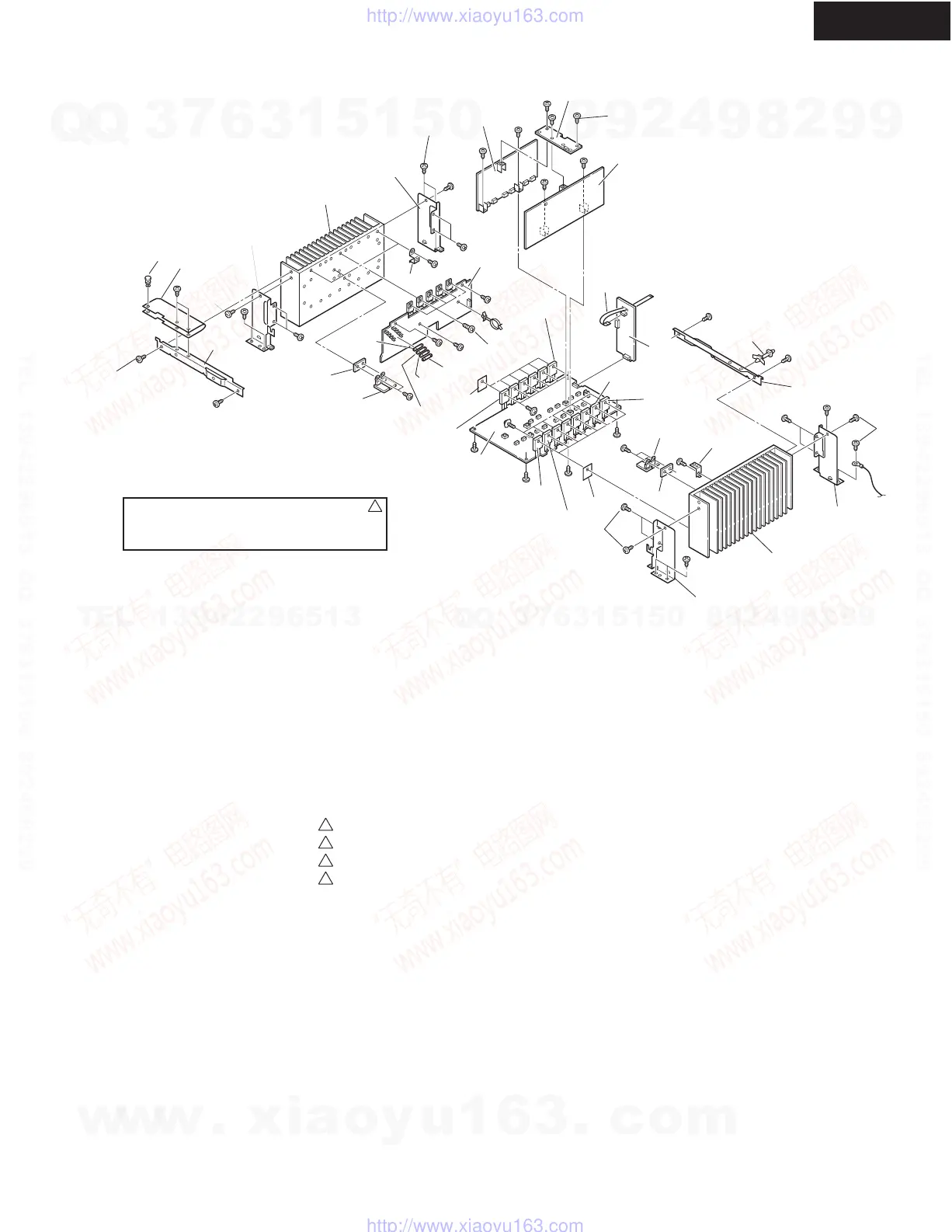

EXPLODED VIEW
Chassis section 2
NOTE: THE COMPONENTS IDENTIFIED BY MARK !
ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE ONLY WITH
PART NUMBER SPECIFIED.
CAUTION: Replacement for transistor of mark *, if necessary
must be made from the same beta group (H
FE) as
the original type.
