REF.NO. PART NO. DESCRIPTION
1 27111242B Front bracket
2 27191153A Holder, jack
3 838430088 3TTB+8B(BC),Self-tapping screw
4 838130088 3TTB+8B,Self-tapping screw
5 28325756 Knob, standby
6 27150472 Shield plate FFC
7 28191939 Clear plate
8 28133387 Back plate
9 28198905 Facet
10 82143010 3P+10FN(BC),Pan head screw
12 28198933 Facet 5
13 28198936 Facet 6
14 28159047 Decorative frame
16 28135278 Badge
18 28148494 Door
19 27230025 Push latch
20 27191151 Holder L
21 27191152 Holder R
22 28180154A Hinge L
23 28180155A Hinge R
24 27270426 Spacer
25 870071 WW-6,Wave washer
26 801433 3SMS8W.SW+14B(BC), Special screw
28 28325913 Knob, volume
29 28325753 Knob, power
31 27255004 CS-1U,Clip
81 27212345 Front panel
82 27262669 Plate, door
P7201 2047335512 NCFC7-335512,Flexible cable
U9 1A906535-1G NASW-7235-1G,Power switch PC board ass'y
U15 1A906541-1G NAETC-7241-1G,PC board for holder
U44 1A906575-1F NADIS-7275-1F,Display circuit PC board ass'y
U45 1A906576-1F NASW-7276-1F,Volume PC board ass'y
U46 1A906577-1F NAETC-7277-1F,Headphone terminal PC board ass'y
U47 1A906578-1F NAETC-7278-1F,Front video PC board ass'y
U48 1A906579-1F NAETC-7279-1F,Front video 2 PC board ass'y
1
2
3
5
6
7
8
9
10
12
13
14
16
18
19
20
21
22
23
24
25
26
28
29
31
81
82
P7201
U9
U15
U44
U45
U46
U47
U48
31
3
3
3
3
4
4
4
4
4
4
4
DTR-8.2

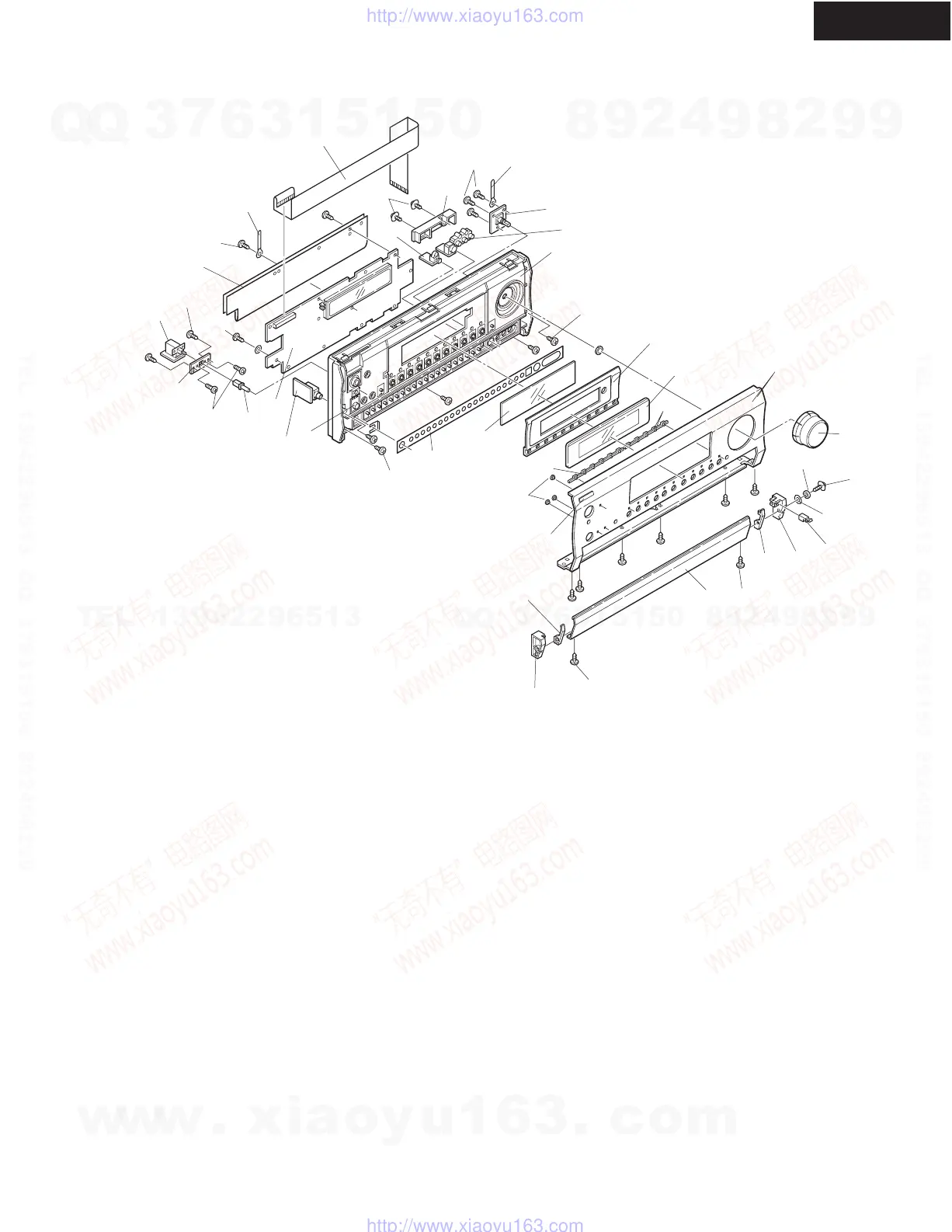

EXPLODED VIEW
Front panel section
