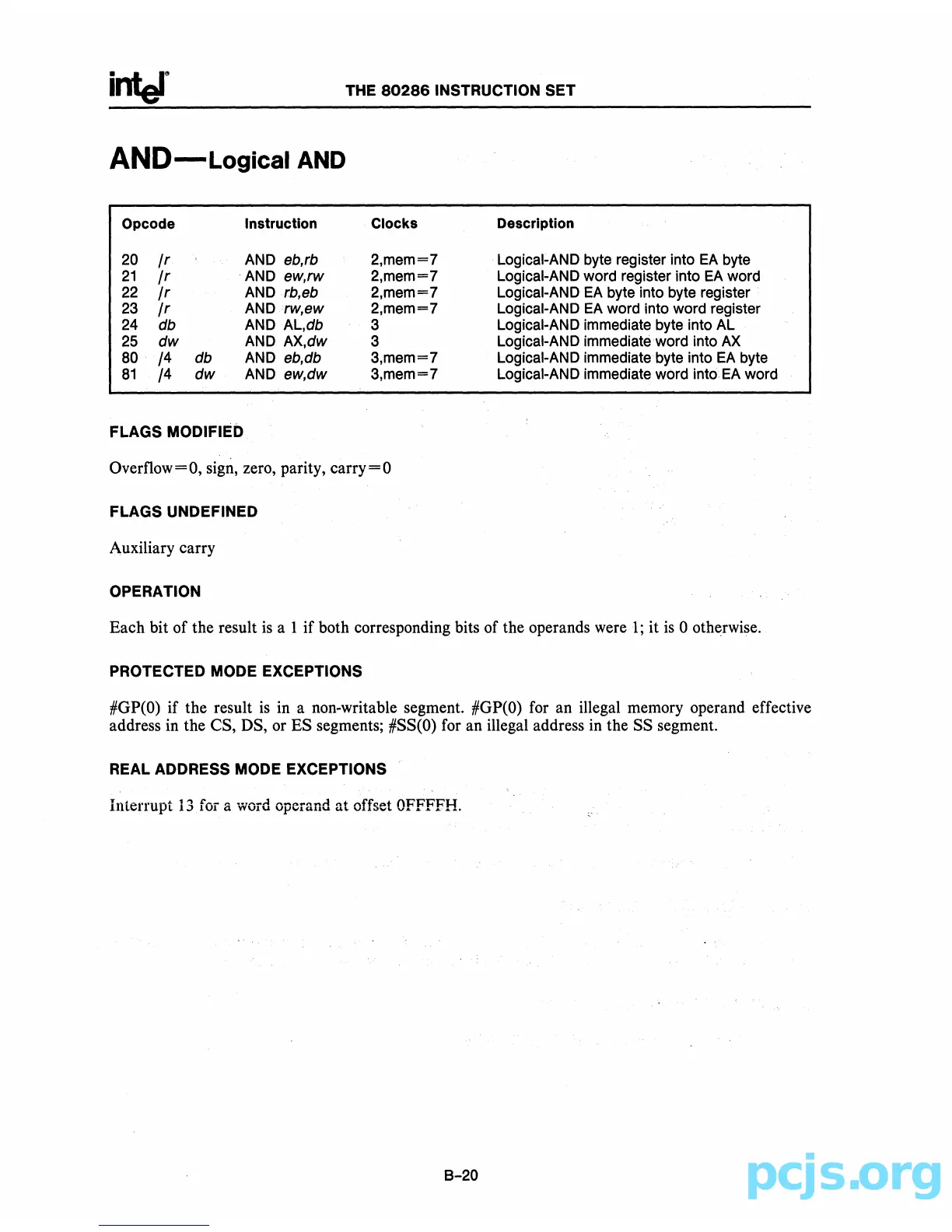

THE
80286
INSTRUCTION SET
AND-Logical
AND
Opcode Instruction Clocks
20
Ir
AND eb,rb
2,mem=7
21
Ir
AND ew,rw
2,mem=7
22
Ir
AND rb,eb
2,mem=7
23
Ir
AND rw,ew
2,mem=7
24
db
AND AL,db
3
25
dw
AND AX,dw
3
80
14
db
AND eb,db
3,mem=7
81
14
dw
AND eW,dw
3,mem=7
FLAGS MODIFIED
Overfiow=O, sign, zero, parity, carry=O
FLAGS UNDEFINED
Auxiliary carry
OPERATION
Description
Logical-AND byte register into
EA
byte
Logical-AND word register into
EA
word
Logical-AND
EA
byte into byte register
Logical-AND
EA
word into word register
Logical-AND immediate byte into AL
Logical-AND immediate word into
AX
Logical-AND immediate byte into
EA
byte
Logical-AND immediate word into
EA
word
Each bit of the result
is
a 1 if both corresponding bits of the operands were
1;
it
is
0 otherwise.
PROTECTED MODE EXCEPTIONS
#GP(O)
if the result
is
in
a non-writable segment.
#GP(O)
for an illegal memory operand effective
address
in
the CS, DS, or ES segments;
#SS(O)
for an illegal address
in
the SS segment.
REAL ADDRESS MODE EXCEPTIONS
Interrupt
13
for
a
word
operand
at
offset
OFFFFH.
