Intel 80286 User Manual

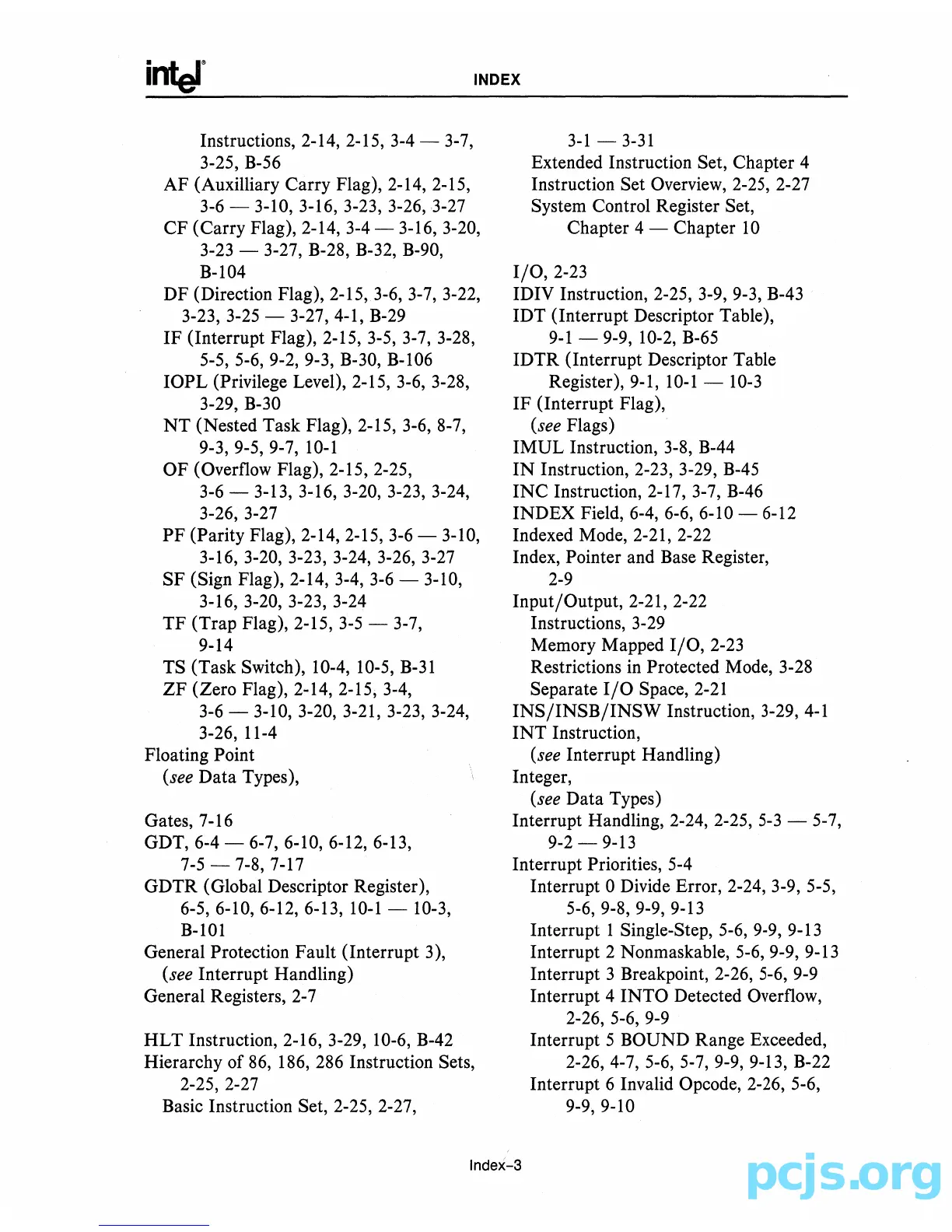

INDEX
Instructions, 2-14, 2-15, 3-4 - 3-7,
3-25, B-56
AF (Auxilliary Carry Flag), 2-14, 2-15,
3-6 - 3-10,3-16,3-23,3-26,3-27
CF (Carry Flag), 2-14, 3-4 - 3-16,3-20,
3-23 - 3-27, B-28, B-32, B-90,
B-I04
DF (Direction Flag), 2-15, 3-6, 3-7, 3-22,
3-23,3-25 - 3-27, 4-1, B-29
IF (Interrupt Flag), 2-15, 3-5, 3-7, 3-28,
5-5, 5-6, 9-2, 9-3, B-30, B-I06
IOPL (Privilege Level), 2-15, 3-6, 3-28,
3-29, B-30
NT (Nested Task Flag), 2-15, 3-6, 8-7,
9-3, 9-5, 9-7,
10-1
OF (Overflow Flag), 2-15,2-25,
3-6 - 3-13, 3-16, 3-20, 3-23, 3-24,
3-26,3-27
PF (Parity Flag), 2-14, 2-15, 3-6 - 3-10,
3-16,3-20,3-23,3-24, 3-26, 3-27
SF (Sign Flag), 2-14, 3-4, 3-6 - 3-10,
3-16,3-20,3-23,3-24
TF (Trap Flag), 2-15,3-5 - 3-7,
9-14
TS (Task Switch), 10-4, 10-5,
B-31
ZF (Zero Flag), 2-14, 2-15, 3-4,
3-6 - 3-10,3-20,3-21, 3-23, 3-24,
3-26, 11-4
Floating
Point
(see Data Types),
Gates, 7-16
GDT, 6-4 - 6-7,6-10,6-12,6-13,
7-5 - 7-8, 7-17
GDTR (Global Descriptor Register),
6-5,6-10,6-12,6-13,
10-1 - 10-3,
B-101
General Protection Fault (Interrupt 3),
(see Interrupt Handling)
General Registers, 2-7
HLT Instruction, 2-16, 3-29, 10-6, B-42
Hierarchy of
86, 186, 286 Instruction Sets,
2-25,2-27
Basic Instruction Set, 2-25, 2-27,
3-1 - 3-31
Extended Instruction Set, Chapter 4
Instruction Set Overview, 2-25, 2-27
System Control Register Set,
Chapter 4 - Chapter
10
1/0,2-23
IDlY Instruction, 2-25, 3-9, 9-3, B-43
IDT (Interrupt Descriptor Table),
9-1 - 9-9, 10-2, B-65
IDTR (Interrupt Descriptor Table
Register), 9-1,
10-1 - 10-3
IF (Interrupt Flag),
(see Flags)
IMUL Instruction, 3-8, B-44
IN Instruction, 2-23, 3-29, B-45
INC Instruction, 2-17, 3-7, B-46
INDEX Field, 6-4, 6-6, 6-10 - 6-12
Indexed Mode, 2-21, 2-22
Index, Pointer and Base Register,
2-9
Input/Output, 2-21, 2-22
Instructions, 3-29
Memory Mapped
I/O, 2-23
Restrictions
in Protected Mode, 3-28
Separate
I/O Space, 2-21
INS/INSB/INSW Instruction, 3-29,4-1
INT Instruction,
(see Interrupt Handling)
Integer,
(see Data Types)
Interrupt Handling, 2-24, 2-25,
5-3 - 5-7,
9-2 - 9-13
Interrupt Priorities, 5-4
Interrupt
0 Divide Error, 2-24, 3-9, 5-5,
5-6, 9-8, 9-9, 9-13
Interrupt 1 Single-Step, 5-6,
9-9, 9-13
Interrupt 2 Nonmaskable, 5-6,9-9,9-13
Interrupt 3 Breakpoint, 2-26,
5-6, 9-9
Interrupt 4 INTO Detected Overflow,
2-26, 5-6,
9-9
Interrupt 5 BOUND Range Exceeded,
2-26,4-7,5-6,5-7,9-9,9-13, B-22
Interrupt 6 Invalid Opcode, 2-26, 5-6,
9-9,9-10
Index-3
