Intel BLKDH55TC - Lift the Load Plate

Intel Desktop Board DH55TC Product Guide
32
3. Rotate the socket lever to lift the load plate away from the socket (Figure 7, A).
Make sure that the load plate is in the fully open position (Figure 7, B) while being
careful not to damage adjacent components
.

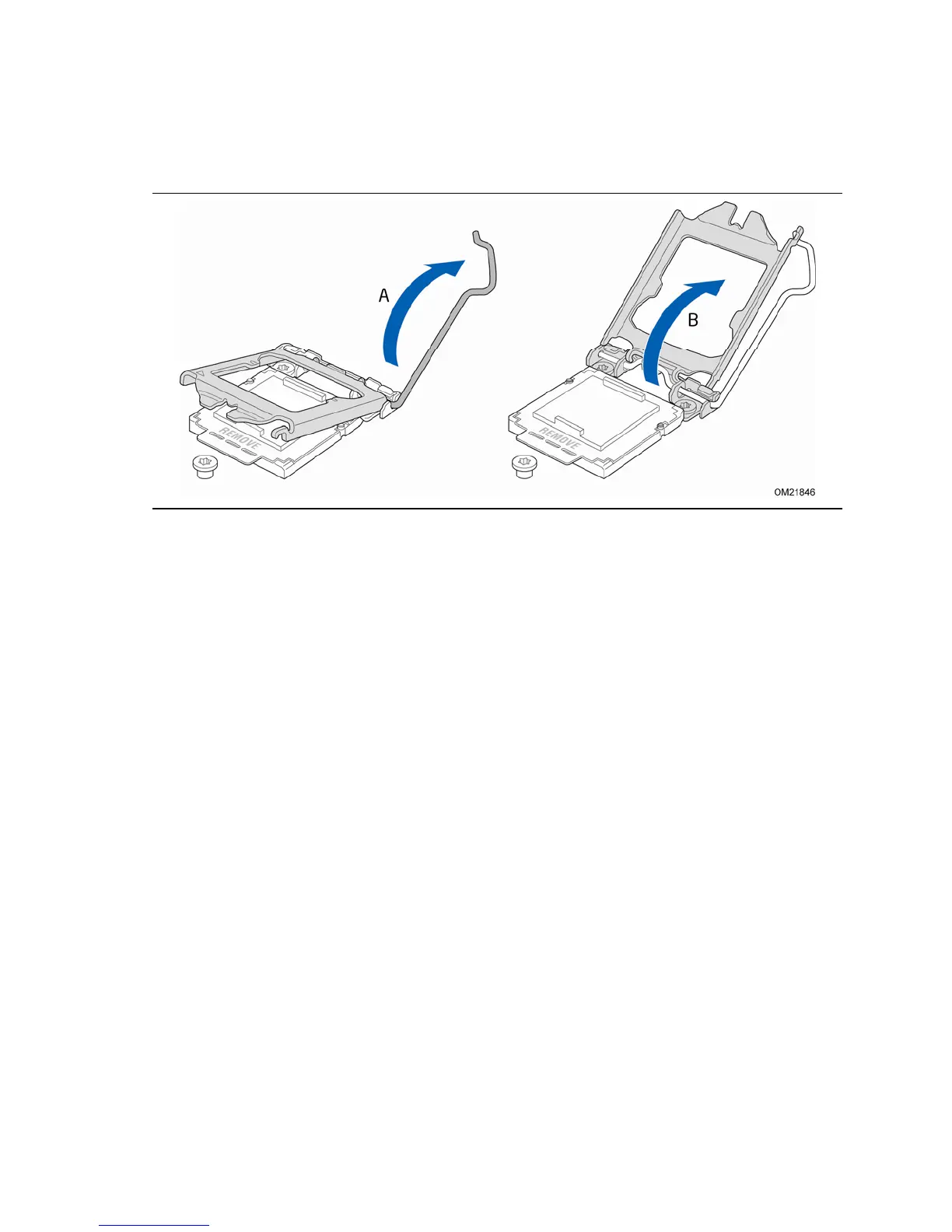

Figure 7. Lift the Load Plate
