Intel Desktop Board DH55TC Product Guide
42
4. Connect a monitor to the graphics card according to the manufacturer’s
instructions.

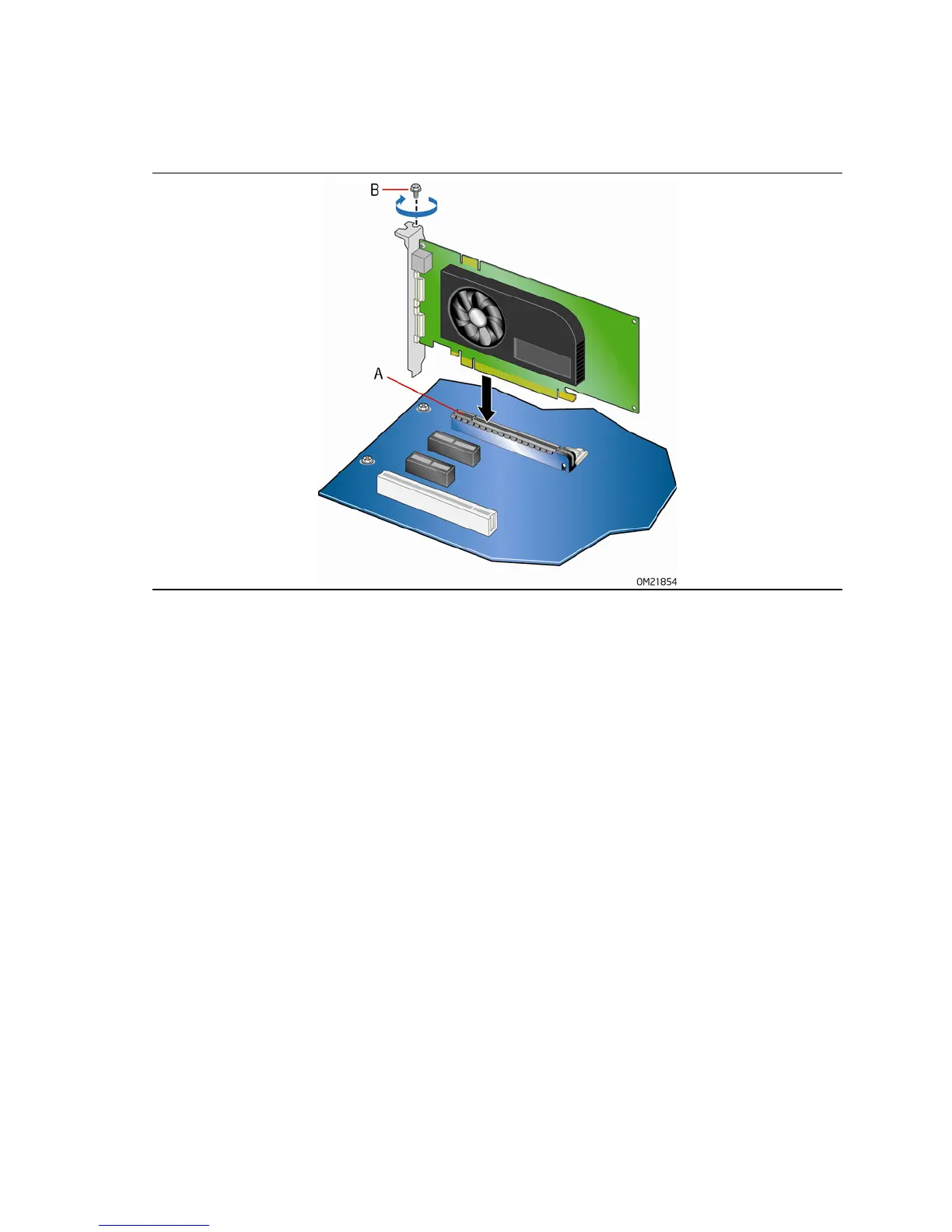

Figure 19. Installing a PCI Express x16 Graphics Card
Removing a PCI Express x16 Graphics Card
Follow these instructions to remove a PCI Express x16 graphics card from a connector:
1. Observe the precautions in "Before You Begin" on page 27.
2. Disconnect
the monitor cable from the graphics card back panel connector.
3. Remove the screw (Figure 20, A) that secures the card’s metal bracket to the
chassis back panel.
4. Push the card ejector le
ver down using the tip of a pencil or similar tool
(Figure 20, B) in the notch. This will release the card from the connector (C).
5. P
ull t
he card straight up to remove it.
