Installing and Replacing Desktop Board Components
45
Installing an Intel
®
Z-U130 USB Solid-State
Drive (or Compatible Device)
An Intel Z-U130 USB Solid-State Drive (or compatible device) can be installed on the
Desktop Board by using the onboard USB 2.0 header indicated in Figure 1, T. This
header provides support for the solid state drive.
T
o install an Intel Z-U130 USB Solid-State Drive (or compatible device) on the Desktop
Board, follow these steps:
1. Observe the precautions in "Before You Begin" on page 27.
2. Al
ign the co
nnector (Figure 22, A) on the bottom of the solid state drive with the
USB 2.0
header on the Desktop Board. The connectors are keyed and will mate
correctly when the solid state drive is oriented as shown in Figure 22.
3. Secure the
soli
d state drive to the Desktop Board with the screw (Figure 22, B)
included with the board.

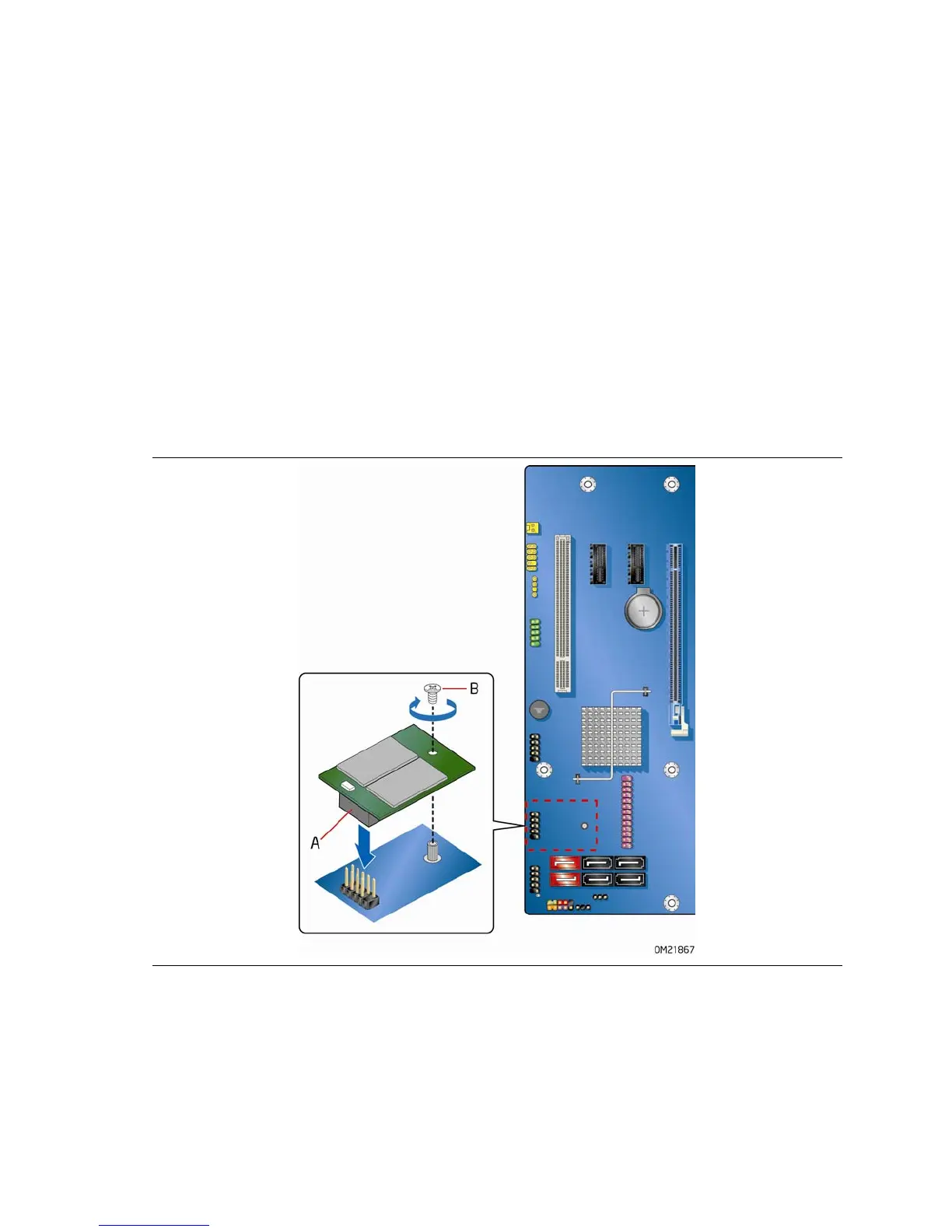

Figure 22. Installing an Intel Z-U130 USB Solid-State Drive
(or Compatible Device)
If not used with an Intel Z-U130 USB Solid-State Drive (or Compatible Device), this
USB header can be used as an additional dual-port front panel USB header.
