Desktop Board Features
The onboard audio headers include the following:
• Front panel audio (a 2 x 5 pin header that provides headphone and mic in signals
for front panel audio connectors)
• S/PDIF audio header (1 x 4 pin header)
Front panel headphone output is supported by a separate audio channel pair, allowing
multi-streaming audio configurations such as simultaneous surround sound playback
and stereo audio conferencing (through speakers connected to the back panel audio
connectors and a headset connected to the front panel audio connectors).
The onboard internal mono speaker header allows connection to an internal, low-
power speaker for basic system sound capability. The subsystem is capable of driving
a speaker load of 8 Ω at 1 W (rms) or 4 Ω at 1.5 W (rms).
The onboard S/PDIF header allows connection to coaxial or optical adapters for digital
audio output.
The back panel audio connectors are configurable through the audio device drivers.
Audio software and drivers are available from http://downloadcenter.intel.com/
.
LAN Subsystem
The LAN subsystem includes:
• Intel 82579V Gigabit (10/100/1000 Mb/s) Ethernet LAN controller
• RJ-45 LAN connector with integrated status LEDs
LAN software and drivers are available at http://downloadcenter.intel.com/
.
Two LEDs are built into the RJ-45 LAN connector located on the back panel
(see Figure 2). These LEDs indicate the status of the LAN as shown in Table 3.

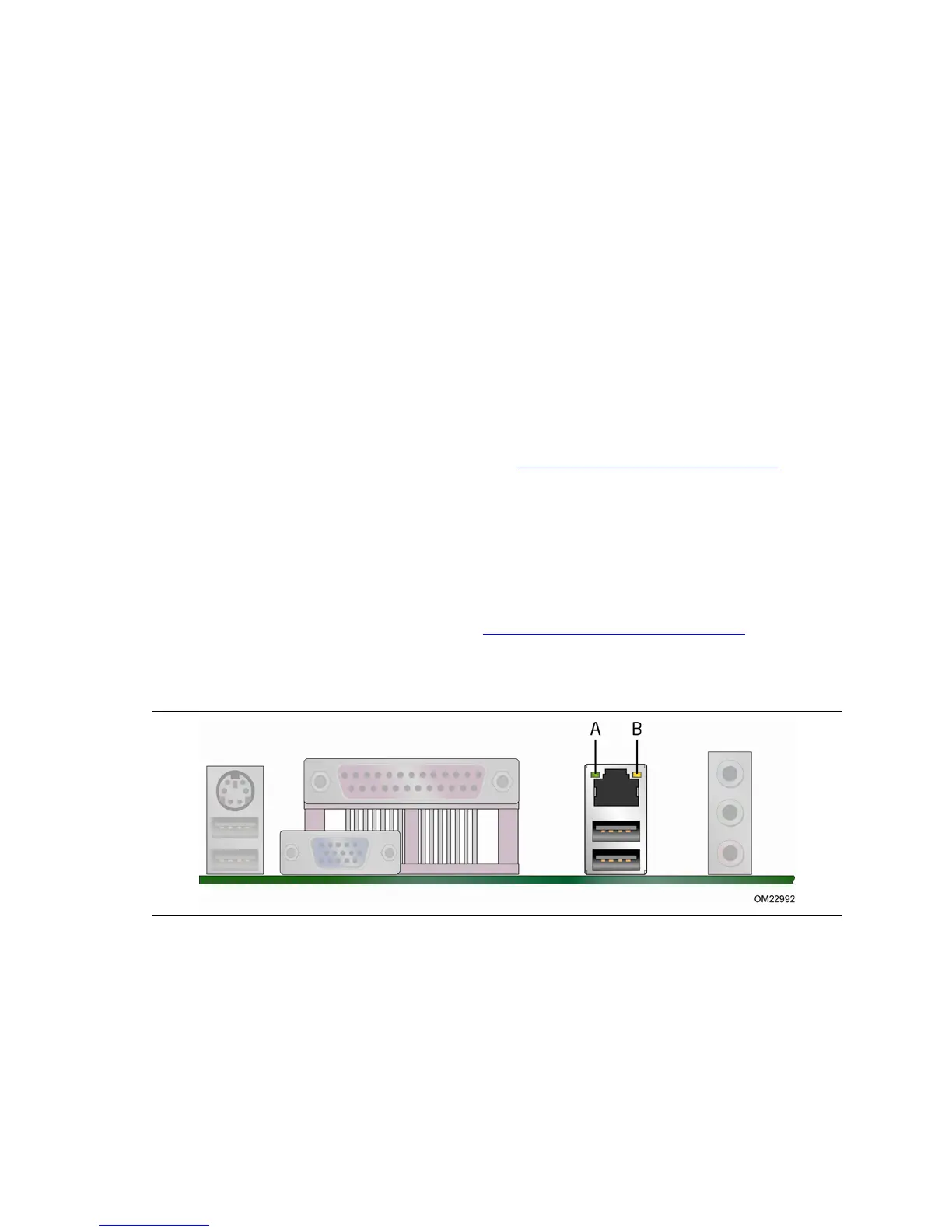

Figure 2. LAN Status LEDs
17
