Installing and Replacing Desktop Board Components
Connecting Chassis Fan and Power Supply
Cables
Connecting a Chassis Fan Cable
Connect chassis fan cables to the chassis fan header on the Desktop Board. Figure 20
shows the location of the chassis fan header.

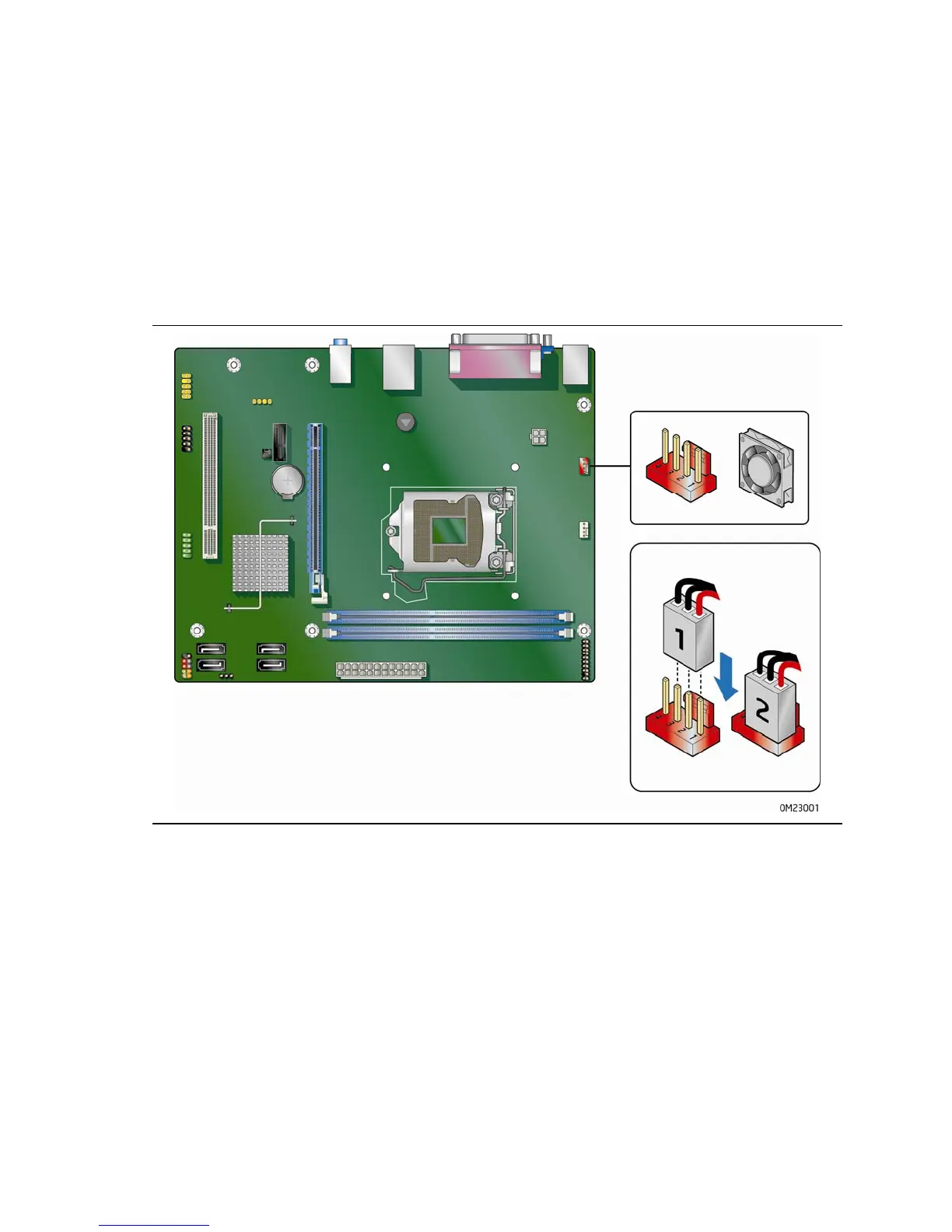

Figure 20. Location of the Chassis Fan Header
49
