Installing and Replacing Desktop Board Components
Setting the BIOS Configuration Jumper
NOTE
Always turn off the
power to the comp
uter
before moving the jumper. Moving the
jumper with the power on may result
in unreliable computer operation.

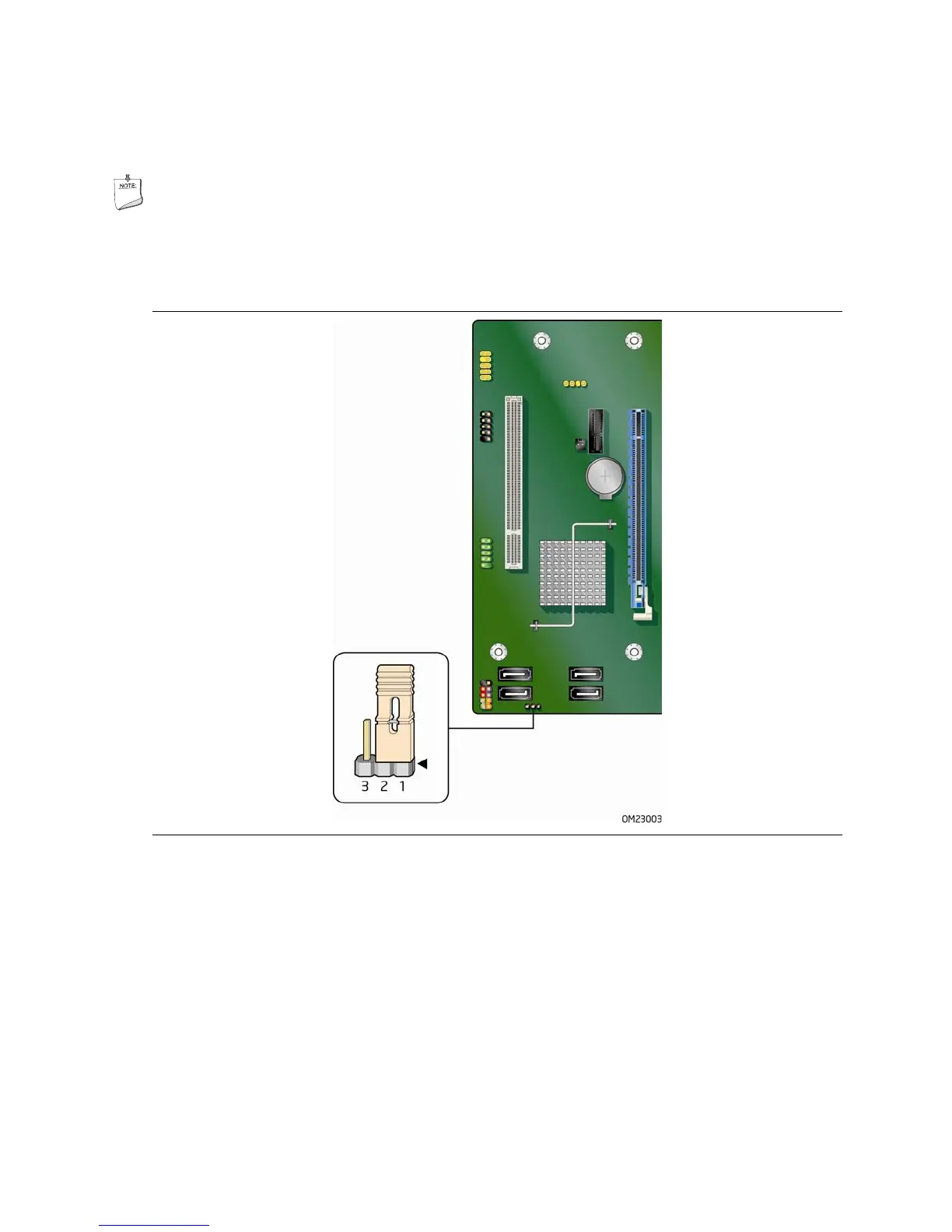

Figure 22
shows the location of the Desktop Boar
d’s BIOS confi
guration jumper block.
Figure 22. Location of t
he BIOS Configuration Jumper Block
51
50
52
