Intel Desktop Board DH61WW Product Guide
Connecting Serial ATA (SATA) Cables
SATA cables support the Serial ATA protocol. Each cable can be used to connect one
internal SATA drive to the Desktop Board. For correct cable function:
1. Observe the precautions in “Before You Begin” on page 27.
2. Attach one end of the SATA cable to one of the SATA connectors on the board
(Figure 17, A) and attach the other end of the cable to the SATA drive
(Figure 17, B).

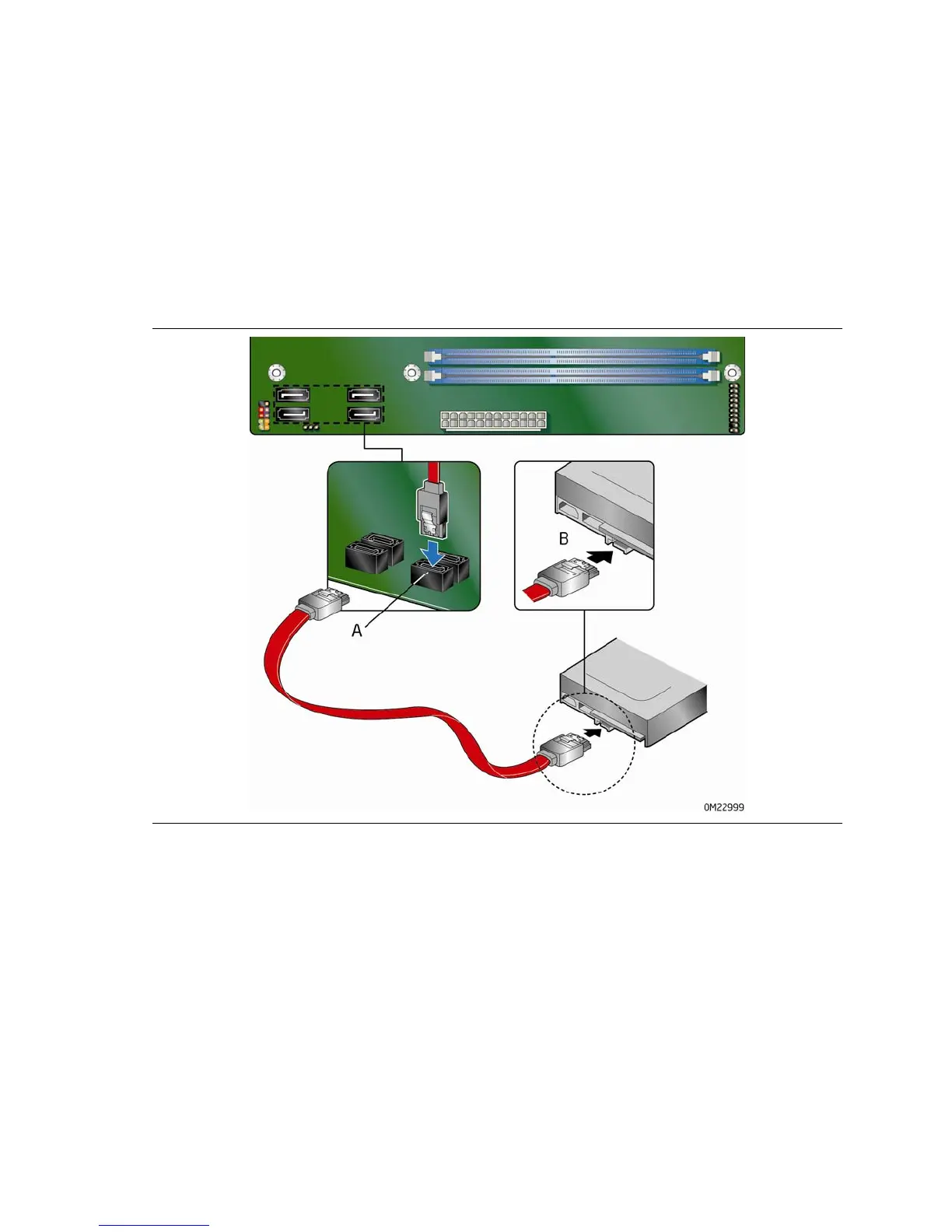

Figure 17. Connecting a Serial ATA Cable
42
