1.14 Thermal Monitoring

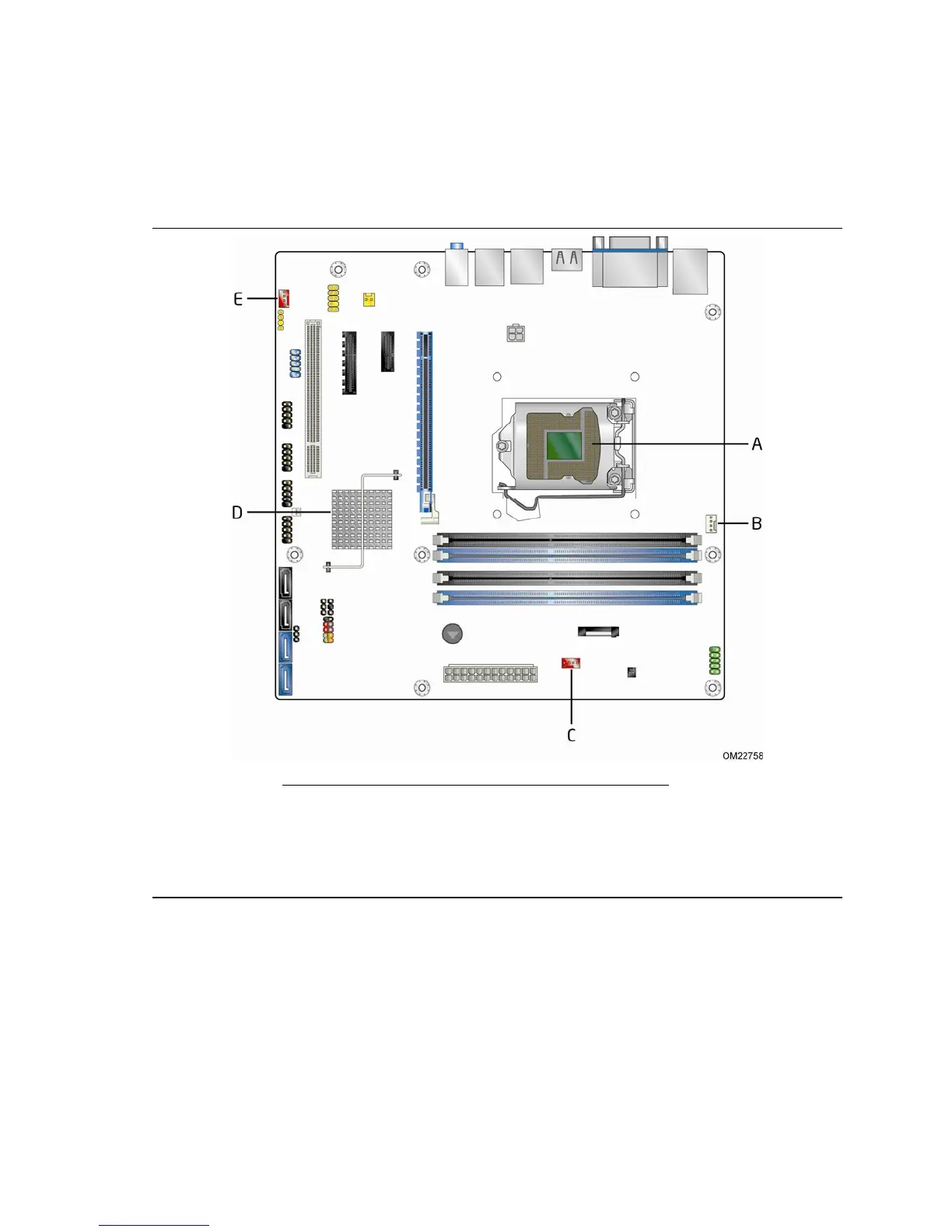

Figure 6 shows the locations of the thermal sensors and fan headers.
Item Description
A Thermal diode, located on processor die
B Processor fan header
C Front chassis fan header
D Thermal diode, located on the Intel Q67 PCH
E Rear chassis fan header
Figure 6. Thermal Sensors and Fan Headers
