Intel BLKDQ67SW - Board Layout; Major Board Components

Product Description
11
1.1.2 Board Layout
Figure 1 shows the location of the major components on Intel Desktop Board
DQ67SW.

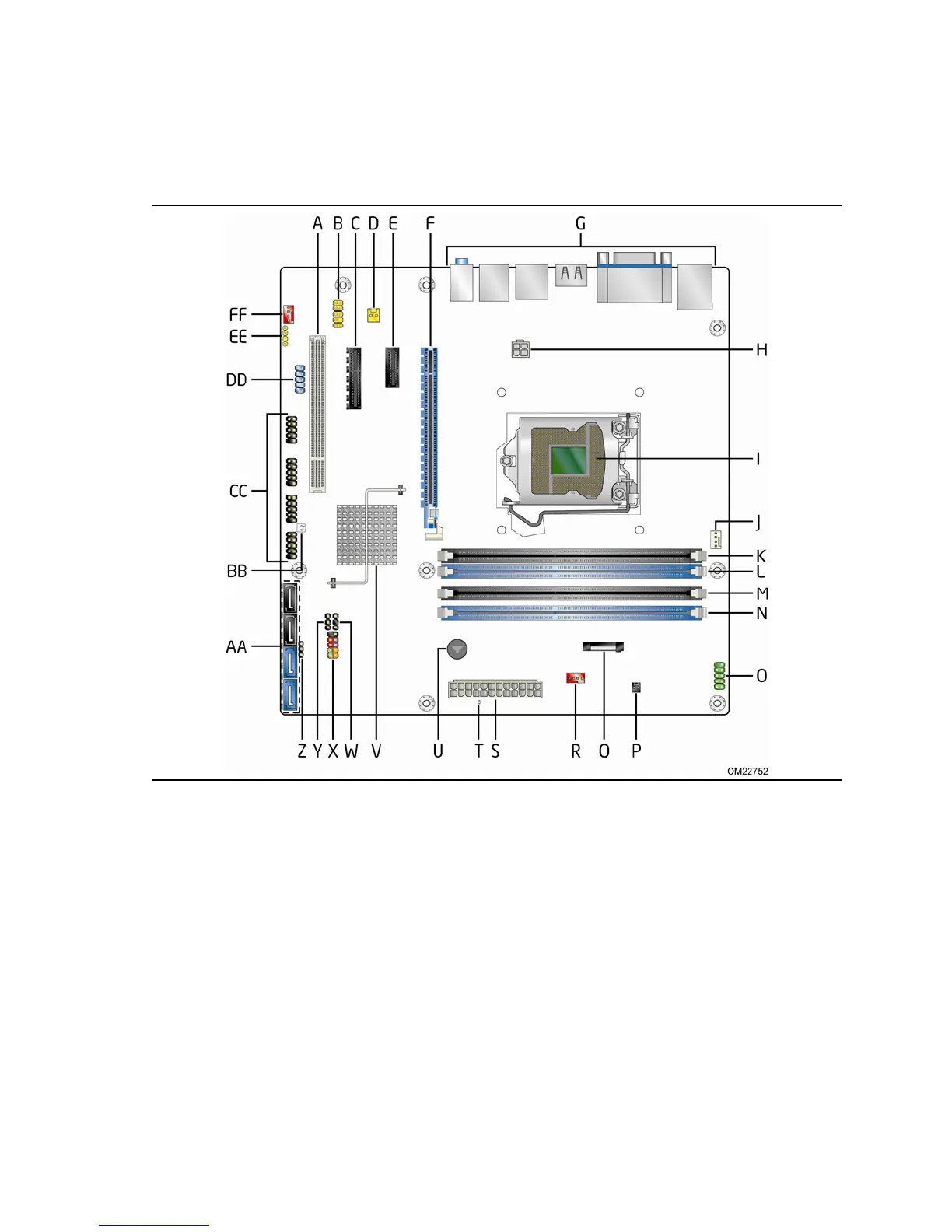

Figure 1. Major Board Components
Table 2 lists the components identified in Figure 1.
