Intel Desktop Board DQ67SW Technical Product Specification
44
2.2.1 Back Panel Connectors
Figure 9 shows the location of the back panel connectors for the board.
Item Description
A LAN
B USB 3.0 ports
C DVI-I connector
D DVI-D connector
E DisplayPort connector
F USB ports
G eSATA ports
H IEEE 1394a connector
I USB ports
J Audio line in
K Audio line out
L Mic in

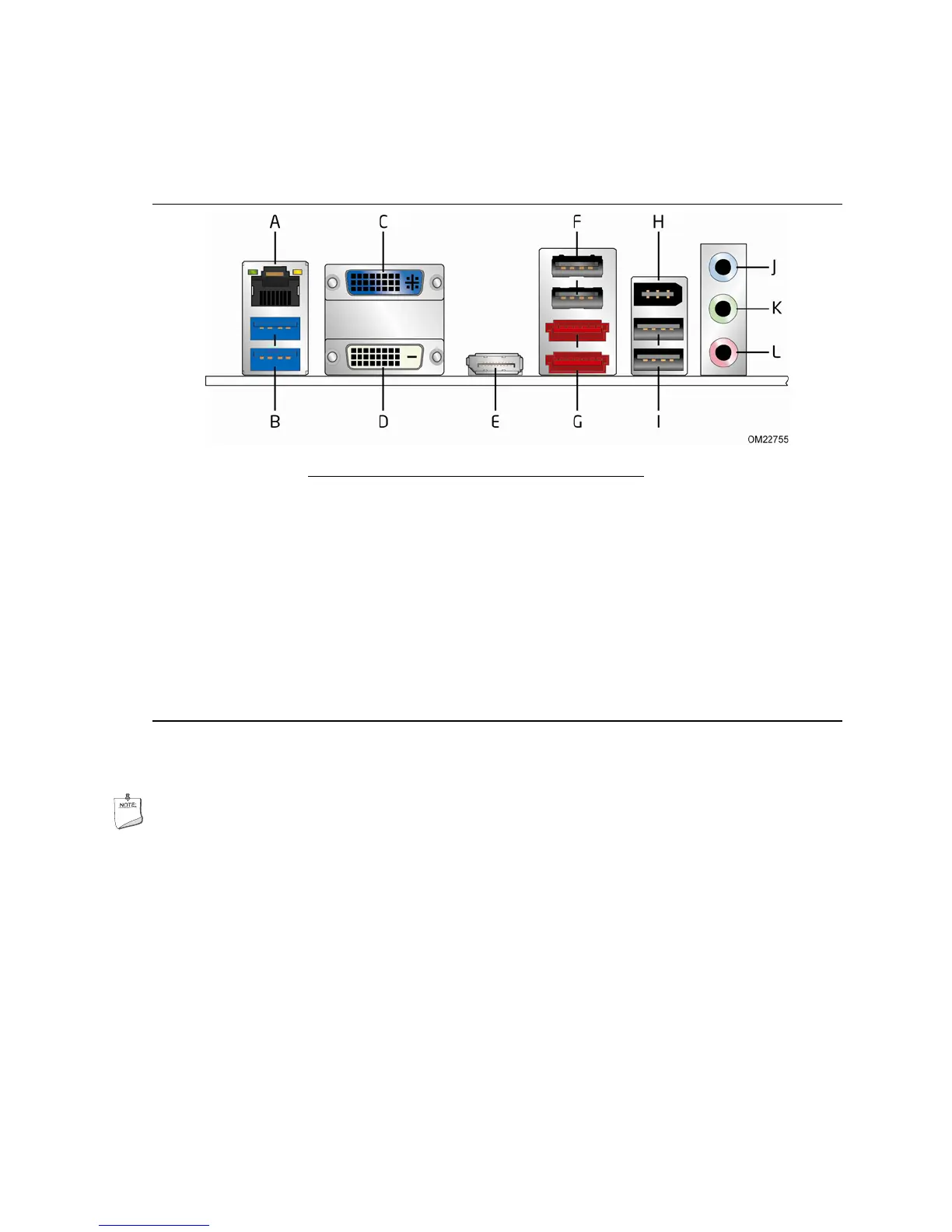

Figure 9. Back Panel Connectors
NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.
