Installing and Replacing Desktop Board Components
39
Installing a Processor Fan Heat Sink
The LGA2011 processor socket has four threaded holes for mounting a processor fan
heat sink. Figure 14 shows installation of a typical processor fan heat sink; yours may
di
ffer. For detailed instructions on attaching a processor fan heat sink to the Desktop
Board, refer to the Intel boxed processor manual, Intel boxed thermal solution
manual, or instructions third-party thermal solution providers.
Connect the processor fan heat sink cable to the 4-pin processor fan header (see
Figure 14). A fan with a 4-pi
n connector as shown in Figure 14 is recommended;
however, fans with a 3-pin connectors can be used. However, since a 3-wire fan
cannot use the onboard fan control, the fan will always operate at full speed.

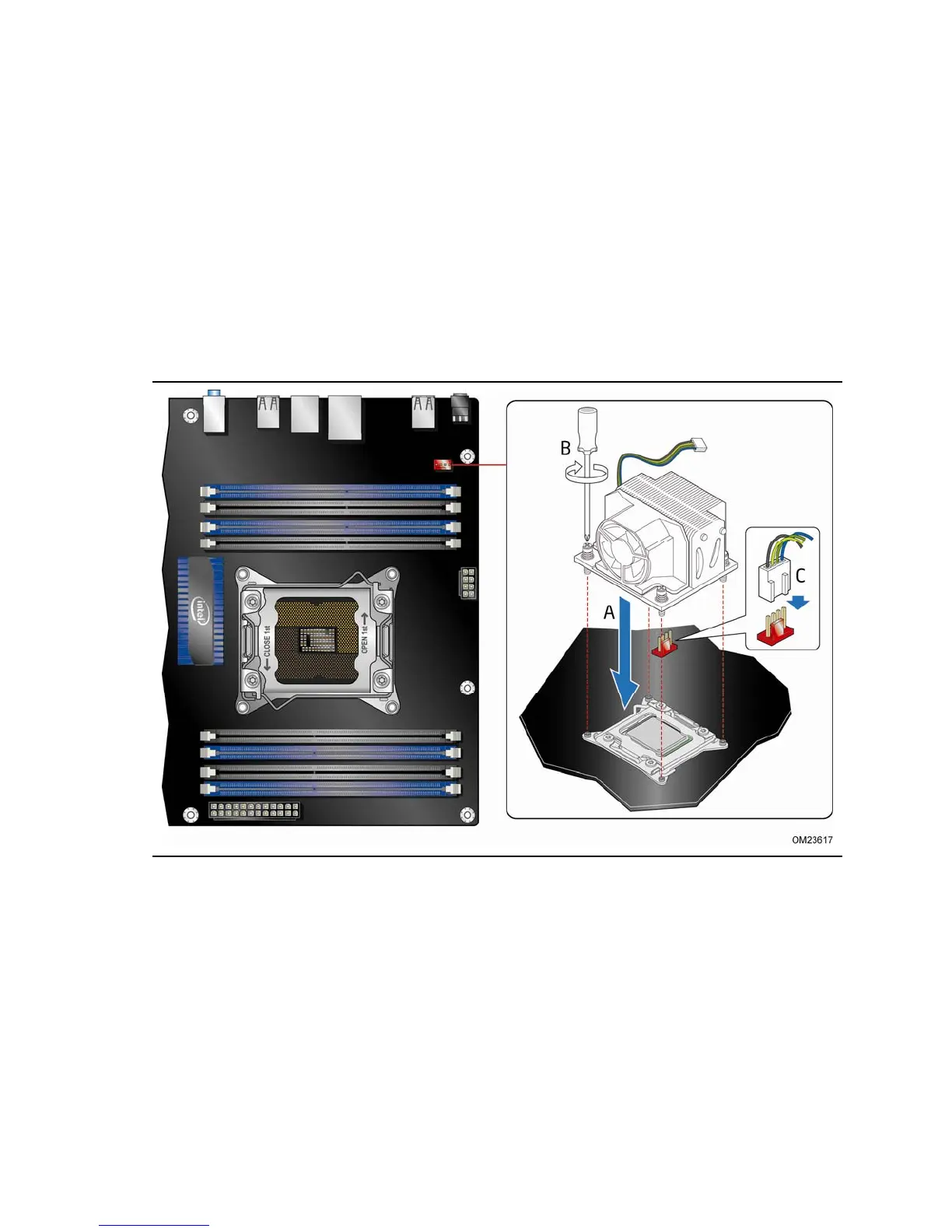

Figure 14. Installing a Fan Heat Sink and Connecting the Cable to the
Processor Fan Header
