Intel BLKDX79TO - Connecting to the Internal Headers and Connectors; Internal Headers

Installing and Replacing Desktop Board Components
47
Connecting to the Internal Headers and
Connectors
Before connecting cables to any of the internal headers or connectors, observe the
precautions in “Before You Begin” on page 31. Figure 20 shows the location of the
internal headers on I
ntel Desktop Board DX79TO.

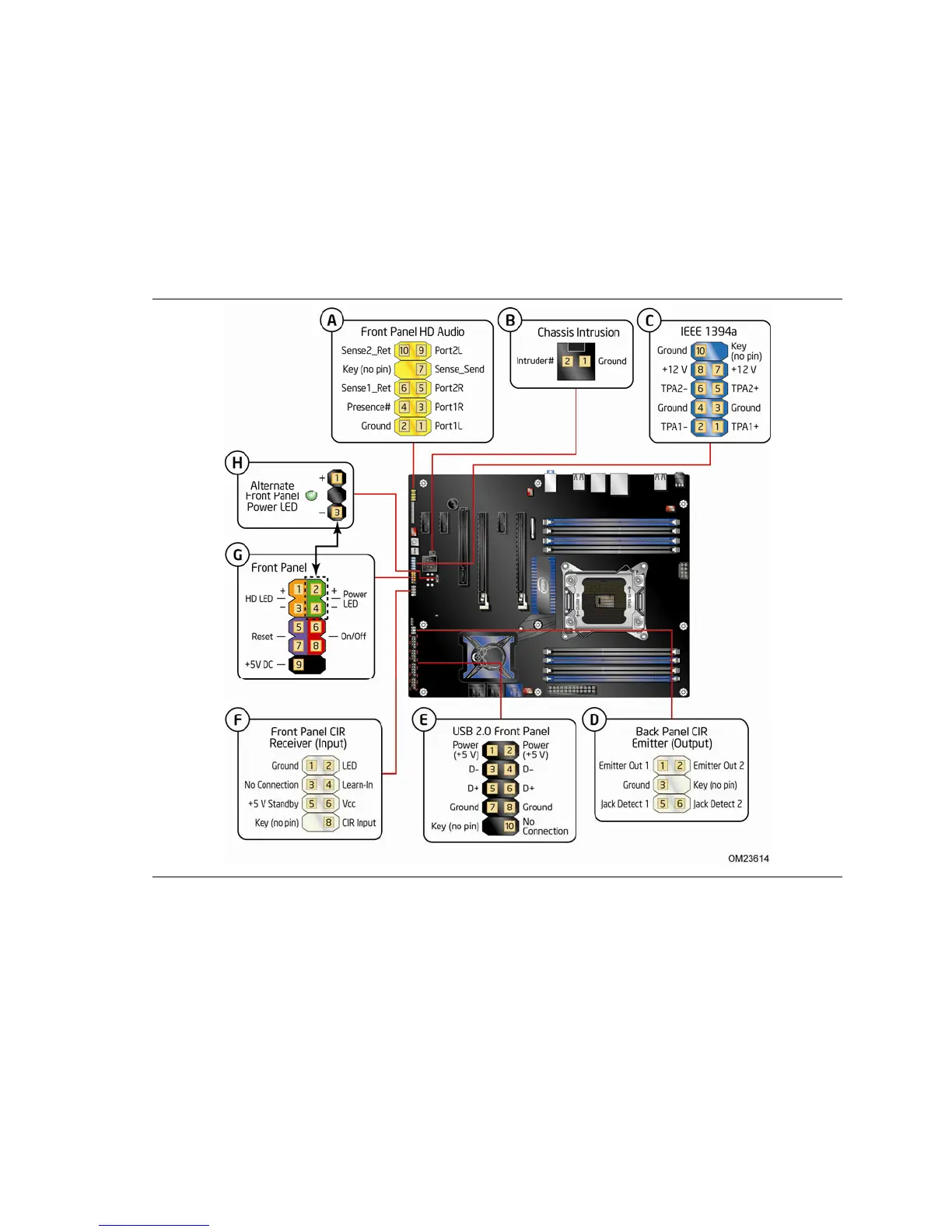

Figure 20. Internal Headers
