13

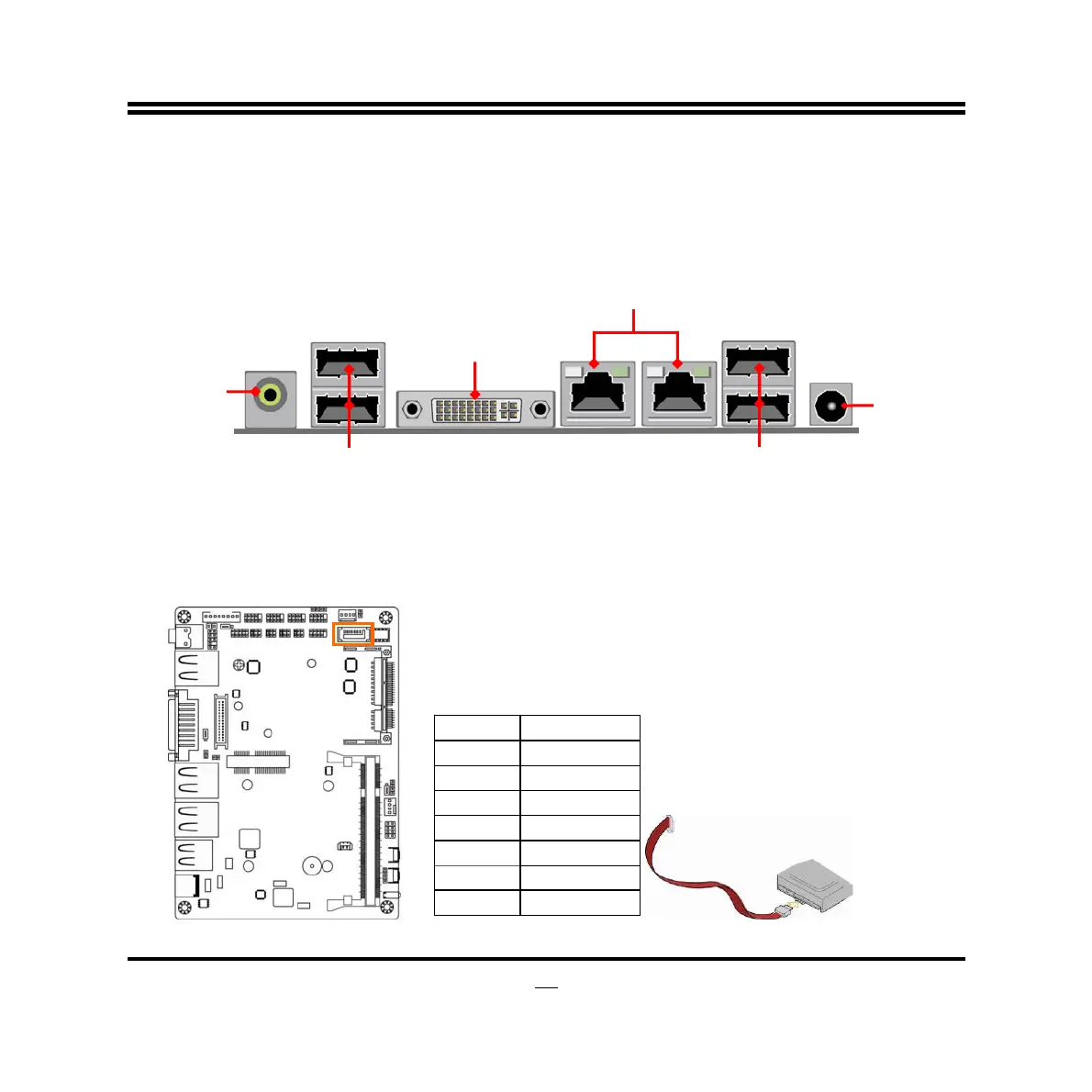

2-2 Connectors and Headers
2-2-1 Connectors
(1) Rear I/O Connectors
(2) SATAIII Port connector: SATA1
SATA1 port is a high-speed SATAIII port that supports 6 GB/s transfer rate.
Pin No. Definition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
DC12V
Power-in
Connector
Line-Out Port
USB 2.0 Ports
RJ-45 LAN Ports
DVI-I Port
USB 2.0 Ports
