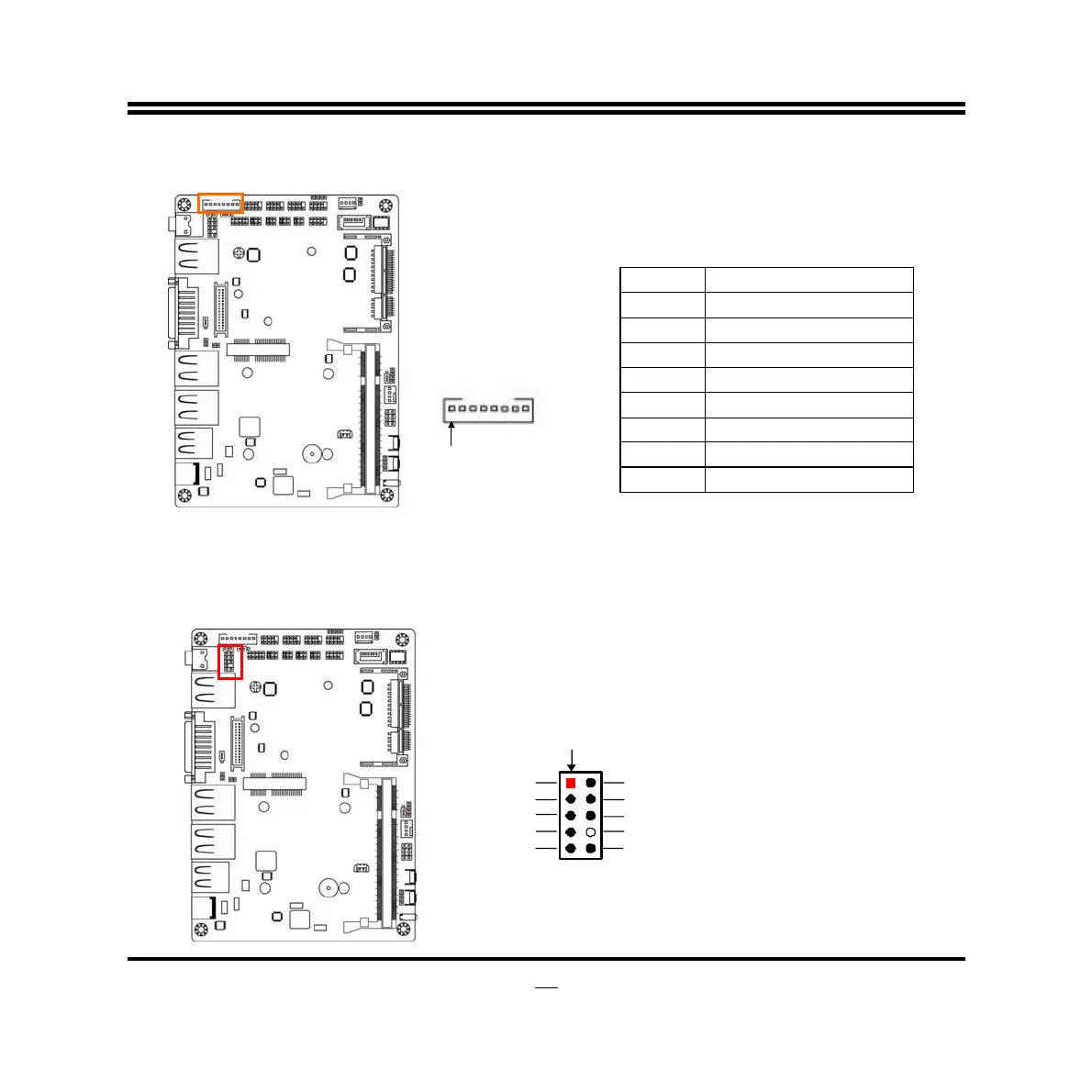

(5) INVERTER (8-pin): LVDS Inverter Connector
Pin 1
INVERTER1
Pin No. Definition
1 Backlight Enable
2 Backlight PWM
3 PVCC
4 PVCC
5 GND
6 GND
7 Backlight Up SW
8 Backlight Down SW
2-2-2 Headers
(1) AUDIO1 (9-pin): Line-Out, MIC-In Header
This header connects to Front Panel Line-out, MIC-In connector with cable.
Line-Out, MIC Header
Pin 1
2
MIC-R
MIC-L
Lineout-R
Lineout-L
GND
NC
NC
KEY
NC
NC
