Intel D2550MUD2 Product Guide

Intel Desktop Board D2550MUD2 Product Guide
28
Installing the I/O Shield
The Desktop Board comes with an I/O shield. When installed in the chassis, the shield
blocks radio frequency transmissions, protects internal components from dust and
foreign objects, and promotes correct airflow within the chassis.
Install the I/O shield before installing the Desktop Board in the chassis. Place the
shield inside the chassis as shown in Figure 6. Press the shield into place so that it fits
tightly and securely. If the shield does not fit, obtain a properly-sized shield from the
chassis supplier.

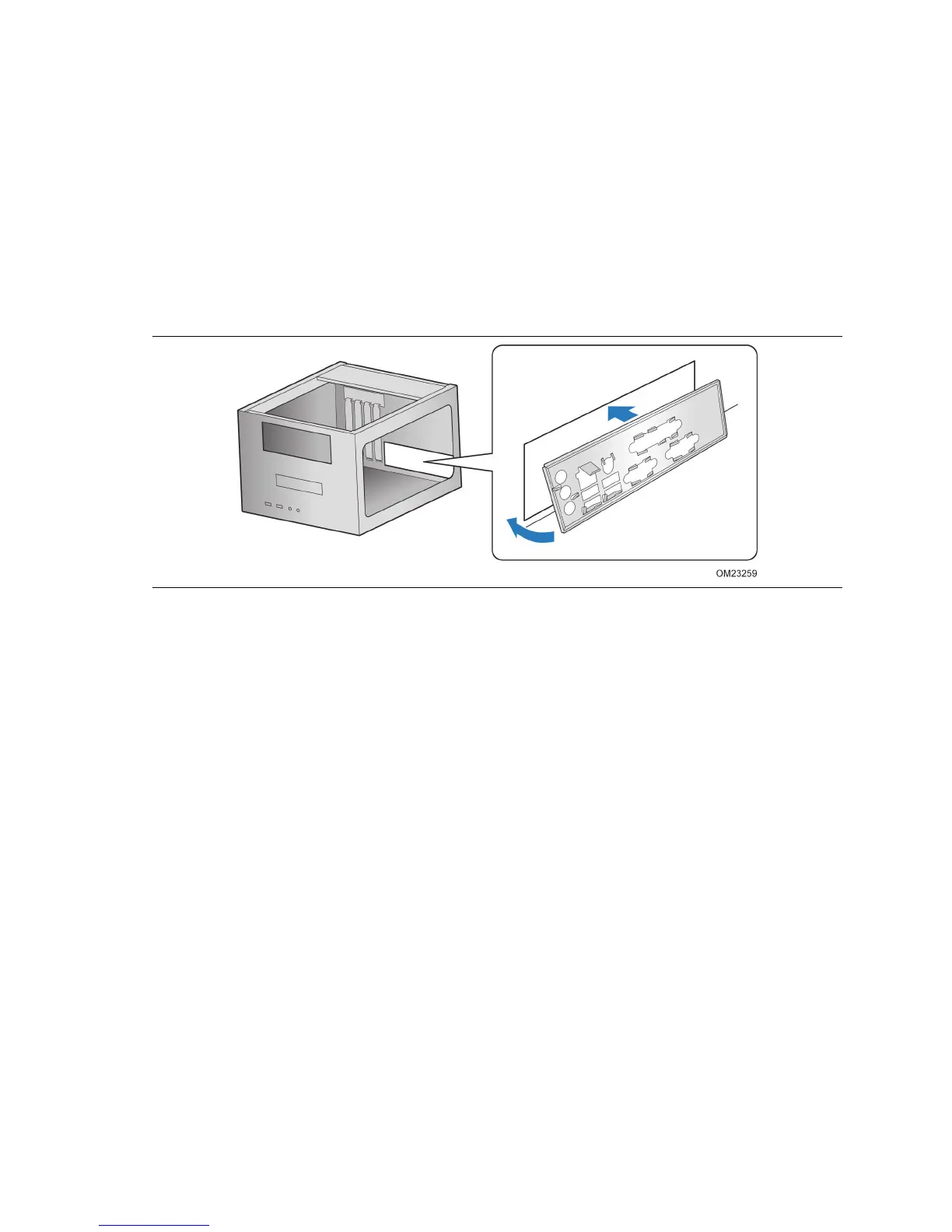

Figure 6. Installing the I/O Shield

Intel D2550MUD2 Specifications

General

Brand	Intel
Model	D2550MUD2
Category	Motherboard
Language	English
