Intel Desktop Board D2550MUD2 Product Guide
40
Connecting a System Fan
Figure 13 shows the location of the system fan header. Connect the system fan cable
to this header.

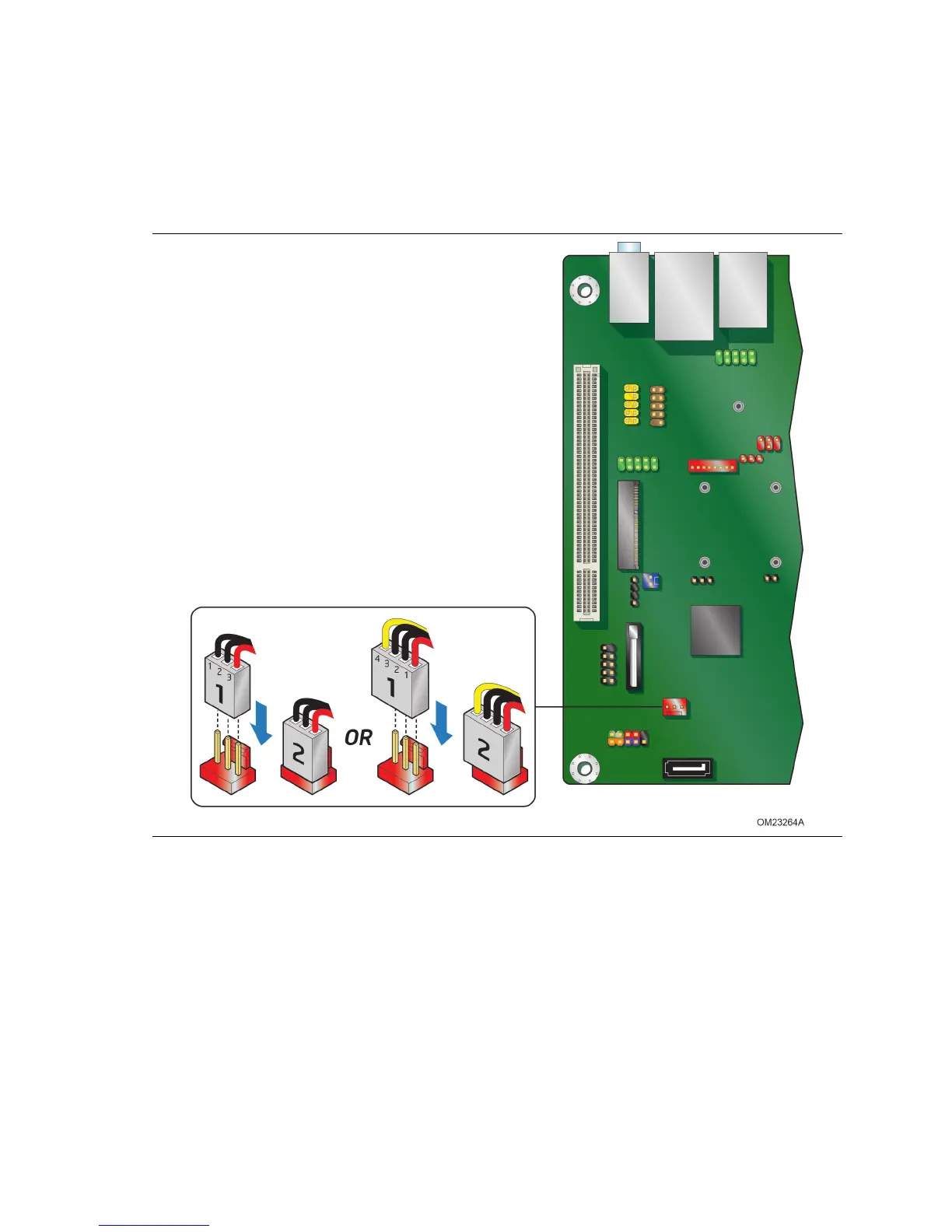

Figure 13. Location of the System Fan Header
