Intel Desktop Board D2550MUD2 Product Guide
42
Setting the BIOS Configuration Jumper
NOTE
Always turn off the power and unplug the power cord from the computer before
changing the jumper. Moving the jumper with the power on may result in unreliable
computer operation.

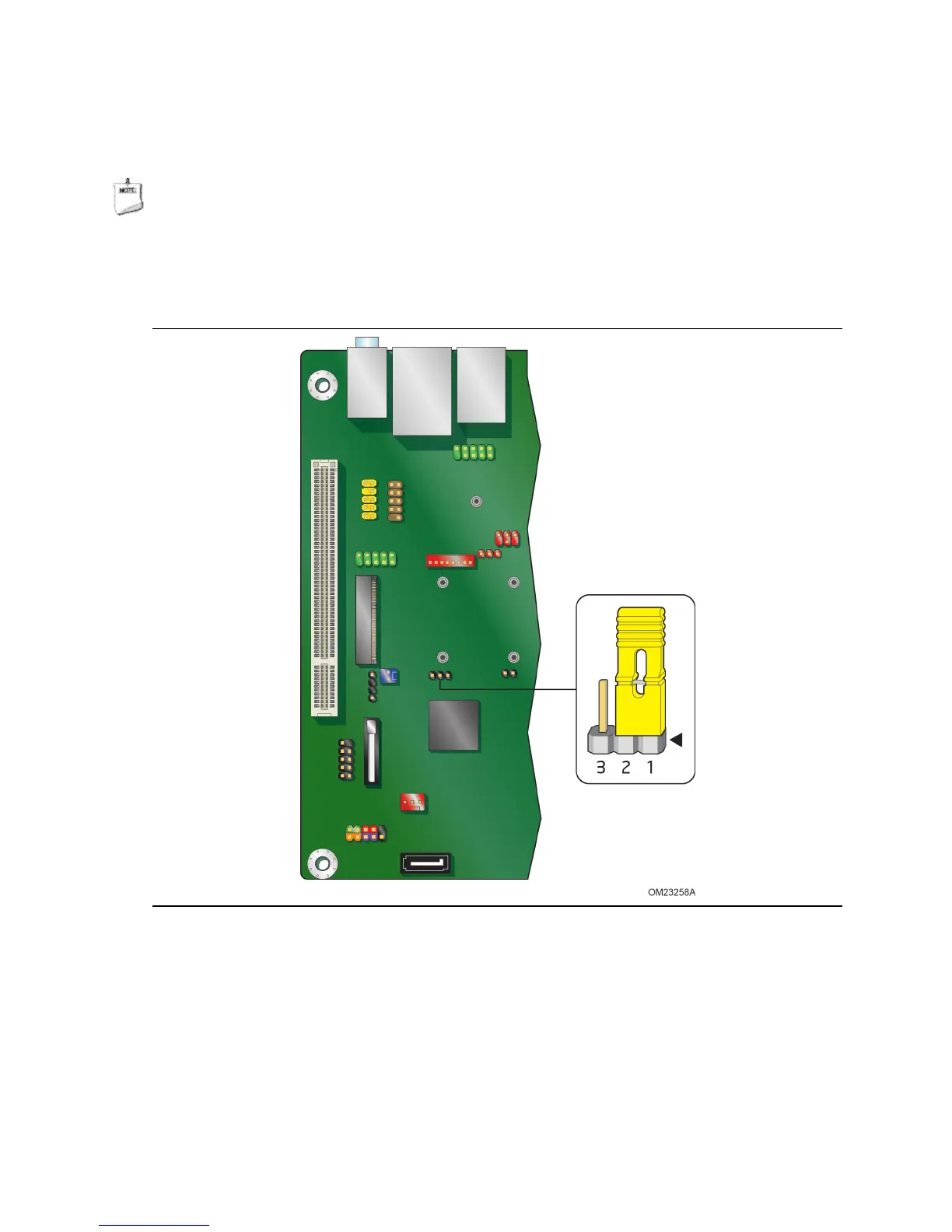

Figure 15 shows the location of the Desktop Board’s BIOS configuration jumper block.
Figure 15. BIOS Configuration Jumper Block
The three-pin BIOS configuration jumper block enables board operating modes.
Table 15 shows the jumper settings for each of the available modes.
