2.2.1.2 I/O Shield
The I/O shield provided with the board allows access to all back panel connectors and
is compatible with standard mini-ITX and microATX chassis. As an added benefit for
system configurations with wireless PCI Express Mini Card solutions, the I/O shield also
provides pre-cut holes for user installation of up to two external wireless antennas.
Figure 9 shows an I/O shield reference diagram.

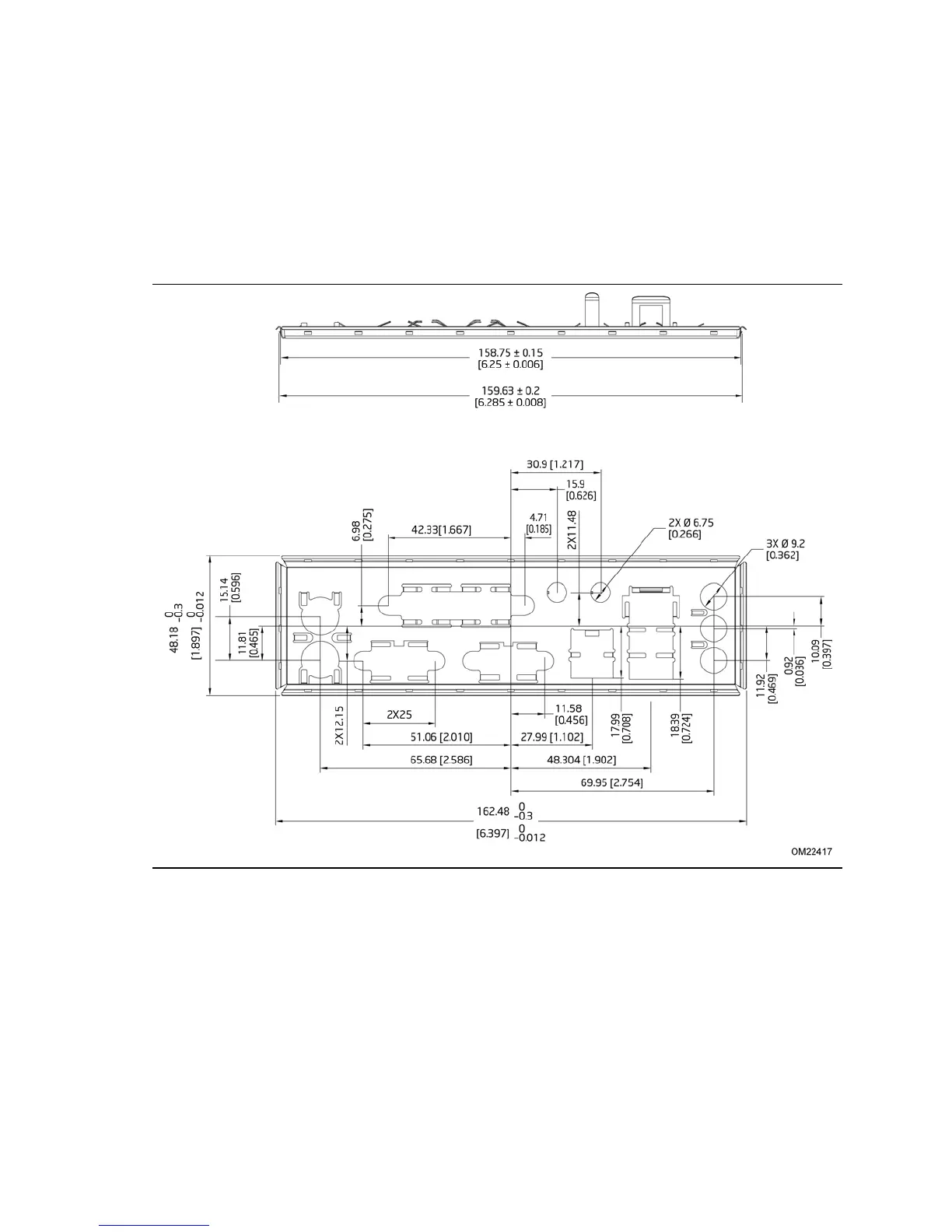

Figure 9. I/O Shield Reference Diagram
