Technical Reference
41
2.2.2 Component-side Connectors and Headers

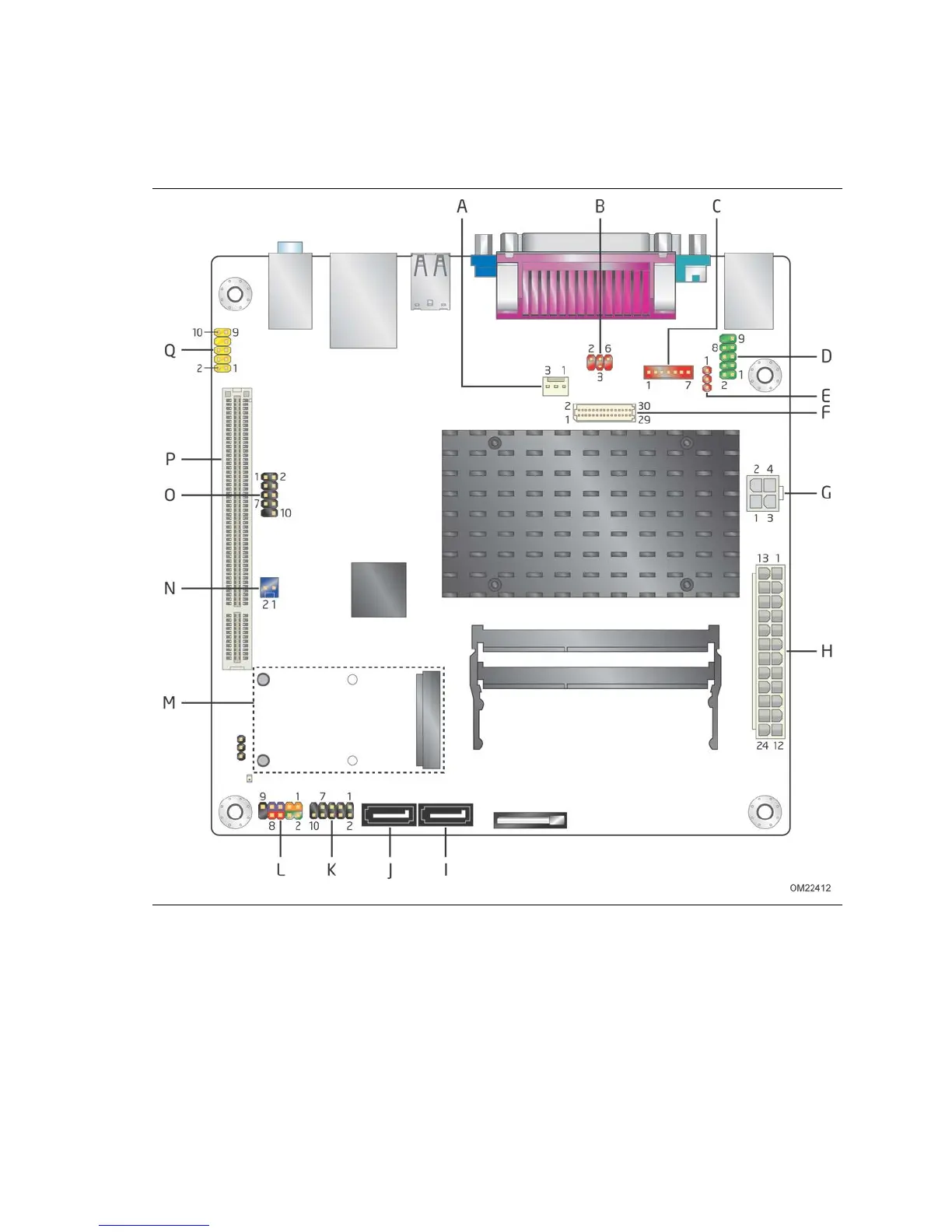

Figure 10 shows the locations of the component-side connectors and headers.
Figure 10. Component-side Connectors and Headers
