Intel Desktop Board D425KT and Intel Desktop Board D425KTW Technical Product
Specification
50
2.2.2.5 Front Panel USB Headers
Figure 12 and Figure 13 are connection diagrams for the front panel USB headers.
NOTE
• The +5 VDC power on the USB headers is fused.
• Use only a front panel USB connector that conforms to the USB 2.0 specification for
high-speed USB devices.

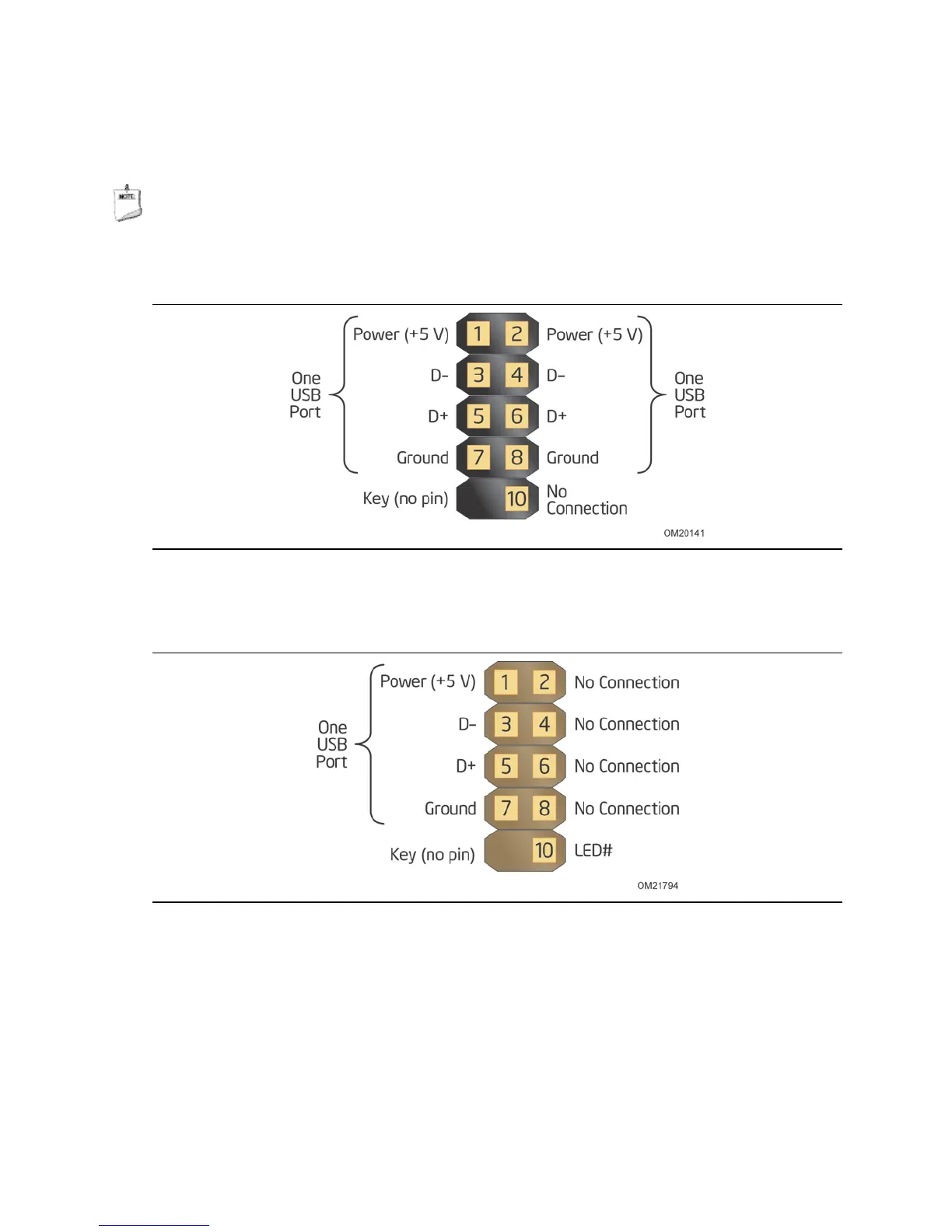

Figure 12. Connection Diagram for Front Panel USB Header
Figure 13. Connection Diagram for Front Panel USB Header
with Intel Z-U130 USB Solid-State Drive or Compatible Device Support
(D425KTW only)
