Intel D54250WYK User Manual

Intel NUC Board D54250WYB and Intel NUC Board D34010WYB
Technical Product Specification
38
This section describes the board’s connectors and headers. The connectors and
headers can be divided into these groups:
• Front panel I/O connectors
• Back panel I/O connectors
• On-board I/O connectors and headers (see pages 39 and 40)
2.2.1 Front Panel Connectors

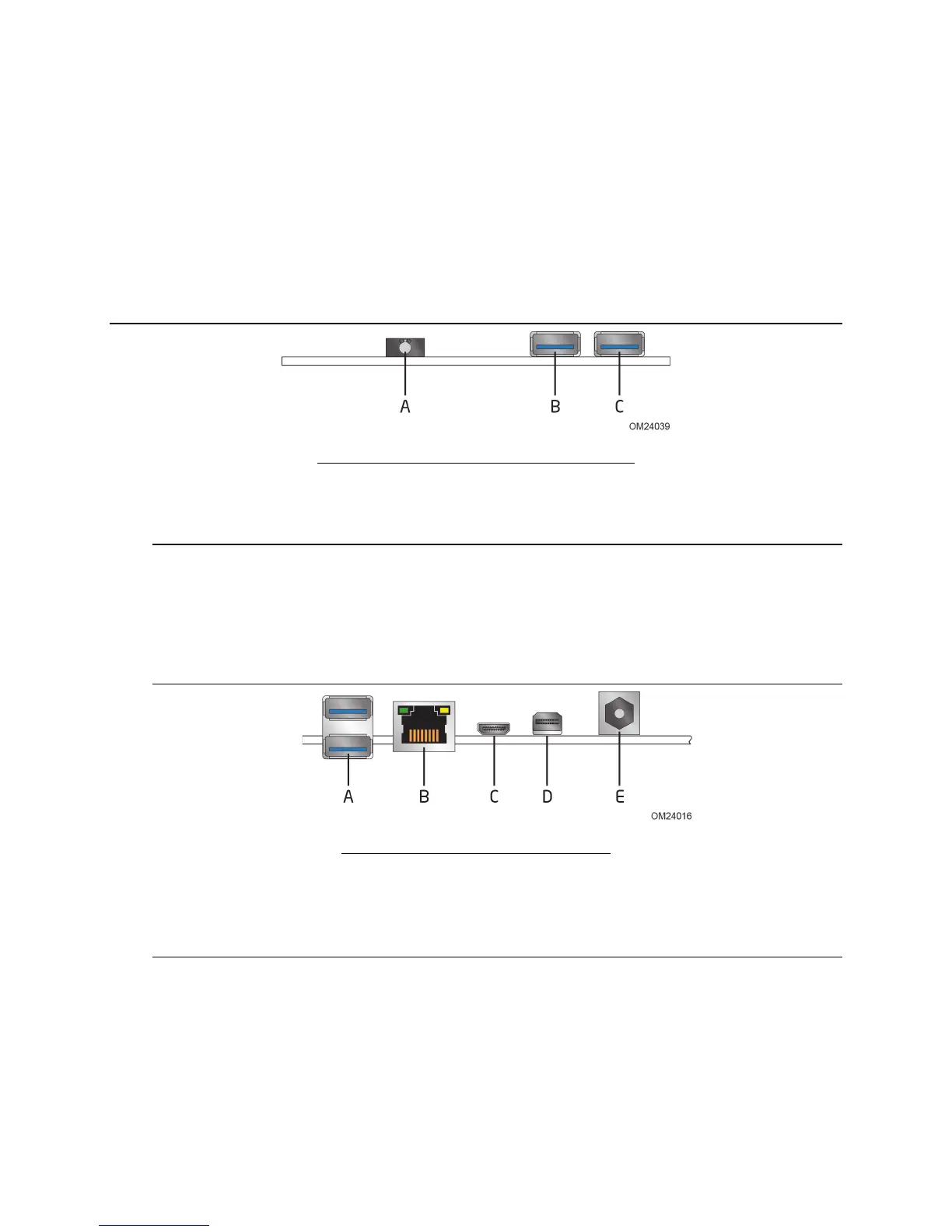

Figure 8 shows the location of the front panel connectors for the board.
Item Description
A
Front panel stereo microphone/
headphone jack
B
USB 3.0 port
C
USB 3.0 port
Figure 9. Front Panel Connectors
2.2.2 Back Panel Connectors
Figure 9 shows the location of the back panel connectors for the board.
Item
Description
A
USB 3.0 ports
B
LAN
C
Mini HDMI connector
D
Mini DisplayPort connector
E
12-19 V DC input jack
Figure 10. Back Panel Connectors

Intel D54250WYK Specifications

General

Socket	Soldered-down BGA
Number of Internal Drives Supported	2
TDP	15 W
Intel® vPro™ Technology	No
Intel® Visual BIOS	Yes
Intel® Boot Agent	Yes
Number of SATA Ports	2
Number of USB Ports	8
Integrated Bluetooth	Yes
Consumer Infrared Rx Sensor	Yes
HDMI Port Quantity	1
Mini DisplayPort Quantity	1
Number of Displays Supported	3
Total Memory Size	16 GB
Number of Memory Channels	2
Max Memory Bandwidth	25.6 GB/s
Number of DIMMs	2
ECC Memory Supported	No
Supported Operating Systems	Windows 8.1, Windows 8, Windows 7
Board Form Factor	UCFF
Internal Drive Form Factor	2.5" SSD or HDD
DC Input Voltage Supported	12-19 V
Processor Included	Intel Core i5-4250U
RAID Configuration	No
USB Revision	USB 3.0
Integrated Wireless	Intel Dual Band Wireless-AC 7260
Memory Types	DDR3L 1333/1600 1.35V SO-DIMM
Integrated LAN	Gigabit Ethernet
