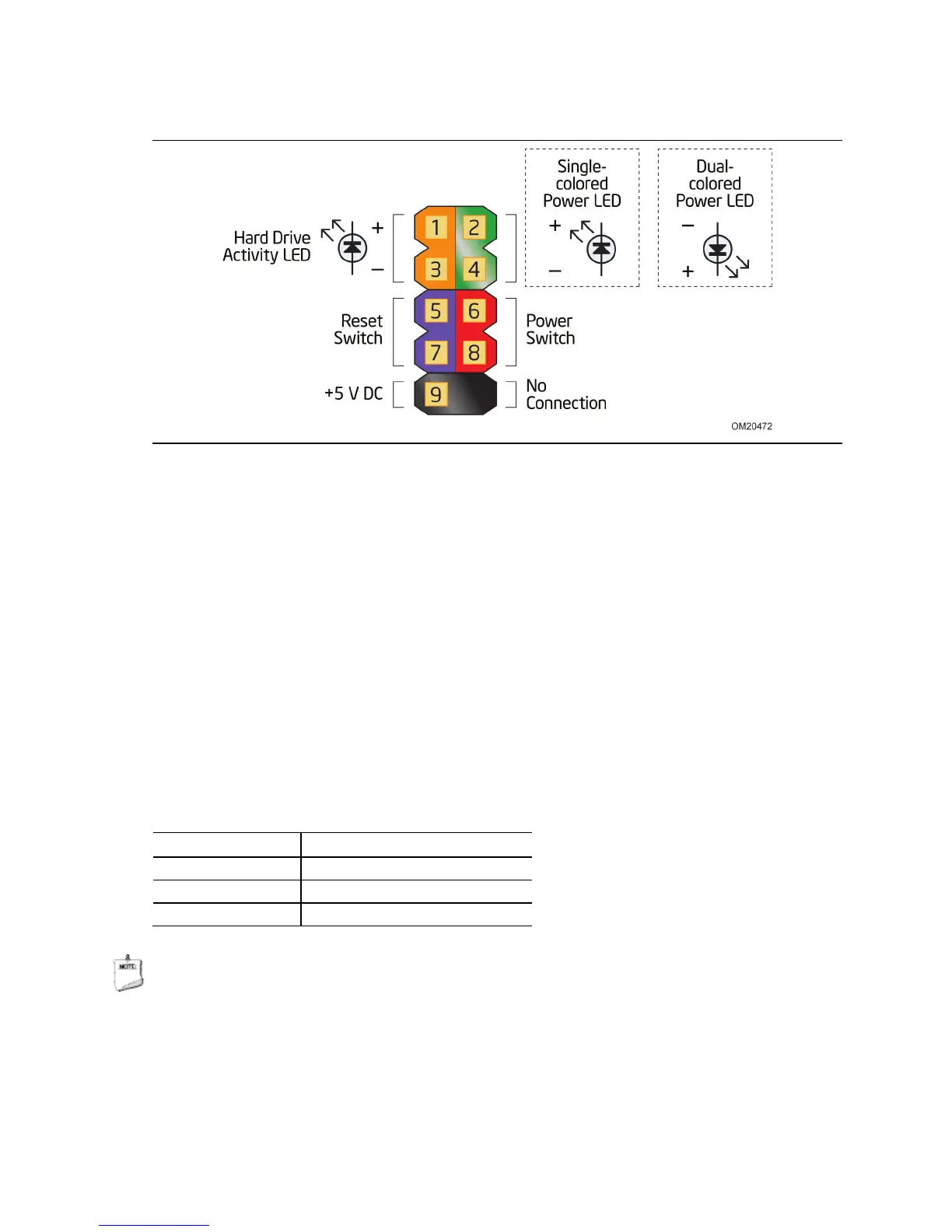

Figure 13. Connection Diagram for Front Panel Header (2.0 mm Pitch)
2.2.4.4.1 Hard Drive Activity LED Header
Pins 1 and 3 can be connected to an LED to provide a visual indicator that data is
being read from or written to a hard drive. Proper LED function requires a SATA hard
drive or optical drive connected to an onboard SATA connector.
2.2.4.4.2 Reset Switch Header
Pins 5 and 7 can be connected to a momentary single pole, single throw (SPST) type
switch that is normally open. When the switch is closed, the board resets and runs the
POST.
2.2.4.4.3 Power/Sleep LED Header
Pins 2 and 4 can be connected to a one- or two-color LED. Table 21 shows the
possible LED states.
Table 21. States for a One-Color Power LED
LED State Description
Off Power off
Blinking Standby
Steady Normal operation
NOTE
The LED behavior shown in Table 21 is default – other patterns may be set via BIOS
setup.

Intel D54250WYK Specifications

General

Socket	Soldered-down BGA
Number of Internal Drives Supported	2
TDP	15 W
Intel® vPro™ Technology	No
Intel® Visual BIOS	Yes
Intel® Boot Agent	Yes
Number of SATA Ports	2
Number of USB Ports	8
Integrated Bluetooth	Yes
Consumer Infrared Rx Sensor	Yes
HDMI Port Quantity	1
Mini DisplayPort Quantity	1
Number of Displays Supported	3
Total Memory Size	16 GB
Number of Memory Channels	2
Max Memory Bandwidth	25.6 GB/s
Number of DIMMs	2
ECC Memory Supported	No
Supported Operating Systems	Windows 8.1, Windows 8, Windows 7
Board Form Factor	UCFF
Internal Drive Form Factor	2.5" SSD or HDD
DC Input Voltage Supported	12-19 V
Processor Included	Intel Core i5-4250U
RAID Configuration	No
USB Revision	USB 3.0
Integrated Wireless	Intel Dual Band Wireless-AC 7260
Memory Types	DDR3L 1333/1600 1.35V SO-DIMM
Integrated LAN	Gigabit Ethernet
